Pevný čítač čiarových kódov Datalogic GFS4520-BK-RED 2D USB čierny

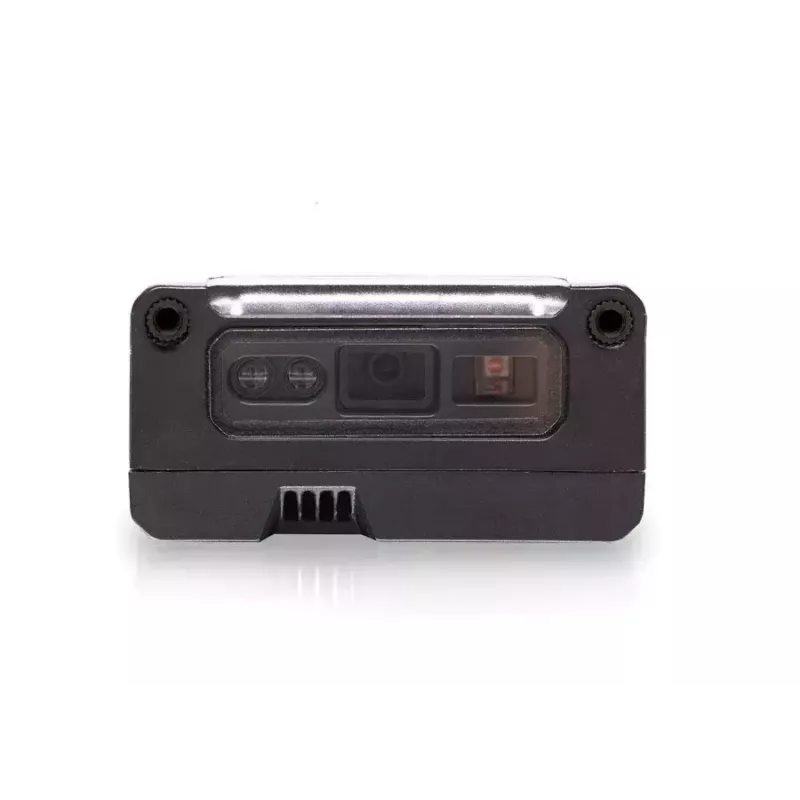

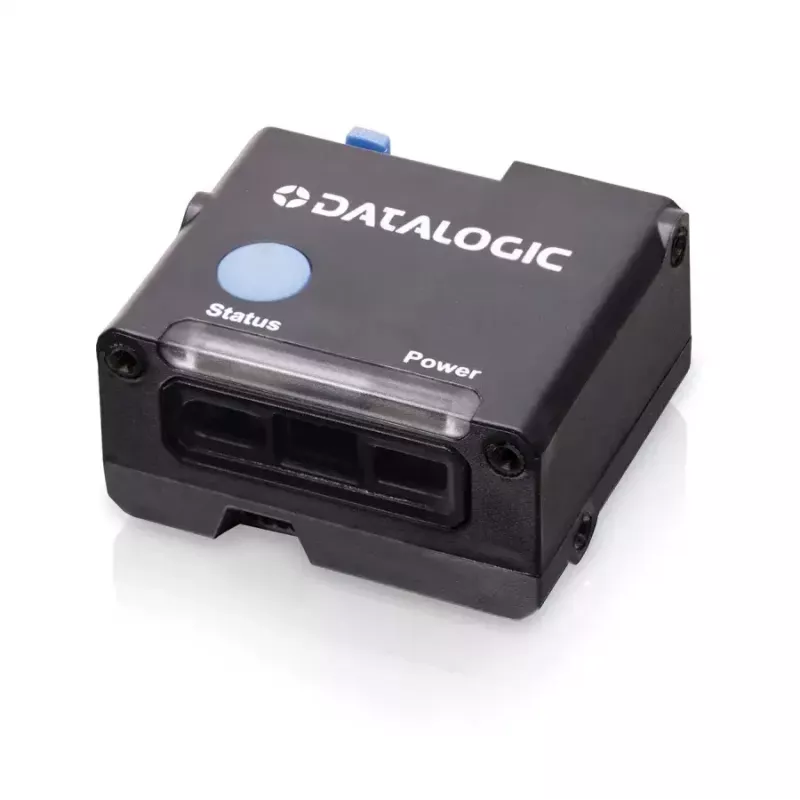

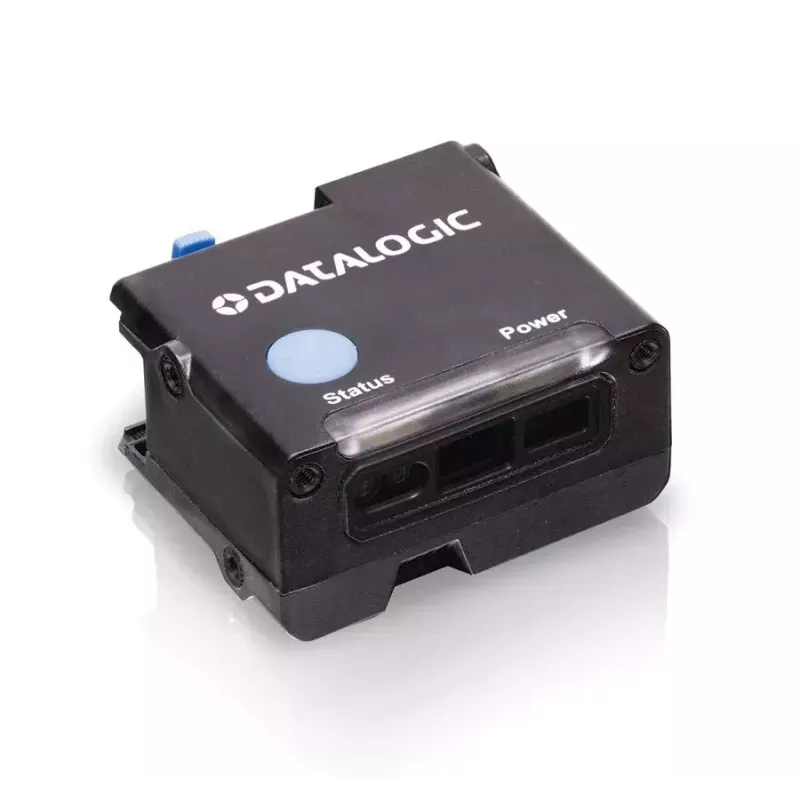

The Datalogic GFS4520-BK-RED is a fixed 2D barcode reader designed for compact integration in kiosks, self-service stations and OEM equipment. Available in a housed (GFS4500) or naked (GFE4500) version, this model combines a small footprint and multiple mounting points with IP54 sealing and UV-resistant window to provide reliable continuous scanning in a variety of indoor and sheltered outdoor environments.

Advantages

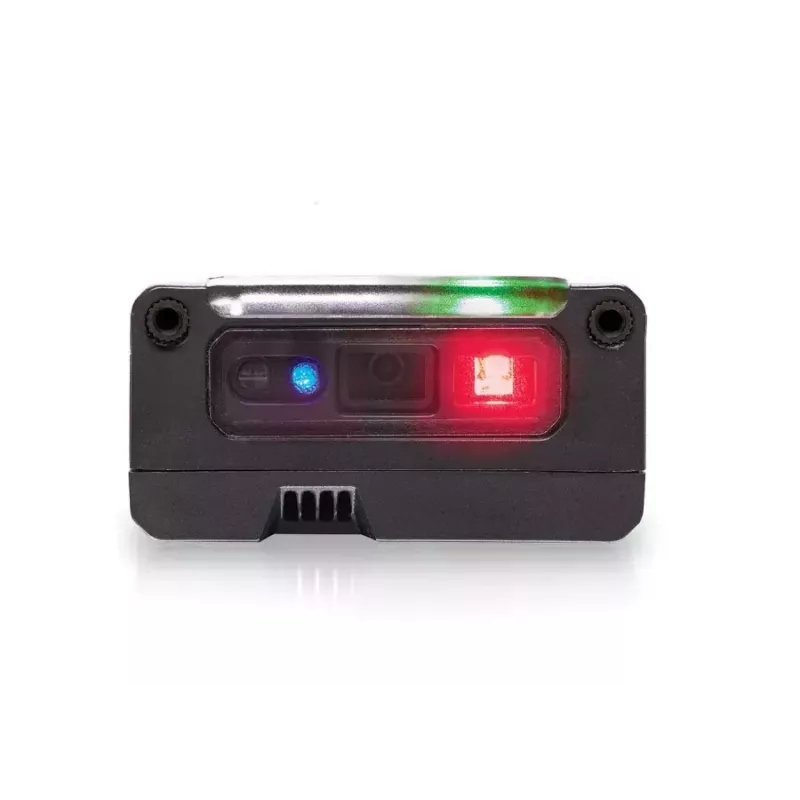

The GFS4520-BK-RED offers fast megapixel imaging and advanced decoding algorithms to read 1D and 2D codes, including codes displayed on mobile phones. High motion tolerance reduces rescans, while audible feedback and Green Spot confirmation indicate successful reads. The unit is lightweight and designed for long-term use, backed by a five-year factory warranty.

Suitable for

• Retail point-of-sale and self-checkout kiosks
• Ticketing and access control systems
• OEM integration in vending, medical analysis, or industrial machines
• Inventory and stock management stations

Key specifications

• Model: Datalogic GFS4520-BK-RED (Fixed 2D barcode reader)
• Connection: USB (micro-USB with locking clip)
• Symbologies: 1D and 2D codes (including QR codes, contactless display decoding)
• Ingress protection: IP54
• Weight: 52 g
• Illumination: red (model variant)
• Warranty: 5-year factory warranty

How to use

Install the reader into the kiosk or enclosure using the built-in fixing points or mount it in the host device opening. Connect the device via the micro-USB port to the host system; ensure the locking clip is secured for a stable connection. Position the reader so the barcode passes within the field of view and present codes steadily; the device will decode and send data over USB. For RS-232 versions, use the integrated cable and configure input/output signals as required by the host application.

Recommendations

Place the reader behind a protective window or panel that is clean and free from scratches. Avoid direct prolonged exposure to intense sunlight; where outdoor exposure is expected, provide shelter to extend lifetime. Use the Green Spot and audible feedback to confirm successful reads and reduce unnecessary rescanning.
