Phoenix 3211813 PT 6 Push-in priechodná svorka, 6 mm², sivá

With a nominal current of 41 A and voltage rating of 1000 V, the Phoenix 3211813 PT 6 push-in terminal block handles demanding industrial loads while simplifying wiring with tool-free push-in technology.

Overview

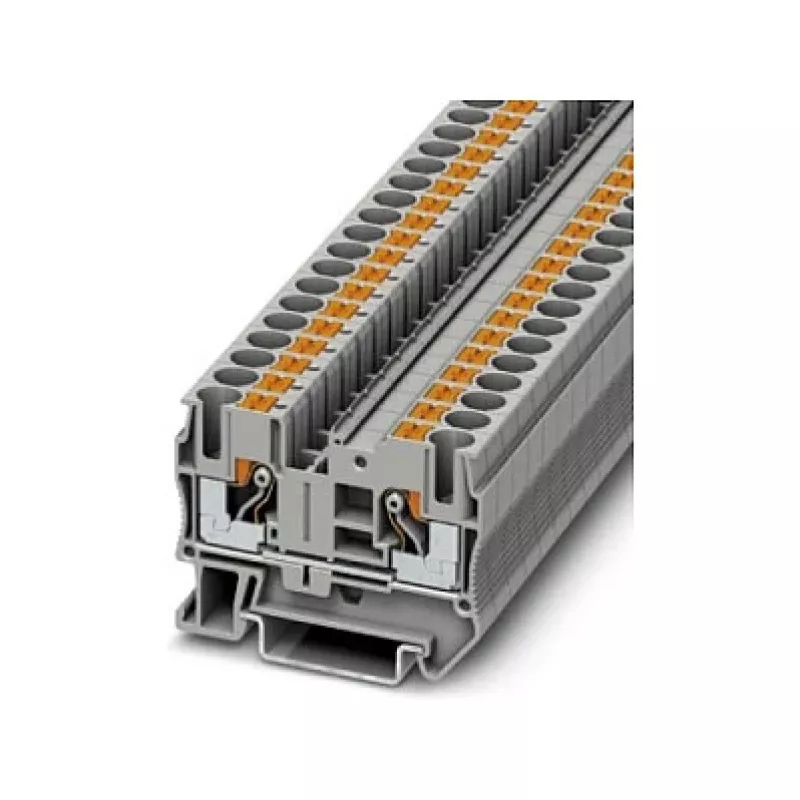

The Phoenix Contact PT 6 is a single-level feed-through terminal block designed for DIN rail mounting on NS 35/7.5 or NS 35/15. It accommodates conductors from 0.5 to 10 mm² solid (0.5 to 6 mm² stranded, 20 to 8 AWG) and features two push-in connections for fast, secure terminations. The gray polyamide housing meets UL 94 V0 flammability standards, ensuring safety in control cabinets and distribution systems.

What stands out

• Tool-free push-in connection technology speeds up installation
• High current capacity (41 A) and voltage rating (1000 V) for power distribution
• Compact design with 6 mm² nominal cross-section saves rail space
• UL 94 V0 flame-retardant polyamide housing for enhanced fire safety
• Broad approvals: UL, CSA, VDE, EAC, ATEX, IECEx for global use

Technical details

• Connection technology: Push-in
• Number of connections: 2
• Number of positions: 1
• Nominal cross section: 6 mm²
• Conductor cross section solid: 0.5 - 10 mm²
• Conductor cross section stranded: 0.5 - 6 mm²
• AWG range: 20 - 8
• Stripping length: 10 - 12 mm
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Pollution degree: 3
• Overvoltage category: III
• Insulating material: PA (Polyamide)
• Flammability rating: UL 94 V0

Our verdict

The PT 6 is a reliable workhorse for feed-through applications, combining high performance with push-in convenience and a compact footprint. Its extensive certifications make it a safe choice for international projects.
