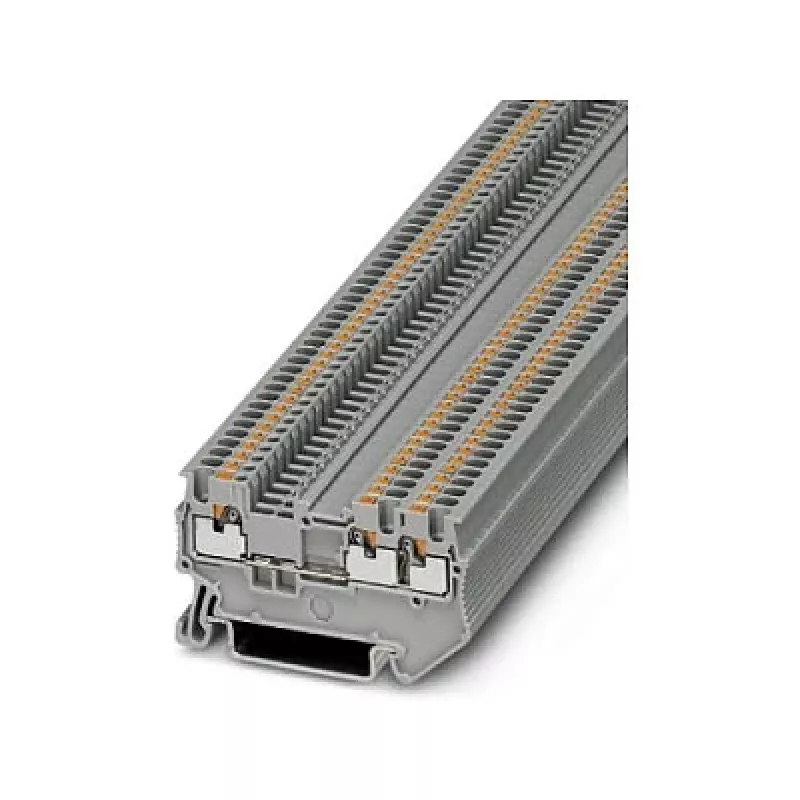

Phoenix Contact PT 1,5/S-TWIN Push-in dvojposchodová radová svorka, sivá, 1,5 mm², 500 V, 17,5 A, montáž na DIN lištu

Double-level terminal block with push-in connection technology, offering three connection points in a compact 1.5 mm² design. The PT 1,5/S-TWIN provides reliable, tool-free wiring for industrial control panels and distribution boxes, with a current rating of 17.5 A and voltage rating of 500 V (IEC).

Advantages

Push-in technology reduces wiring time by up to 50% compared to screw connections. The twin design doubles connection density without increasing footprint, saving valuable rail space. High-quality polyamide housing ensures durability and flame resistance (UL 94 V0).

Suitable for

• Industrial control cabinets and automation systems
• Building installation and power distribution
• Signal and power wiring in machinery
• Applications requiring maintenance-free connections

Key specifications

• Connection technology: Push-in
• Number of connections: 3
• Nominal cross section: 1.5 mm²
• Rated voltage (IEC): 500 V
• Rated current (IEC): 17.5 A
• Conductor cross section solid: 0.14 - 1.5 mm²
• Conductor cross section stranded: 0.14 - 1.5 mm²
• AWG range: 26 - 16
• Stripping length: 8 - 10 mm
• Housing material: Polyamide (PA)
• Flammability rating: UL 94 V0
• Mounting type: DIN rail NS 35/7,5 or NS 35/15
• Operating temperature: -60 °C to 105 °C
• Standards: IEC 60947-7-1, UL, CSA, VDE, EAC, cULus Recognized

Recommendations

For high-density wiring in control panels, the PT 1,5/S-TWIN offers a reliable, tool-free solution. Its push-in design ensures secure connections even in vibrating environments, while the twin configuration maximizes space efficiency.
