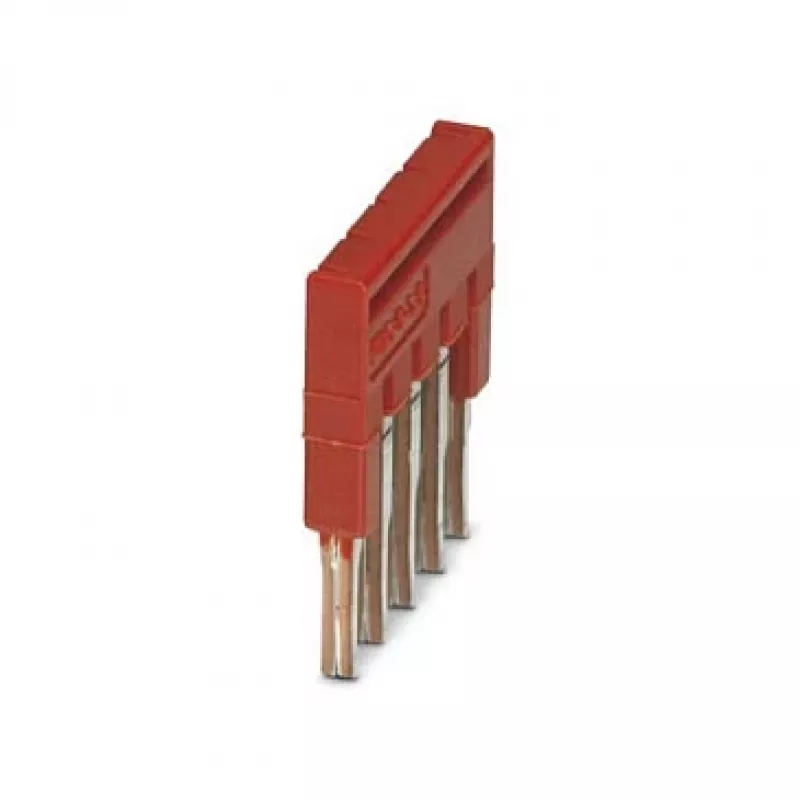

Phoenix 3213043 FBS 5-3.5 Prepojka, 5-pólová, rozteč 3,5 mm, červená

With a rated current of 17.5 A and a rated voltage of 500 V, this 5-pole plug-in bridge handles demanding industrial loads while maintaining a compact 3.5 mm pitch. The FBS 5-3.5 from Phoenix Contact simplifies cross-connection of terminal blocks, saving space and reducing wiring time.

Overview

The Phoenix 3213043 is a fixed bridge from the FBS series, designed for 5-pole bridging of terminal blocks with 3.5 mm pitch. Its plug-in design allows quick installation without tools, making it ideal for control cabinets and automation systems. The bridge is made of red polyamide (PA) with copper contacts, ensuring reliable electrical connections and long-term durability.

What stands out

• High current rating of 17.5 A and voltage rating of 500 V for robust performance
• Compact 5-pole configuration with 3.5 mm pitch saves panel space
• Tool-free plug-in mounting for fast and secure installation
• UL 94 V0 flammability rating for enhanced fire safety
• Wide operating temperature range from -60 °C to 105 °C
• Compliant with IEC 60947-7-1 and RoHS/REACH

Technical details

• Product type: Plug-in bridge
• Number of positions/poles: 5
• Pitch: 3.5 mm
• Colour: Red
• Rated voltage (IEC): 500 V
• Rated current (IEC): 17.5 A
• Insulating material: Polyamide (PA)
• Contact material: Copper
• Flammability rating: UL 94 V0
• Operating temperature range: -60 °C to 105 °C
• Mounting type: Plug-in
• Compatibility: Terminal blocks with 3.5 mm pitch
• Standards: IEC 60947-7-1
• Connection method: Bridging
• Number of connections: 5
• RoHS status: Compliant
• REACH status: Compliant
• Manufacturer series: FBS (Fixed Bridge System)

Our verdict

The Phoenix 3213043 FBS 5-3.5 is a reliable and efficient solution for bridging terminal blocks in industrial applications. Its high current capacity, compact design, and compliance with key standards make it a solid choice for engineers and panel builders.
