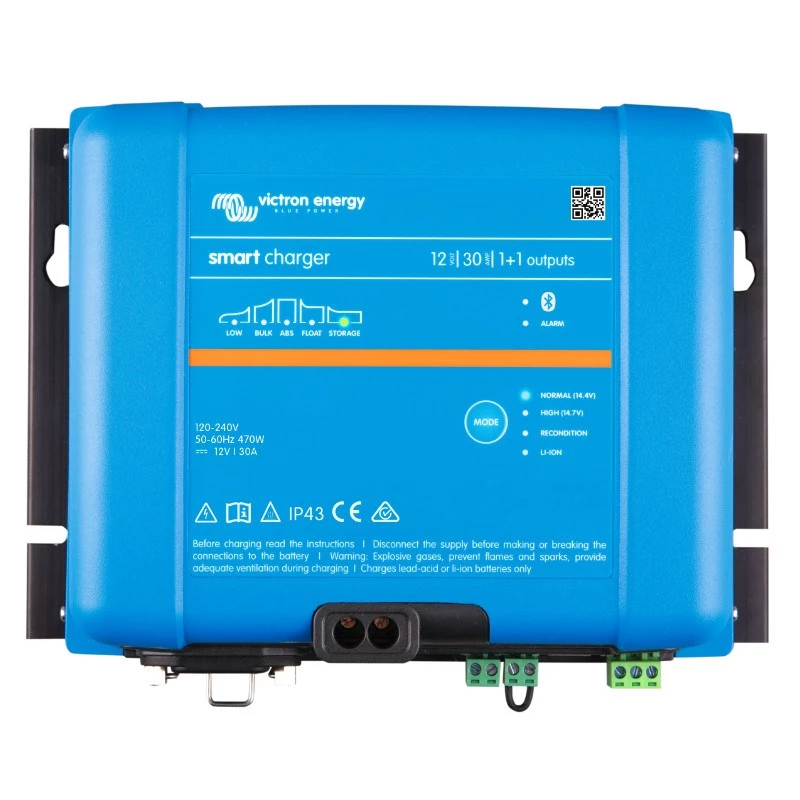

Phoenix Smart IP43 nabíjačka 12/30 (1+1) 120/240V

The Phoenix Smart IP43 Charger 12/30 (1+1) 120/240V is a high-performance battery charger from PHOENIX CONTACT, designed for professional charging of 12V lead-acid and LiFePO4 batteries. With a main charge current of 30A and a secondary output of 3A, it offers adaptive 5-stage charging for optimal battery care. Its IP43 rating ensures protection against dust and splashing water, making it suitable for marine, RV, and industrial environments.

Advantages

Adaptive 5-stage charging algorithm extends battery life. Bluetooth Smart and VE.Direct communication allow remote monitoring and configuration. High efficiency of 93% reduces energy waste. Power supply function enables use as a DC power source.

Suitable for

• Charging 12V lead-acid (flooded, GEL, AGM) and LiFePO4 batteries
• Marine, caravan, and motorhome applications
• Industrial and off-grid power systems
• Battery banks from 150 to 300 Ah

Key specifications

• Input voltage: 90-265 VAC, 45-65 Hz
• Nominal output voltage: 12 VDC
• Main charge current: 30 A
• Secondary charge current: 3 A
• Number of outputs: 2 (1 full current, 1 trickle)
• Charging algorithm: Adaptive 5-stage (Bulk, Absorption, Float, Storage, Recondition)
• Supported battery types: Lead Acid (Flooded, GEL, AGM), LiFePO4
• Efficiency: 93%
• No load power consumption: 0.5 W
• IP protection rating: IP43
• Communication interface: Bluetooth Smart, VE.Direct
• Operating temperature range: -20 to +50°C
• Power supply function: Yes
• Protection features: Reverse polarity, Output short circuit, Over temperature
• Recommended battery capacity: 150-300 Ah

Recommendations

For optimal performance, pair with a compatible battery management system and ensure proper ventilation during operation. Always follow manufacturer guidelines for battery charging.
