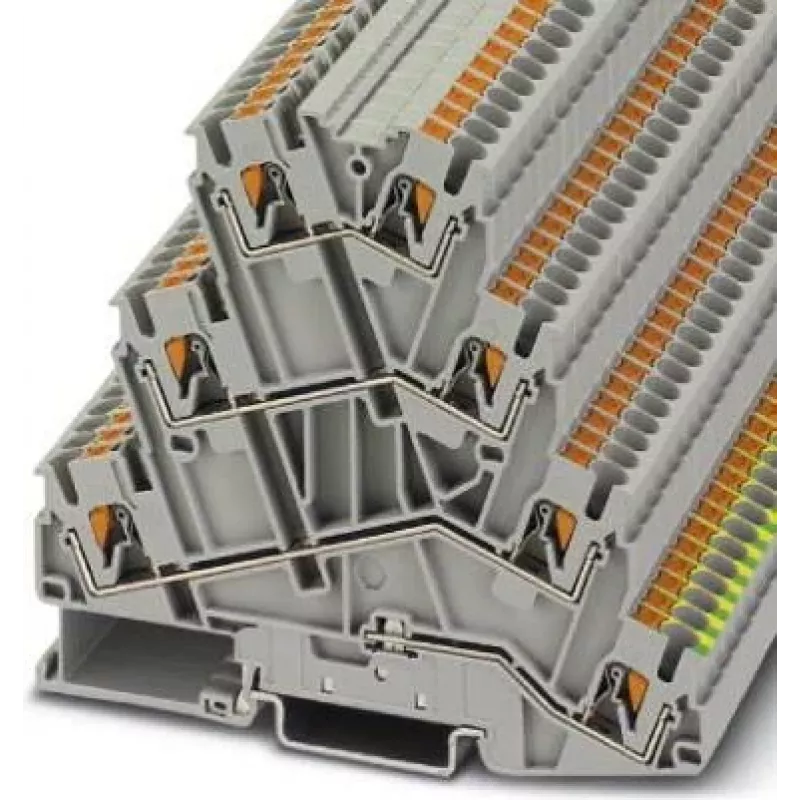

Phoenix Contact PT 2,5-PE/3L motorová svorkovnica, Push-in, 3-úrovňová, PE, 2,5 mm², sivá, 3210542

Motor terminal blocks often require separate grounding and multiple connection levels, which can complicate wiring and increase installation time. The Phoenix Contact PT 2,5-PE/3L solves this by integrating a PE function and three levels into a single compact block, simplifying motor connection tasks.

Who is it for

This terminal block is intended for electrical engineers, panel builders, and maintenance technicians who need a reliable and space-efficient solution for connecting motors and other three-phase loads in industrial control panels and machinery.

Main features

• Push-in connection technology for fast, tool-free wiring of solid and stranded conductors with ferrules.
• Three-level design with integrated PE (protective earth) connection, reducing wiring complexity.
• Nominal cross section of 2.5 mm² supports a wide range of conductor sizes from 0.14 mm² to 2.5 mm² (stranded) or 4 mm² (solid).
• Rated for 500 V and 24 A, suitable for many motor circuits.
• Gray polyamide housing with V0 flammability rating for safety.
• Mounts on standard DIN rail NS 35/7,5 or NS 35/15.

Specifications

• Terminal type: Motor terminal block
• Connection technology: Push-in
• Number of levels: 3
• PE connection: Yes
• Nominal voltage: 500 V
• Nominal current: 24 A
• Nominal cross section: 2.5 mm²
• Conductor cross section, solid: 0.14 - 4 mm²
• Conductor cross section, stranded: 0.14 - 2.5 mm²
• AWG range: 26 - 12
• Colour: Gray
• Mounting type: DIN rail NS 35/7,5, NS 35/15
• Insulating material: PA (Polyamide)
• Flammability rating: V0 (UL 94)
• Operating temperature: -60 °C to 105 °C
• Number of connections: 4 (3 levels + PE)

Tips

For stranded conductors without ferrules, use a screwdriver to open the push-in terminal. Ensure the DIN rail is properly grounded to maintain the PE function.
