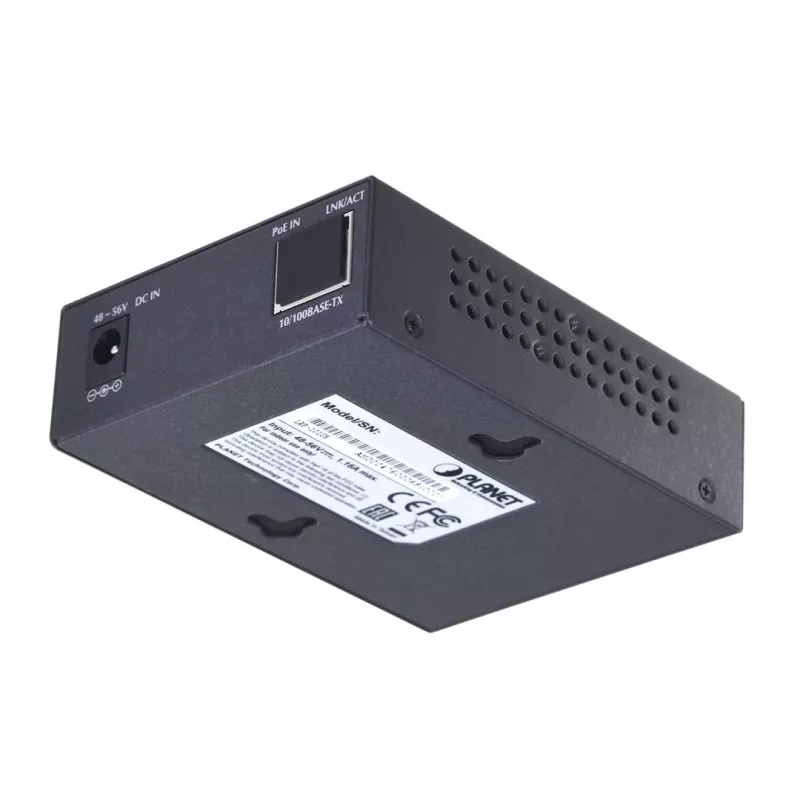

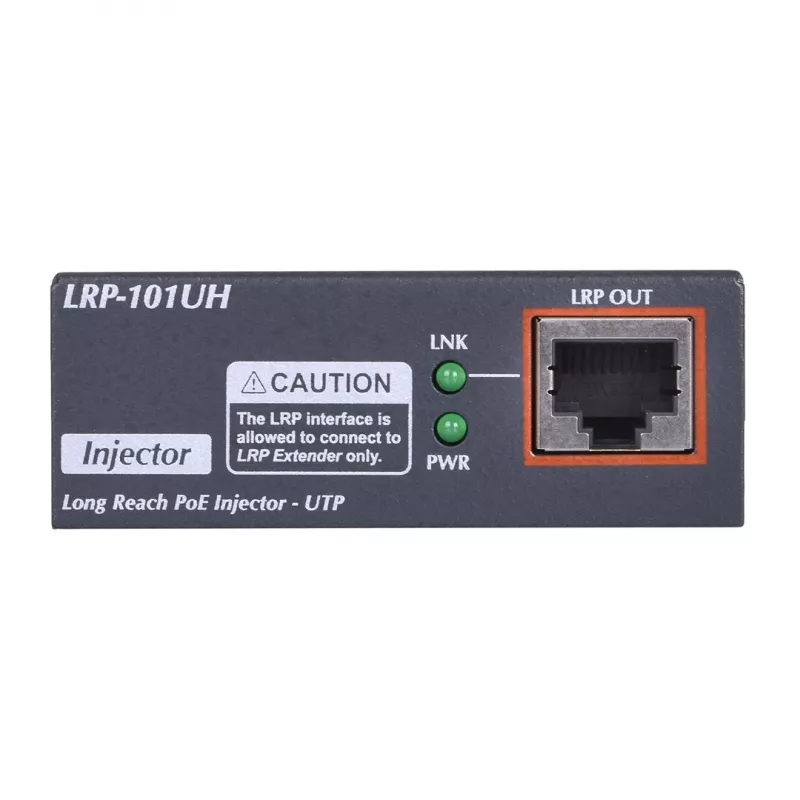

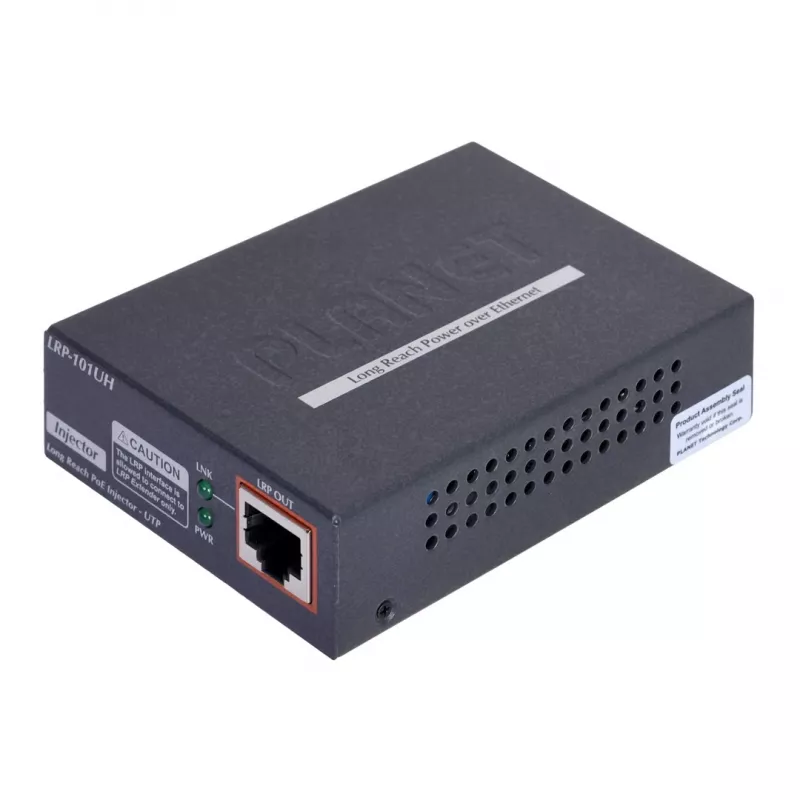

PLANET LRP-101UH Long Reach PoE extender, nástenná montáž, 500 m, 30W

The PLANET LRP-101UH is a Long Reach PoE Extender designed to extend Ethernet and PoE connectivity beyond the standard 100-meter limit. It supports IEEE 802.3at/af PoE input and output, delivering up to 30W of power over distances up to 500 meters using Cat.5e/6 UTP cable. This wall-mountable device is ideal for extending network reach to remote devices such as IP cameras, wireless access points, and VoIP phones in large facilities or outdoor installations.

Advantages

Extends PoE and data transmission up to 500 meters, eliminating the need for additional switches or power sources. Plug-and-play installation with no configuration required. Compact metal housing ensures durability and reliable performance in harsh environments.

Suitable for

• Extending network coverage in warehouses, campuses, and industrial sites
• Powering remote IP cameras, access points, and IoT devices
• Deploying PoE devices beyond the 100-meter Ethernet limit

Key specifications

• Device Type: Long Reach PoE Extender
• PoE Standard (Input/Output): IEEE 802.3at/af PoE+
• Ethernet Ports: 2 x 10/100BASE-TX RJ45
• Max Data Rate: 100 Mbps (Full Duplex)
• Max Long Reach Distance: 500 meters (1640 feet)
• Long Reach Cable Type: Cat.5e/6 UTP
• Max PoE Power Output: Up to 30W (distance dependent)
• Power Input: PoE (from 802.3at/af source)
• Mounting Type: Wall-mount
• LED Indicators: Power, LRP Link/Act, PoE In, PoE Out
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Operating Humidity: 5 to 95% RH (non-condensing)
• Power Consumption (Device): Max. 2W
• Protection: ESD, Surge
• Plug and Play: Yes
• Certifications: FCC, CE
• Housing Material: Metal

Recommendations

For optimal performance, use high-quality Cat.5e or Cat.6 UTP cable and ensure the PoE source provides sufficient power for both the extender and the connected device.
