Plochý kábel ACT Modular 8 žíl čierny TD608Z 100 m

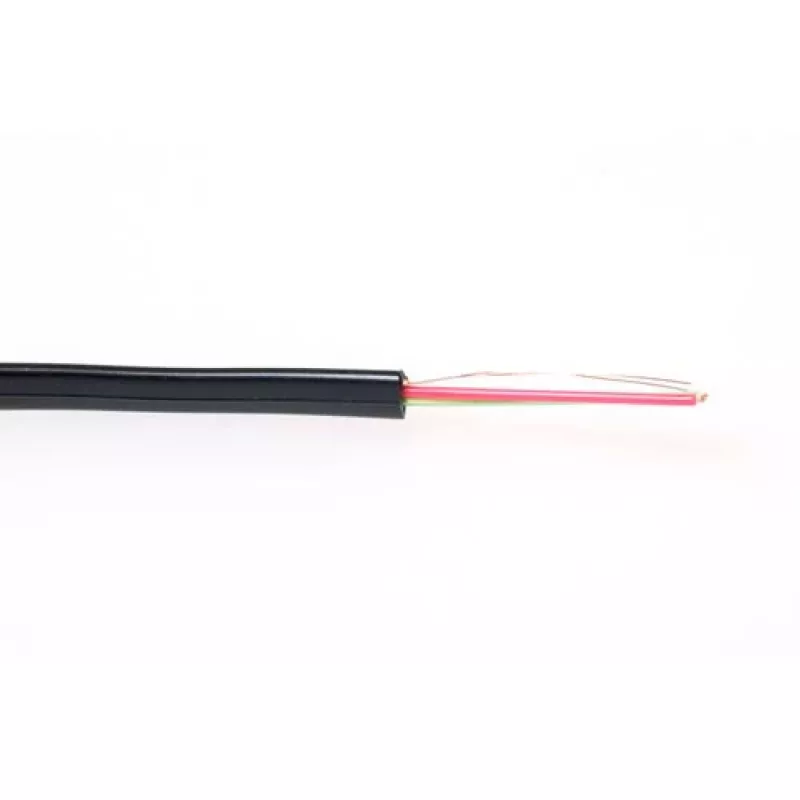

Modular Flatcable ACT Modular 8 conductors in black, supplied on a 100 m drum. The cable has eight AWG26 conductors, each conductor formed from seven strands of 0.16 mm (Litze 7x0.16 mm). The flat, modular design provides flexibility and space-saving routing for installations that require multiple parallel conductors.

Advantages

This black flatcable groups eight individually insulated conductors in a single flat assembly, simplifying cable management and installation. The 7x0.16 mm stranded conductors improve flexibility compared with solid wires while maintaining reliable conductivity. Supplied on a 100 m drum, the cable is convenient for longer runs and reduces the need for many smaller lengths.

Suitable for

• Internal wiring in control cabinets and rack installations
• Connections in modular systems and patch panels
• Signal and low-voltage distribution where multiple parallel conductors are needed

Key specifications

• Brand: ACT
• Model / MPN: TD608Z
• Number of conductors: 8
• Conductor construction: 7 x 0.16 mm stranded (Litze)
• Wire size: AWG26
• Length: 100 m (drum)
• Colour: Black
• EAN: 8716065132083

How to use

Cut the required length from the 100 m drum and strip insulation from each conductor according to your connector or terminal specifications. Route the flatcable along planned paths, securing it with appropriate clamps or ties to avoid mechanical stress. For terminations, follow the connector manufacturer’s instructions and ensure correct polarity and insulation where required.

Recommendations

Use this cable for low-voltage and signal applications; avoid exposure to high mechanical abrasion or continuous direct UV without additional protection. Verify compatibility with connectors and local electrical regulations before installation.
