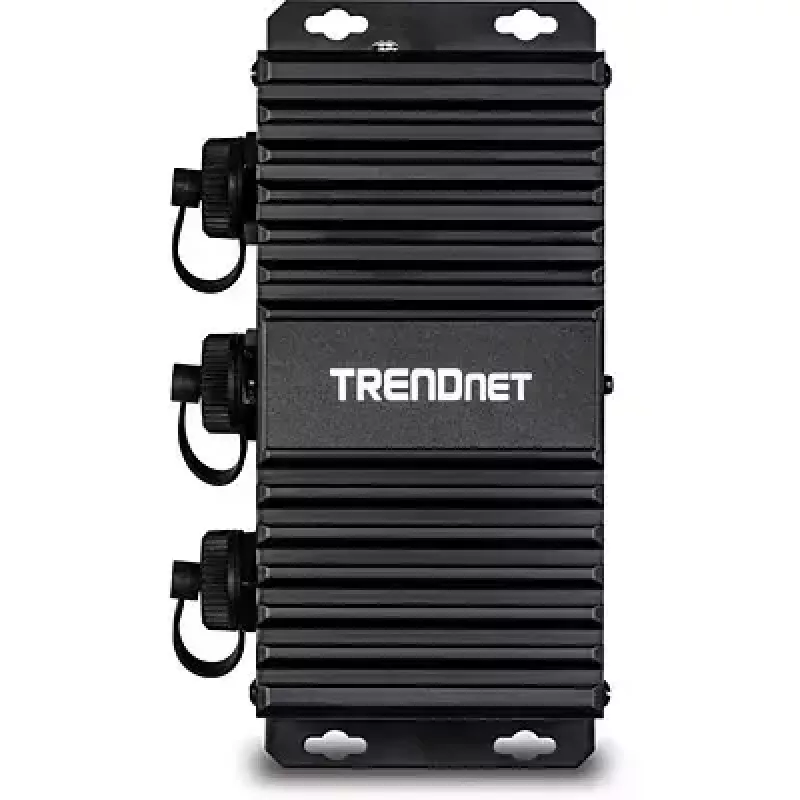

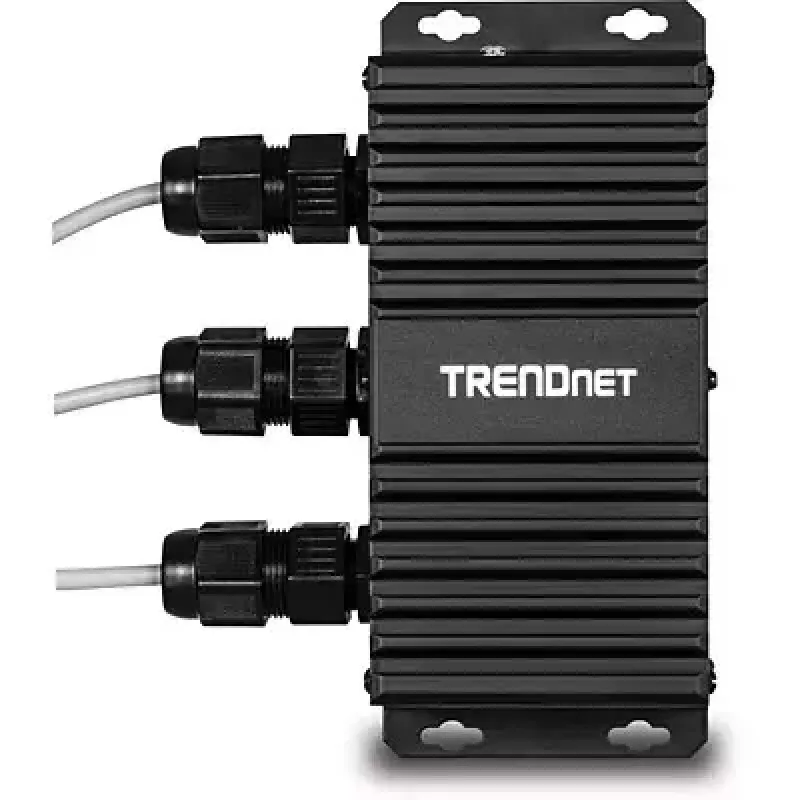

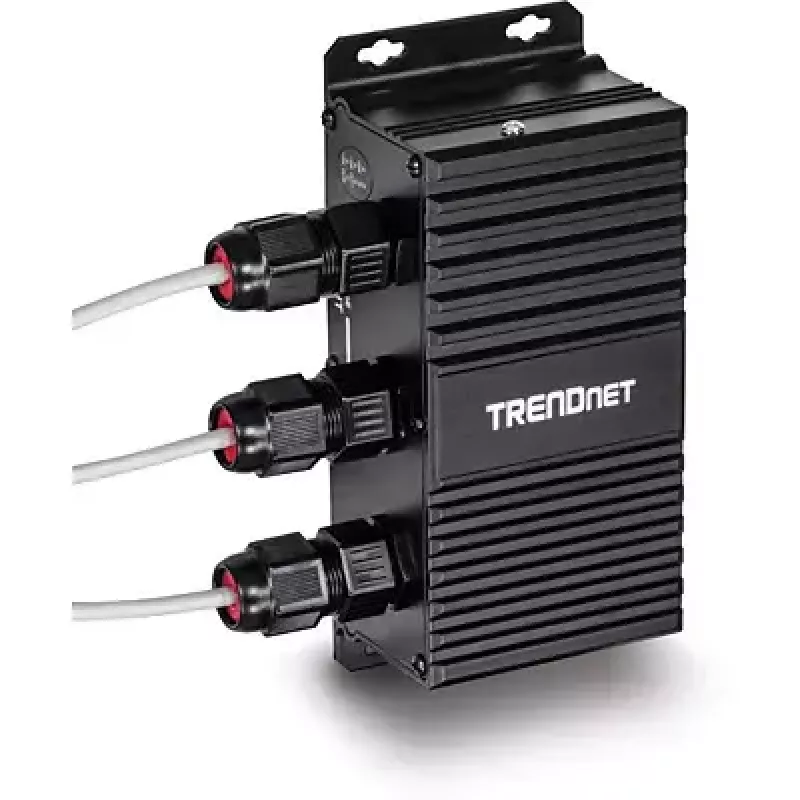

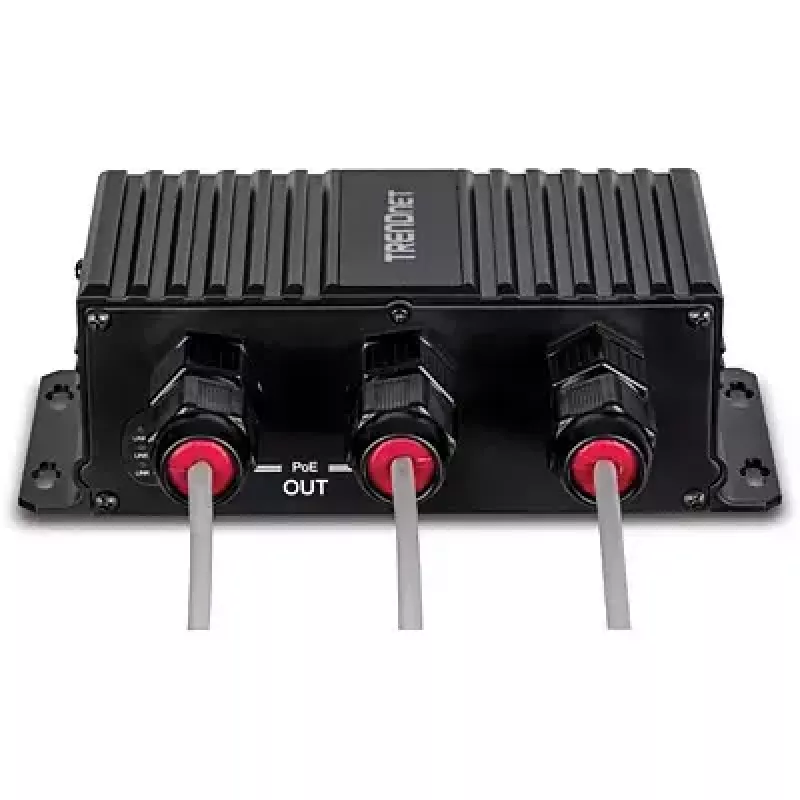

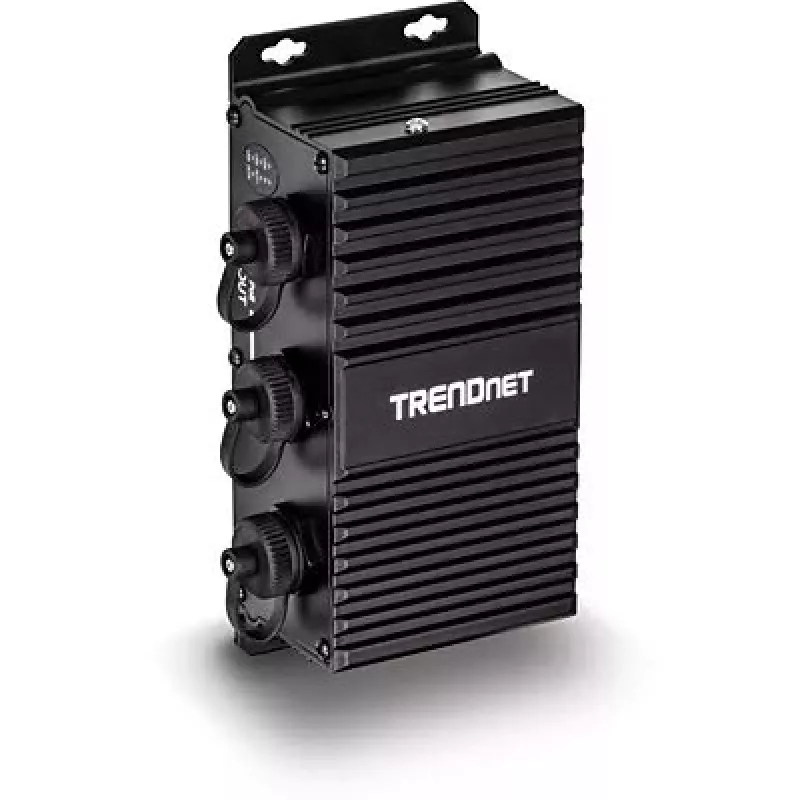

PoE extender Trendnet TI-EU120

The TRENDnet TI-EU120 2-Port Industrial Outdoor Gigabit UPoE extender extends a single UPoE connection by an additional 100 meters (328 ft.) to support up to two PoE+ devices. Housed in an IP67 weatherproof enclosure, the unit auto-detects PoE (15.4W), PoE+ (30W) and UPoE (60W) signals and includes a built-in voltage booster to maintain stable output for higher-power devices. With one UPoE input and two PoE/PoE+ output ports, the extender allows a maximum reach of up to 200 meters (656 ft.) from the PoE source and supports daisy-chaining of up to four units for longer runs.

Advantages

The TI-EU120 provides outdoor-rated protection (IP67) and an extended operating temperature range (-40° to 75° C), enabling installation in harsh environments. It supports gigabit speeds on all ports while delivering UPoE-compatible power and a built-in voltage booster to ensure consistent power delivery to PoE+ and UPoE devices. The device is PoE powered, eliminating the need for a separate power supply and simplifying installation. Compact and robust, it weighs approximately 0.834 kg and has a black housing suitable for outdoor mounting.

Suitable for

• Extending PoE/PoE+/UPoE connections to outdoor cameras and wireless access points
• Field deployments requiring weatherproof Gigabit PoE extension
• Daisy-chained PoE networks that need longer total cable runs (up to 500 m with 4 units)

Key specifications

• Model: TRENDnet TI-EU120

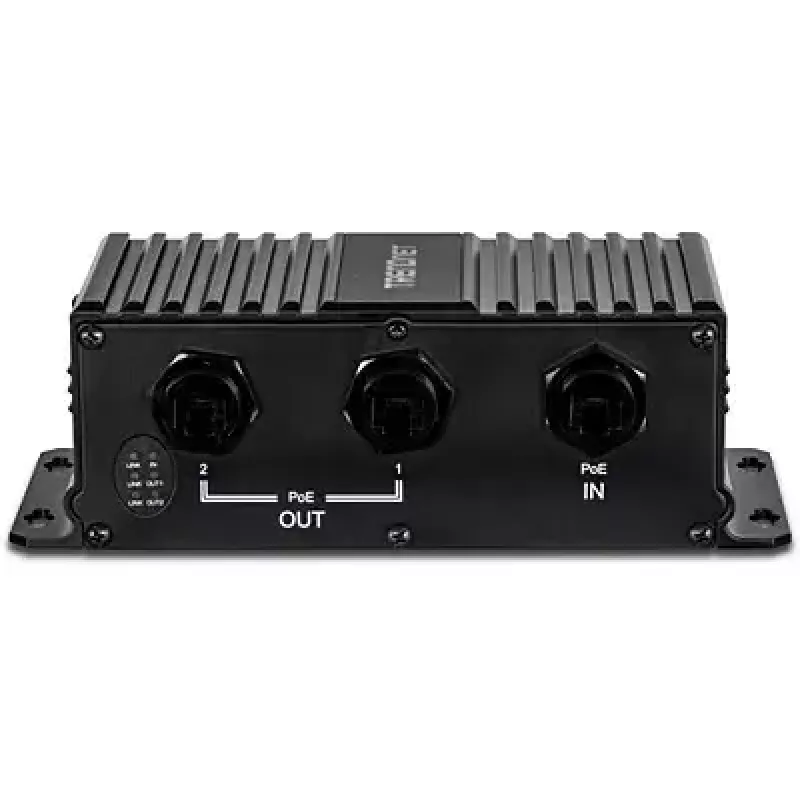

• Ports: 1 × Gigabit UPoE input, 2 × Gigabit PoE+ output
• Power detection: PoE 15.4W, PoE+ 30W, UPoE 60W
• PoE budget examples: 64W output with 95W UPoE input; 46W output with 60W UPoE input
• Extension distance: adds 100 m (328 ft.) per unit for up to 200 m (656 ft.) from source; daisy-chain up to 4 units (up to 500 m / 1640 ft.)
• Weather rating: IP67
• Operating temperature: -40° to 75° C (-40° to 167° F)
• Weight: 0.834 kg
• Color: Black

How to use

Connect the incoming UPoE feed from your PoE source to the TI-EU120 UPoE input port. Connect up to two PoE/PoE+ devices to the PoE output ports. The extender will automatically detect the connected device type (PoE, PoE+, or UPoE) and supply appropriate power while the internal voltage booster maintains stable output. For longer runs, add additional TI-EU120 units in a daisy chain configuration, observing the maximum total extension limits. No external power supply is required when the unit receives UPoE from the source.

Recommendations

Install the TI-EU120 in a protected mounting location using appropriate outdoor-rated cabling and connectors. Verify the PoE source provides sufficient UPoE power if you require the full power budget, and plan daisy-chain segments so the total distance and power budget meet the connected devices’ requirements.
