PoE injektor TP-Link Omada POE380S 10 Gigabit Ethernet 100-240V čierny

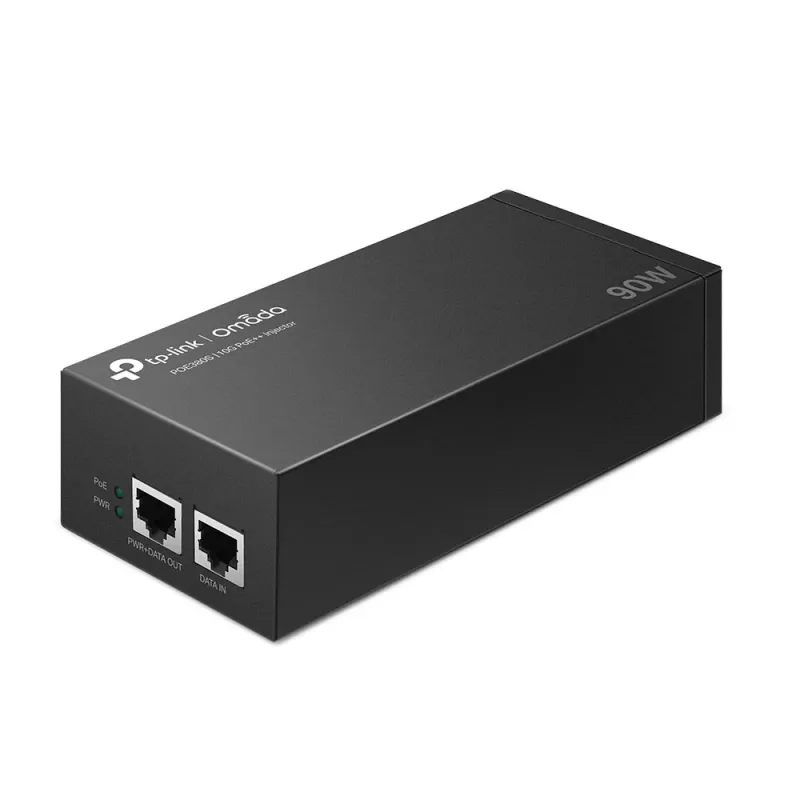

The TP-Link Omada POE380S is a 90W PoE++ injector that provides 10 Gigabit Ethernet connectivity and delivers up to 90 W of power to compatible devices. It supports auto-negotiation across six speeds (10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps / 10 Mbps), complies with IEEE 802.3af/at/bt standards, and features LED indicators for power and PoE status. Its compact black enclosure (155 mm x 70 mm x 42 mm) accepts 100–240 V input and is designed for use in varied network environments.

Advantages

The injector combines high-speed 10G data transfer with PoE++ power delivery up to 90 W, enabling simultaneous power and data over a single Ethernet cable. Auto-negotiation of six link speeds ensures compatibility with multi-gig devices, while IEEE 802.3af/at/bt support allows safe detection and delivery of the required power level. LED indicators provide at-a-glance status for power and PoE activity.

Suitable for

• Powering 10G or multi-gig network devices that require PoE++ (up to 90 W)
• Deployments where a single cable must carry both high-speed data and power (e.g., access points, PTZ cameras, switches)
• Small to medium commercial networks and edge installations with 100–240 V AC supply

Key specifications

• Model: TP-Link Omada POE380S (MPN: POE380S)
• PoE standard: IEEE 802.3af/at/bt (PoE++)
• Maximum PoE output: up to 90 W
• Data ports: 10 Gigabit Ethernet, auto-negotiation for 10/5/2.5/1 Gbps and 100/10 Mbps
• Power input: 100–240 V AC

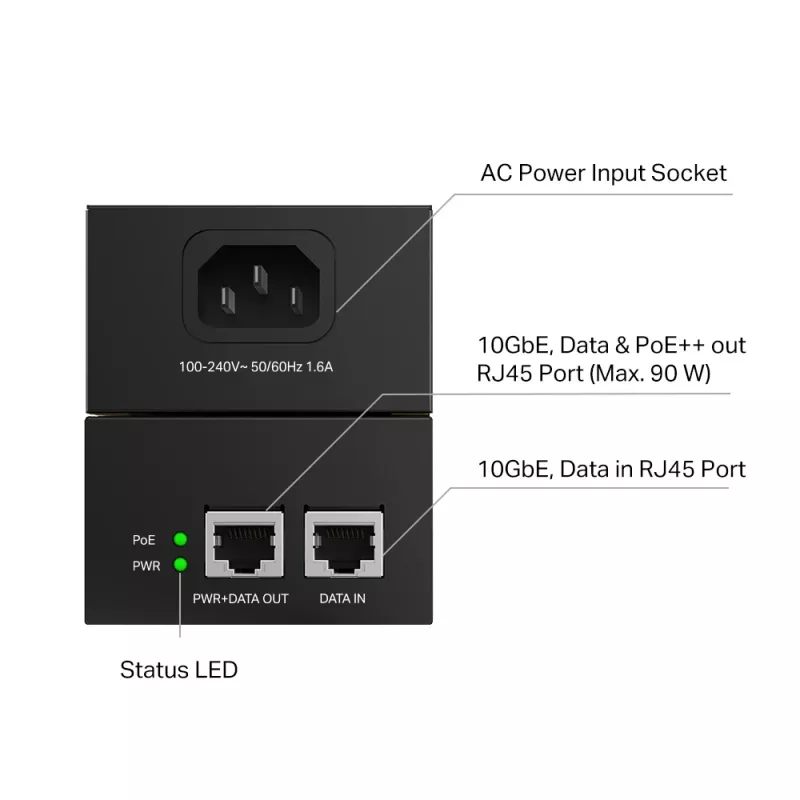

• Indicators: LED for power and PoE status
• Colour and dimensions: Black, 155 mm x 70 mm x 42 mm
• EAN: 4895252506341

How to use

Connect the injector to AC mains (100–240 V) using an appropriate power cord. Plug the upstream network switch or router into the data input port and connect the powered device (PD) to the PoE-enabled output port with a Cat5e or better Ethernet cable. The injector will auto-detect the PD and negotiate the required power level up to 90 W while establishing the highest mutually supported data speed. Monitor the LED indicators to confirm power and PoE operation.

Recommendations

Use Cat5e or higher cabling for multi-gig and 10G performance, ensure the powered device supports PoE++ (802.3bt) if it requires high wattage, and place the injector in a well-ventilated location away from direct heat sources. Verify total power budget and cable length to maintain stable power and data delivery.
