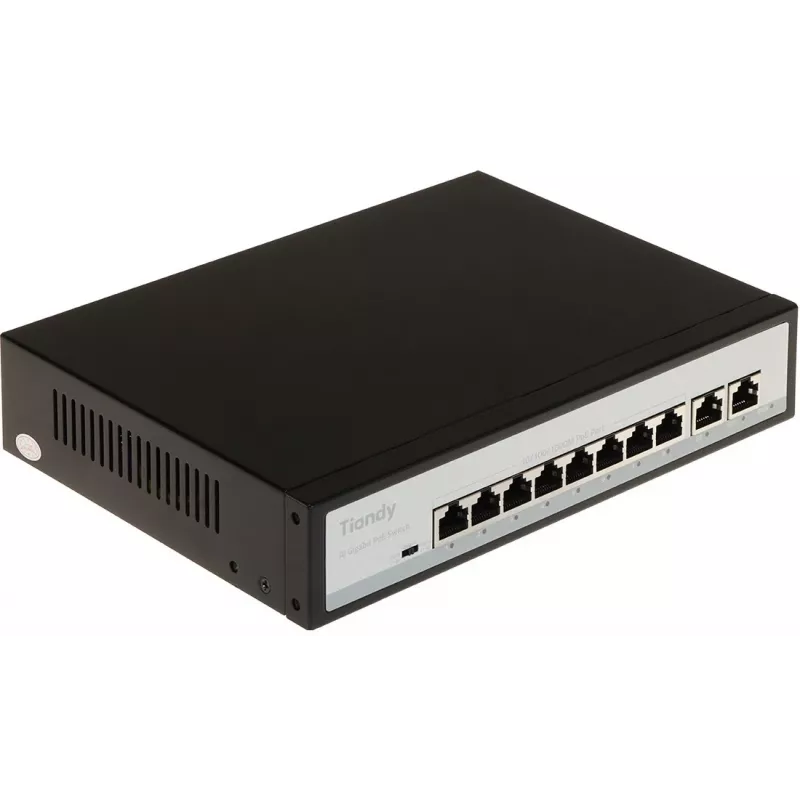

POE LANG 8-portový PoE switch 10/100 Mbps 120W

The POE LANG TC-P3S010 is a reliable 8-port PoE switch designed for small to medium-sized network deployments. It delivers power and data over a single Ethernet cable, simplifying installation and reducing cable clutter. With a total PoE budget of 120W and support for IEEE 802.3af/at, it can power devices such as IP cameras, VoIP phones, and wireless access points.

Advantages

This switch offers easy deployment with plug-and-play functionality, robust PoE power delivery, and advanced features like Extend Mode for long-distance transmission up to 250 meters, VLAN port isolation for enhanced security, and QoS for traffic prioritization. Its compact desktop design allows flexible placement.

Suitable for

• IP surveillance systems
• VoIP phone networks
• Wireless access point installations
• Small office/home office (SOHO) networks

Key specifications

• 8 PoE ports (10/100 Mbps) with 1 uplink port
• PoE standard: IEEE 802.3af/at
• Total PoE power budget: 120W (up to 30W per port)
• Switching capacity: 1.8 Gbps
• Packet forwarding rate: 1.34 Mpps
• MAC address table: 2K
• Jumbo frame support: 1536 bytes
• Internal power supply: AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 40°C
• Mounting: Desktop / Wall-mount

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The Extend Mode allows PoE transmission up to 250 meters at 10 Mbps, ideal for long-distance camera installations.
