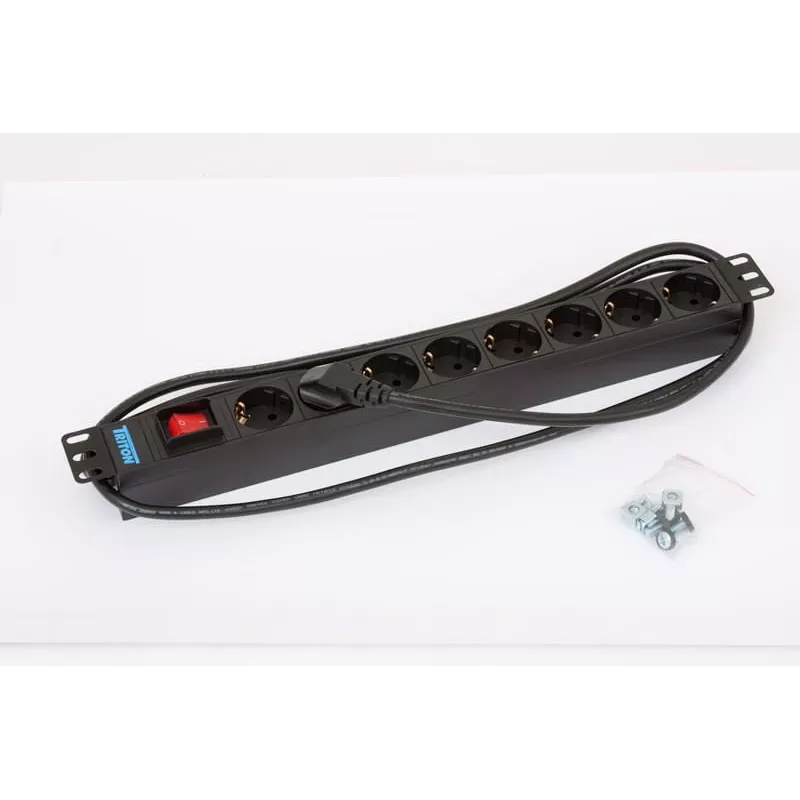

Power Distribution Unit Triton 19" PDU 8 AC výstupov 16A

The Triton 19" Power Distribution Unit PDU provides eight AC outlets with a maximum current rating of 16A in a compact 1U rack enclosure. Designed for installation in standard 19-inch racks, the unit supports both horizontal and vertical mounting, offering flexible placement in data centers, server rooms and network cabinets. A 2 m supply cable and integrated overload protection contribute to operational safety and convenient deployment. The PDU is compatible with Type E/F mains plugs, enabling connection of a wide range of IT and network equipment.

Advantages

The PDU combines a slim 1U form factor with dual mounting orientation to fit diverse rack layouts without occupying excessive space. Eight AC outlets deliver consolidated power distribution for servers, switches and peripheral devices while integrated overload protection helps prevent damage from excessive current. A 2 m cable gives installer flexibility for outlet locations and reduces the need for additional extension leads. Compatibility with Type E/F outlets ensures support for common European power plugs.

Suitable for

• Small and medium data center racks
• Server rooms and network cabinets
• Telecommunications and AV racks
• Workstations and equipment racks requiring consolidated power distribution

Key specifications

• Number of AC outlets: 8
• Maximum current: 16 A
• Rack height: 1U
• Mounting options: horizontal and vertical
• Cable length: 2 m
• Outlet type: Type E / F compatible
• Built-in overload protection

How to use

Mount the Triton 19" PDU in a standard 19-inch rack using the appropriate brackets or mounting points, choosing horizontal or vertical orientation according to available space and cable routing. Connect the PDU mains cable to a properly rated mains supply and distribute power to devices by plugging into the Type E/F compatible outlets. Observe the unit's maximum current rating of 16 A to avoid exceeding its capacity. If overload protection activates, disconnect nonessential loads and investigate the cause before resetting.

Recommendations

Install the PDU in a ventilated rack environment and plan outlet allocation to balance loads across the 8 sockets. Use the 2 m cable to route the unit toward the nearest mains feed, and ensure upstream circuit protection matches the PDU's 16 A rating. Periodically inspect power connections and avoid daisy-chaining multiple PDUs or using unprotected extension cords to maintain reliable operation.
