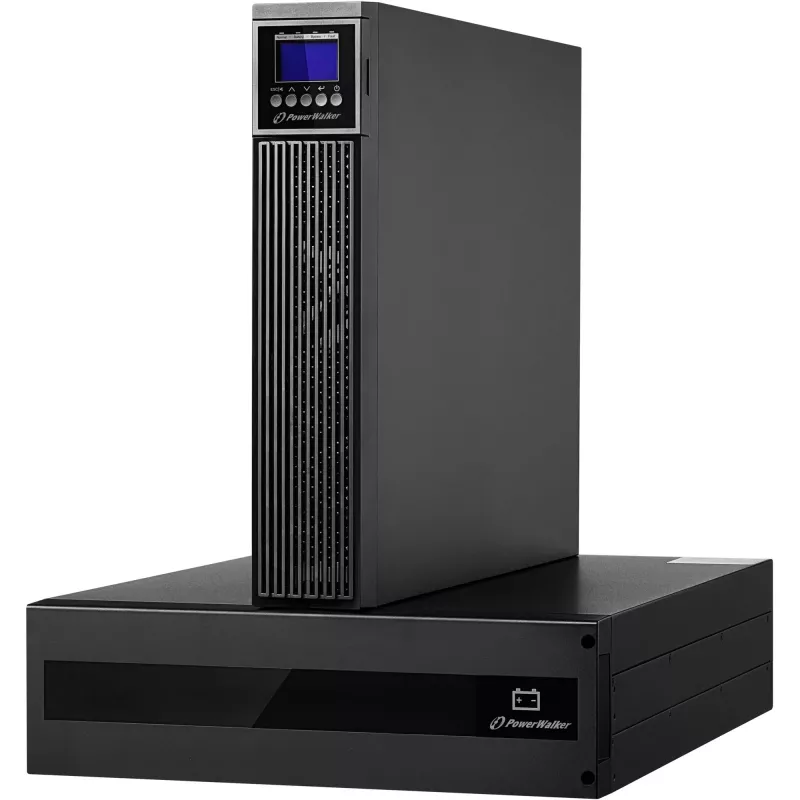

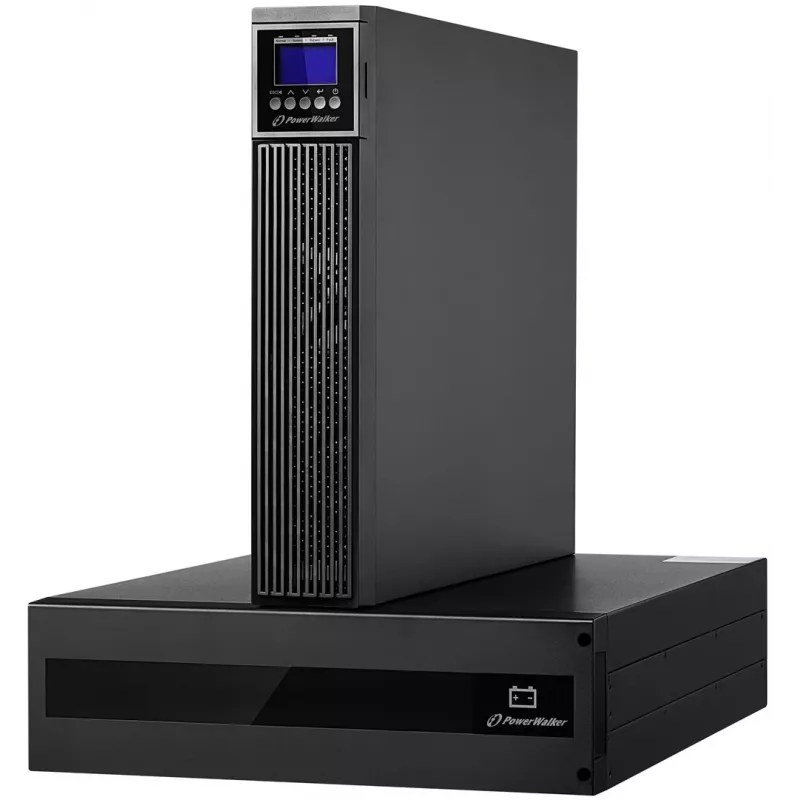

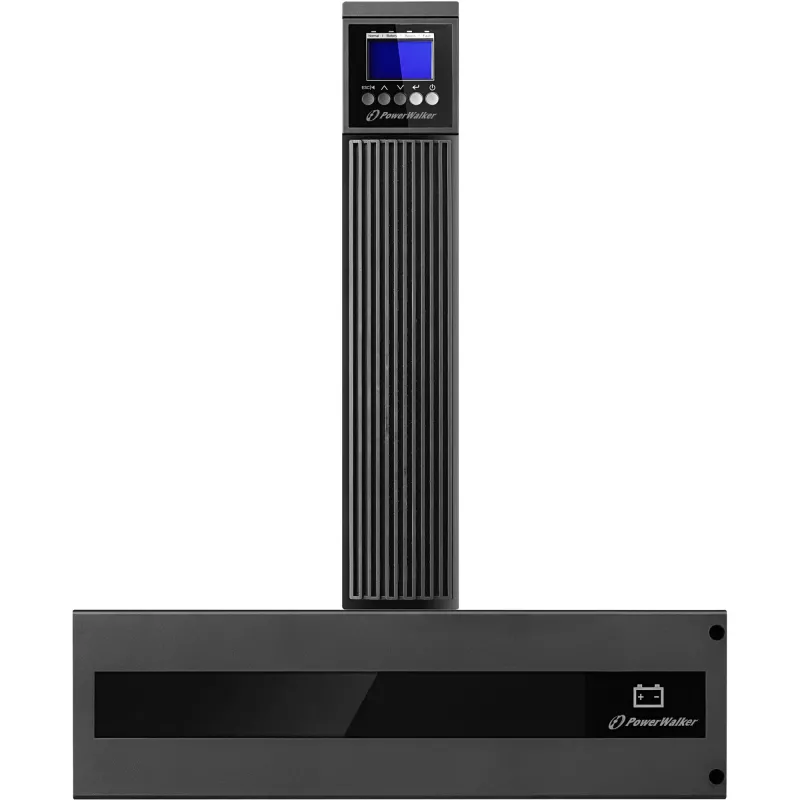

PowerWalker VFI 10000 RTG PF1 Online UPS 10000VA/10000W 5U Rack/Tower LCD s batériovým modulom

The PowerWalker VFI 10000 RTG PF1 is a high-performance online double-conversion UPS designed for critical IT infrastructure, servers, and network equipment. With 10000VA/10000W output and unity power factor (PF1), it delivers maximum efficiency and reliability. The 5U rack/tower convertible form factor allows flexible installation in data centers or server rooms. Equipped with a clear LCD display, terminal block, and IEC outlets, this UPS ensures seamless power protection.

Advantages

True online double-conversion topology provides zero transfer time and pure sine wave output, protecting sensitive electronics from all power disturbances. Unity power factor (1.0) delivers full real power, maximizing the usable capacity. High efficiency up to 95% in online mode and 98% in ECO mode reduces energy costs. The included external battery pack support allows extended runtime for critical applications.

Suitable for

• Data centers and server rooms requiring high-density power protection
• Network infrastructure, switches, routers, and storage systems
• Industrial equipment, medical devices, and telecommunications
• Any application demanding reliable, uninterrupted power with pure sine wave output

Key specifications

• UPS Topology: Online Double-Conversion
• Apparent Power: 10000 VA
• Active Power: 10000 W
• Power Factor: 1.0
• Form Factor: Rack/Tower Convertible, 5U
• Input Voltage Range: 110-300 VAC (half load), 176-300 VAC (full load)
• Output Voltage: 200/208/220/230/240 VAC (selectable)
• Output Frequency: 50/60 Hz (auto sensing)
• Output Waveform: Pure Sine Wave

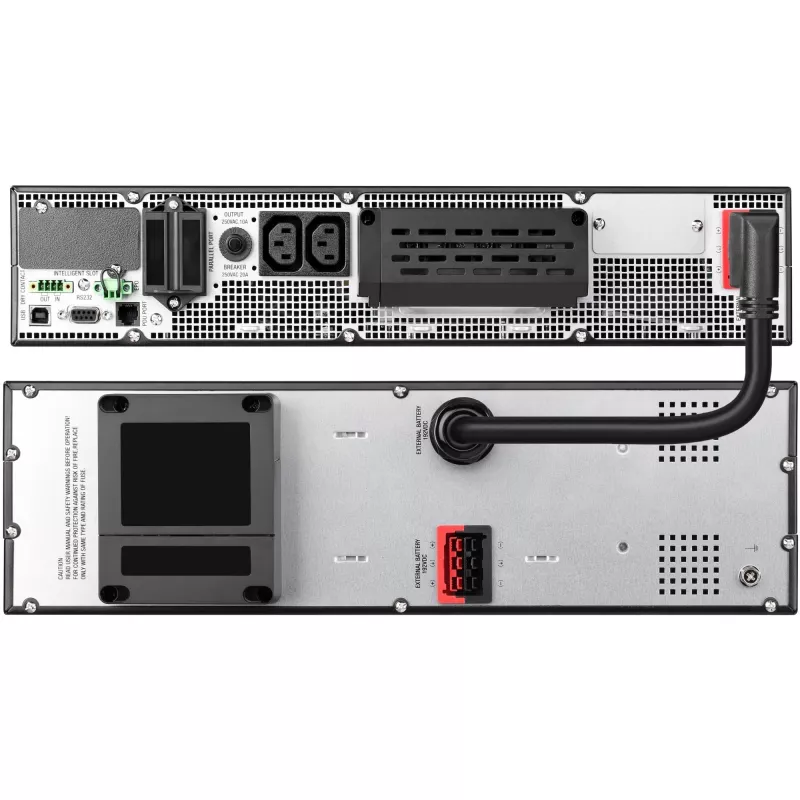

• Output Connections: Terminal block, 2x IEC C19, 2x IEC C13
• Battery Type: Sealed Lead Acid (SLA), 12V/9Ah (16 pieces)
• Recharge Time: 9 hours to 90%
• Transfer Time: 0 ms
• Efficiency (Online Mode): Up to 95%
• Efficiency (ECO Mode): Up to 98%
• Display: LCD
• Communication Ports: USB, RS-232, EPO, Intelligent Slot
• Noise Level: <55 dB
• External Battery Pack Support: Yes

Recommendations

For optimal performance, install in a well-ventilated environment and ensure proper load distribution. Use the intelligent slot for SNMP or network management cards. The external battery pack (sold separately) can extend runtime for critical applications.
