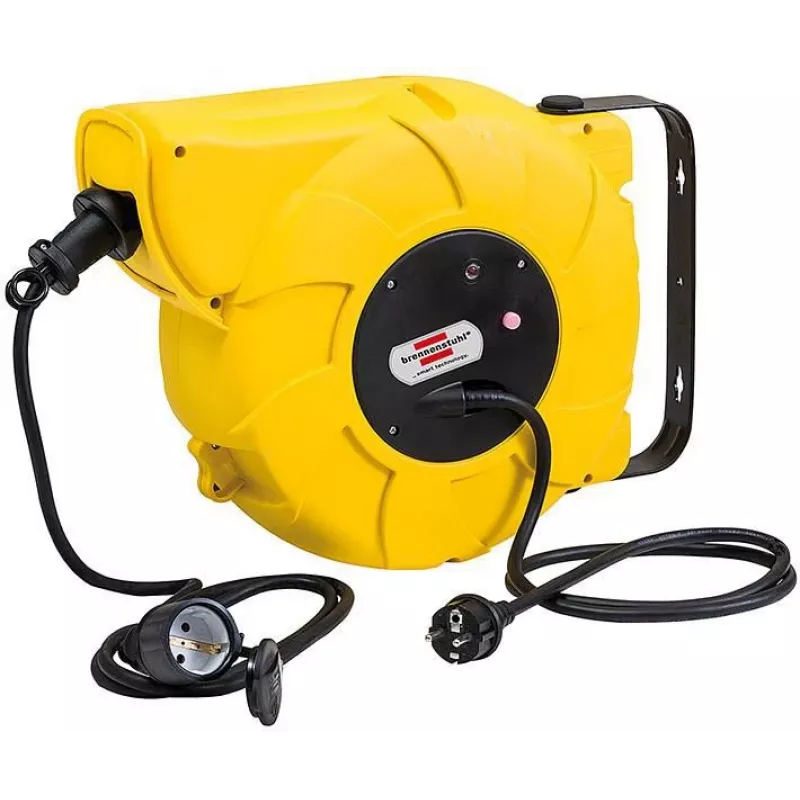

Predlžovací kábel Brennenstuhl 1241000300 18 m 1 AC zásuvka čierna žltá

Automatic cable reel with splashproof protection (IP44), featuring a total cable length of 18 m (16 + 2 m) and H07RN-F 3G1.5 rubber-neoprene cable. The unit has a robust plastic housing in black and yellow and includes a childproof socket and a safety cut-out for overload protection. It is designed for wall and ceiling mounting and the reel can slew up to 180° to adapt to installation needs.

Advantages

The automatic rewind mechanism keeps the H07RN-F cable neatly stored and reduces wear. IP44 splashproof rating allows safe use outdoors and in damp environments. The robust plastic housing and childproof socket increase operational safety, while the integrated safety cut-out provides protection against overload. The slewing reel and mounting options for walls and ceilings offer flexible installation.

Suitable for

• Extending power outdoors for gardening and yard work
• Temporary power supply on construction sites
• Outdoor events and workshops in damp conditions
• Wall- or ceiling-mounted power distribution in garages and utility rooms

Key specifications

• Cable length: 16 + 2 m (total 18 m)
• Cable type: H07RN-F 3G1.5, rubber-neoprene
• Number of AC outlets: 1
• Ingress protection: IP44 (splashproof)
• Housing: robust plastic, black and yellow
• Mounting: wall and ceiling mountable; reel slews up to 180°

How to use

Install the reel on a suitable wall or ceiling bracket according to the mounting instructions and ensure the mains supply is disconnected during installation. Pull out the required length of cable and let the automatic rewind lock hold the cable in place. Connect devices to the single AC outlet. After use, allow the cable to retract slowly by activating the rewind mechanism so that the cable winds evenly back into the housing.

Recommendations

Use the cable reel on a stable, dry mounting surface and avoid exposing the connection point to direct water jets. Do not exceed the rated current of connected equipment and regularly inspect the H07RN-F cable and housing for damage. Keep the childproof socket closed when not in use and store the reel indoors during prolonged non-use or severe weather.
