Prepäťová ochrana AXON-RS485 symetrické vedenie

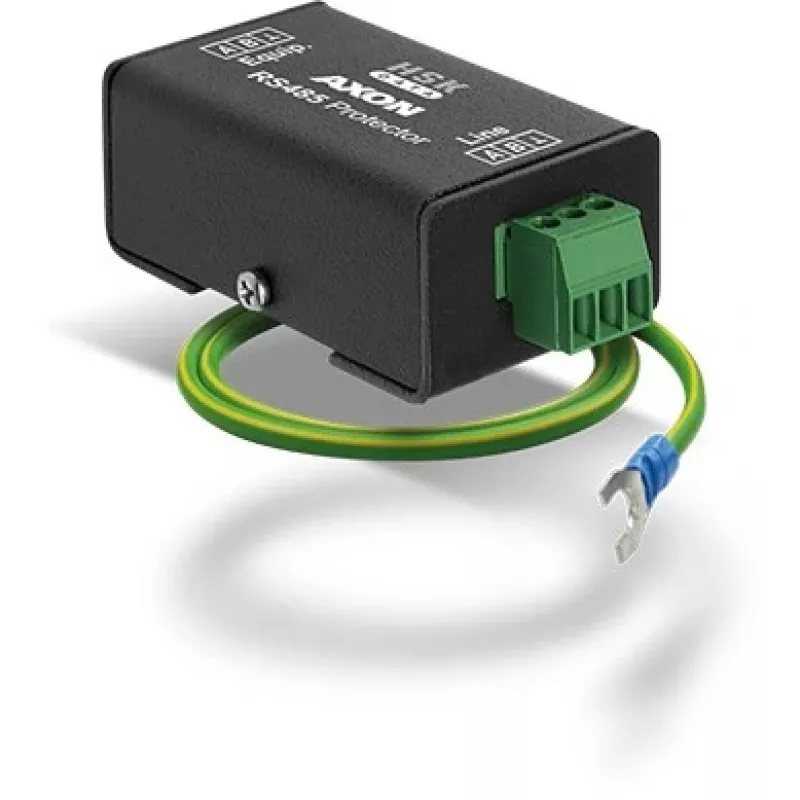

The Surge Protector AXON-RS485 is a high-performance data line surge protective device designed to safeguard RS-485 communication systems from transient overvoltages. It provides symmetric line protection (differential and common mode) for one differential pair plus ground, ensuring reliable operation in industrial environments.

Advantages

Protects sensitive RS-485 equipment from lightning-induced surges and switching transients. Features ultra-fast response time (<1 ns) and low voltage protection levels. Compact DIN rail mount design simplifies installation in control cabinets.

Suitable for

• Industrial automation and process control systems
• Building management and HVAC networks
• Security and access control systems
• Remote monitoring and SCADA applications

Key specifications

• Interface: RS-485, symmetric line (differential & common mode)
• Nominal voltage (Un): 6 V DC
• Max continuous voltage (Uc): 7 V DC
• Nominal discharge current (In): 10 kA (8/20 µs)
• Max discharge current (Imax): 20 kA (8/20 µs)
• Voltage protection level (Up) line-line: <15 V
• Voltage protection level (Up) line-ground: <600 V
• Response time: <1 ns
• Connection: Screw terminals
• Mounting: 35 mm DIN rail
• Operating temperature: -40°C to +85°C
• Housing: Flame-retardant thermoplastic, IP20
• Max data rate: 10 Mbps
• Standards: IEC 61643-21, EN 61643-21

Recommendations

For optimal protection, install this surge protector at the entrance of the RS-485 cable into the equipment enclosure. Ensure proper grounding via the dedicated ground terminal. Suitable for use in harsh industrial environments with wide temperature range.
