Priemyselná inšpekčná kamera Laserliner VideoFlex G4 XXL

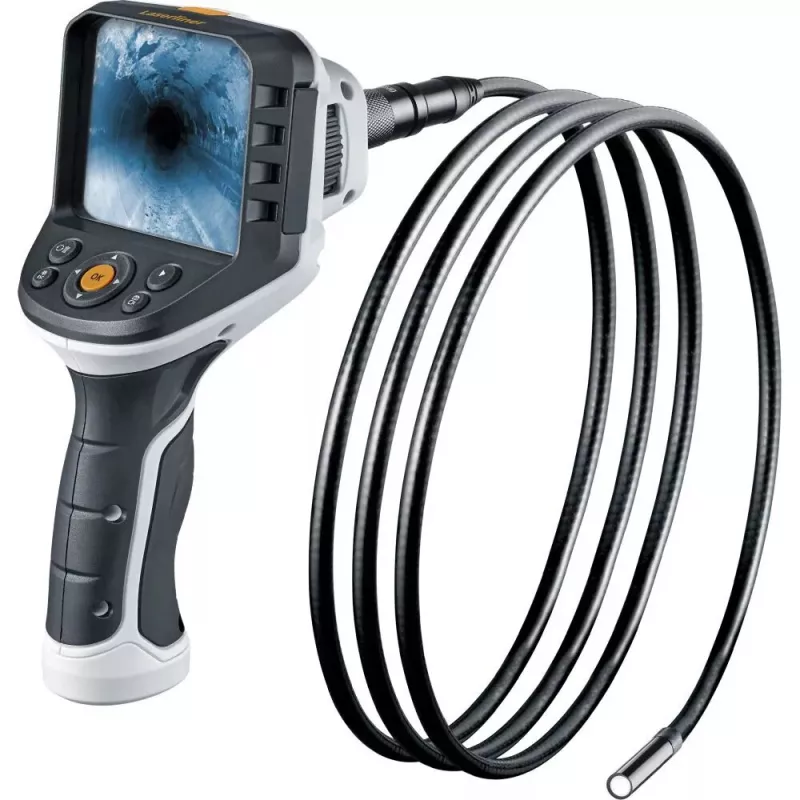

The Laserliner VideoFlex G4 XXL industrial inspection camera is designed for visual inspection in confined spaces and technical environments. The system features a 9 mm probe diameter with integrated illumination and a 3.5" colour display with a display resolution of 320 x 240 pixels. The device records still images in JPEG format and can capture video in AVI format with video resolutions up to 640 x 480 pixels. MicroSD card support up to 16 GB provides on-board storage and a rechargeable 3.7 V Lithium‑Ion battery supplies portable power for use at remote job sites. The camera housing is rated IP54 for splash and dust protection, making it suitable for many workshop and field inspection conditions.

Advantages

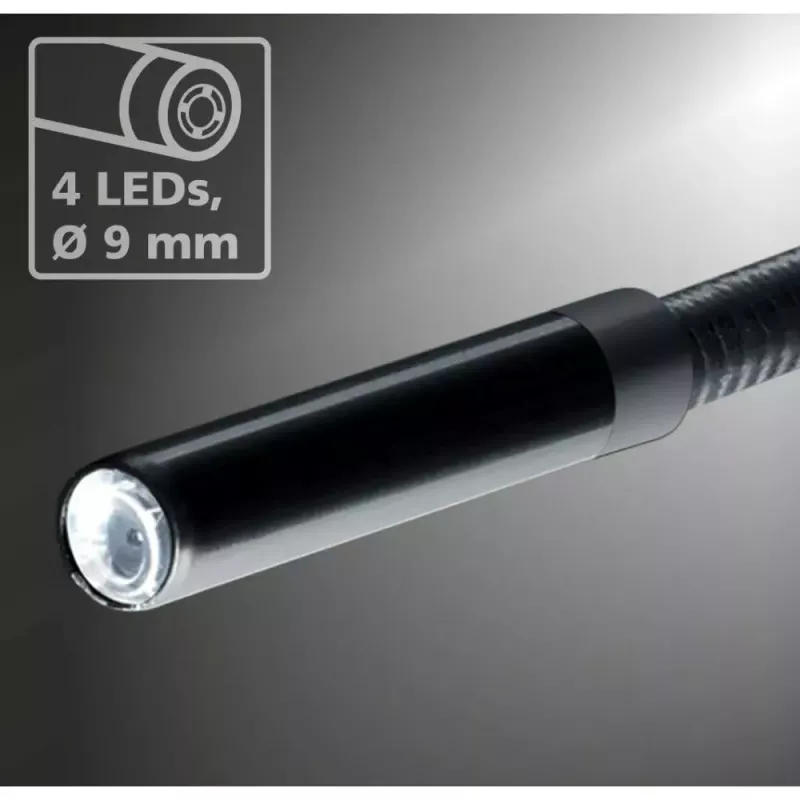

The compact 9 mm probe enables access into narrow bores and cavities while the integrated LED illumination delivers clear visualisation of inspection targets. The 3.5" colour screen provides live viewing and playback directly on the unit, and support for JPEG and AVI file formats allows simple transfer of images and video for documentation. The MicroSD card compatibility up to 16 GB gives flexible storage options, and the rechargeable Lithium‑Ion battery ensures uninterrupted operation without frequent battery replacements. IP54 protection helps safeguard the unit against dust ingress and water splashes during routine inspections.

Suitable for

Key specifications

How to use

Charge the internal 3.7 V Lithium‑Ion battery before the first use and insert a MicroSD card (up to 16 GB) if external storage is required. Power on the unit and extend the 9 mm probe into the inspection area while observing the live image on the 3.5" display. Adjust the built-in illumination as needed to obtain a clear image. Capture still images in JPEG format or record video in AVI format using the on‑screen controls. After inspection, save files to the MicroSD card and transfer them to a computer for analysis or reporting.

Recommendations

For optimal results, clean the probe before and after each inspection to prevent contamination and protect image clarity. Avoid submerging the control unit and probe in water despite the IP54 rating; the device is designed to resist splashes and dust but is not fully waterproof. Use MicroSD cards within the specified capacity and format them in the device before first use to ensure reliable recording. Store the inspection camera in a protective case when transporting between sites and recharge the battery after prolonged use to maintain readiness.
