PRIMO Qnect P201-01 vzduchotesná dutinová krabica, Ø74 mm, hĺbka 62 mm

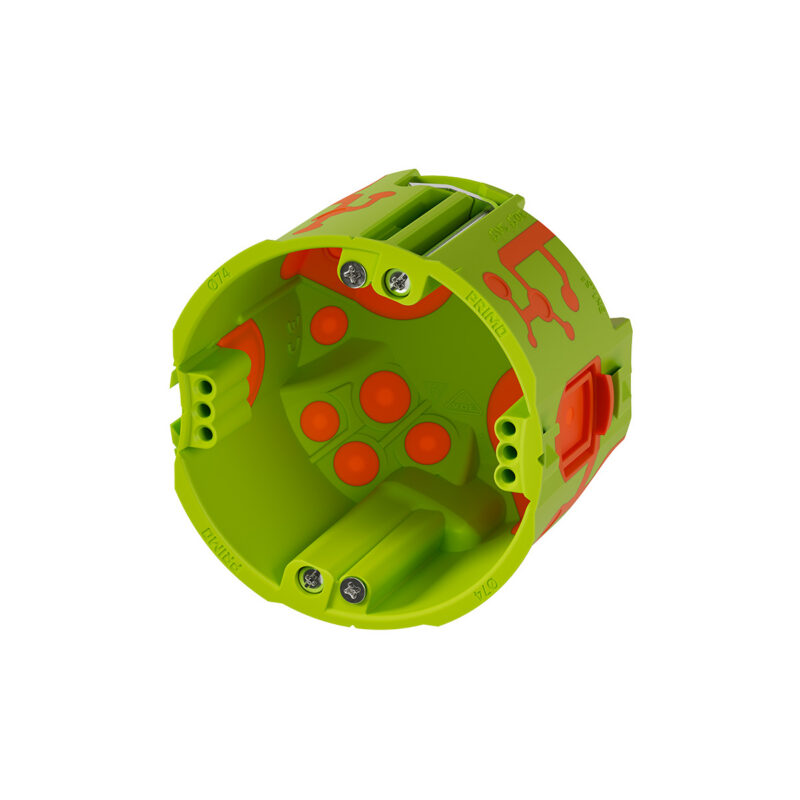

PRIMO Qnect P201-01 is a 62 mm deep cavity wall box with a 74 mm installation diameter. It can be used as a device box or a device connection box in panels from 0 to 37 mm thick. The green and orange body combines a polypropylene housing with TPE cable and conduit entries. The design is airtight and halogen-free, with IP30 protection.

The SCS connection system joins adjacent boxes at the standard 71 mm spacing. Large connecting membranes allow through-wiring without separate connecting pieces. Ten cable entries and two conduit entries up to M25 provide routing options without tools. Three screw bosses support flexible alignment of the installed device, and the cable restraint secures the incoming cables.
