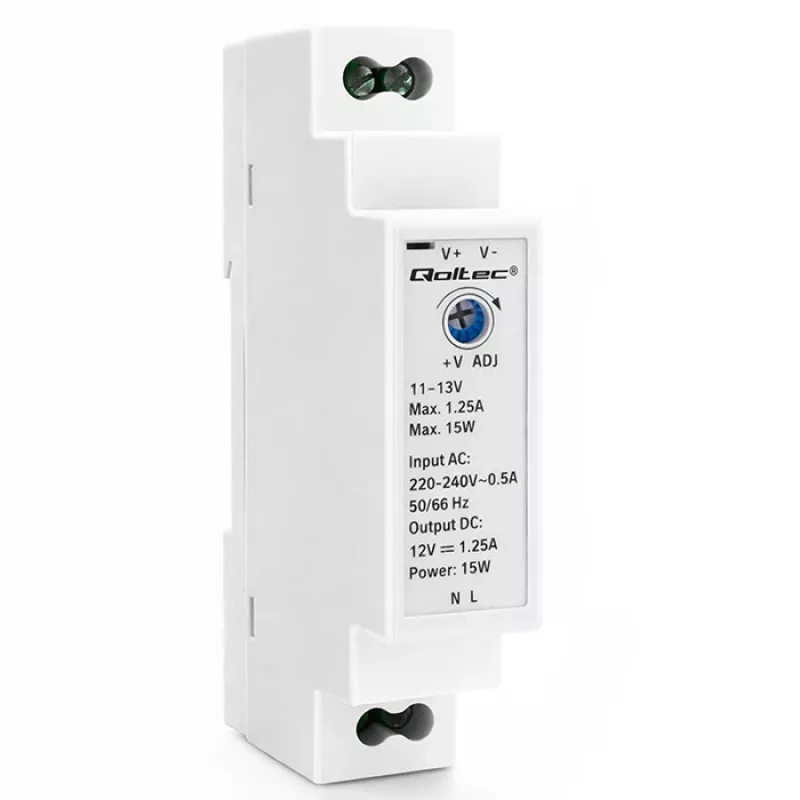

QOLTEC DIN lištový napájací zdroj 15W 12V 1.25A sivý

The QOLTEC DIN Rail Power Supply is a reliable and efficient power solution designed for industrial and commercial applications. With a compact 1-module design, it provides a stable 12V DC output at 1.25A (15W) and is ideal for powering automation systems, control panels, and other DIN rail-mounted devices.

Advantages

High efficiency (>82%) reduces energy waste and heat generation. Built-in protections (overload, short circuit, over voltage) ensure safe operation. Wide input voltage range (100-240V AC) makes it suitable for global use. Compact size saves space on the DIN rail.

Suitable for

• Industrial automation and control systems
• Building management systems
• Security and access control systems
• Telecommunications equipment
• Any application requiring a regulated 12V DC power supply on a DIN rail

Key specifications

• Input: 100-240V AC, 50/60 Hz
• Output: 12V DC, 1.25A, 15W
• Efficiency: >82%
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Protections: Overload (OLP), Short Circuit (SCP), Over Voltage (OVP)
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +80°C
• Humidity: 20-90% RH (non-condensing)
• Insulation Resistance: 100 MΩ / 500VDC (I/P-O/P)
• Dielectric Strength: 3KVAC (I/P-O/P)
• MTBF: >50,000 hours
• Housing Material: Plastic (PC)
• Colour: Grey
• Number of DIN Modules: 1
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the rated output current. This power supply is designed for indoor use only.
