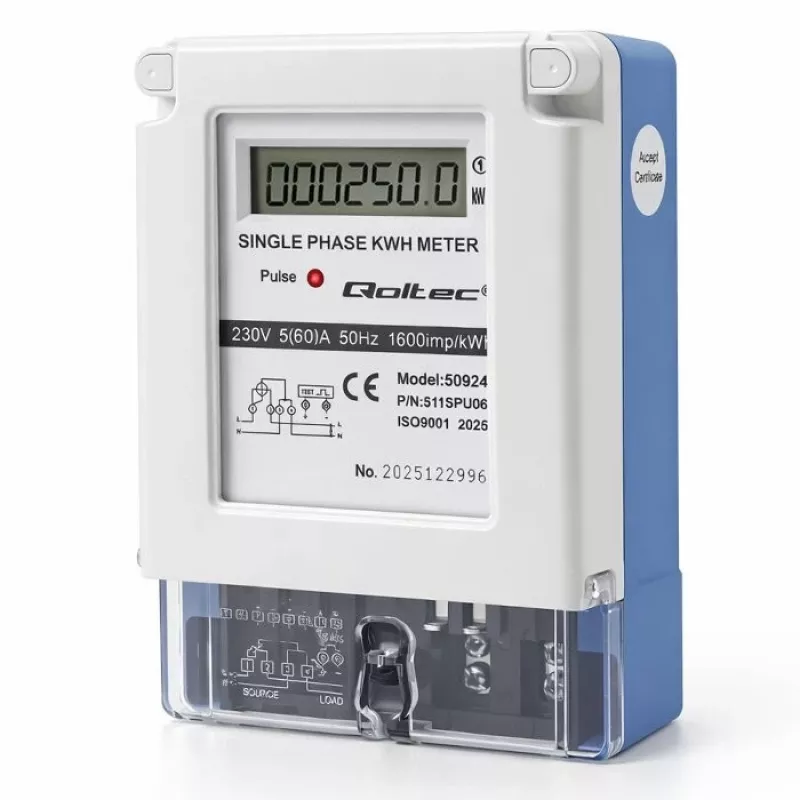

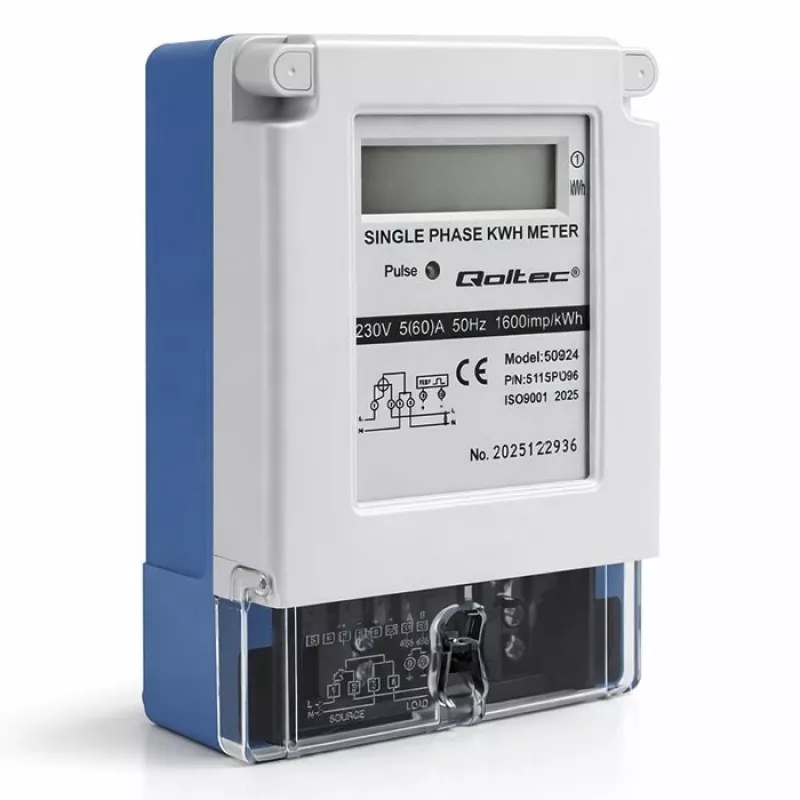

Qoltec jednofázový elektronický elektromer 230V 5(60)A LCD

The Qoltec single-phase electronic energy meter enables real-time monitoring of electricity consumption for single-phase appliances powered by 230V AC at 50/60Hz. Designed for precise measurement and easy installation, this meter is ideal for domestic, industrial, and commercial applications.

Advantages

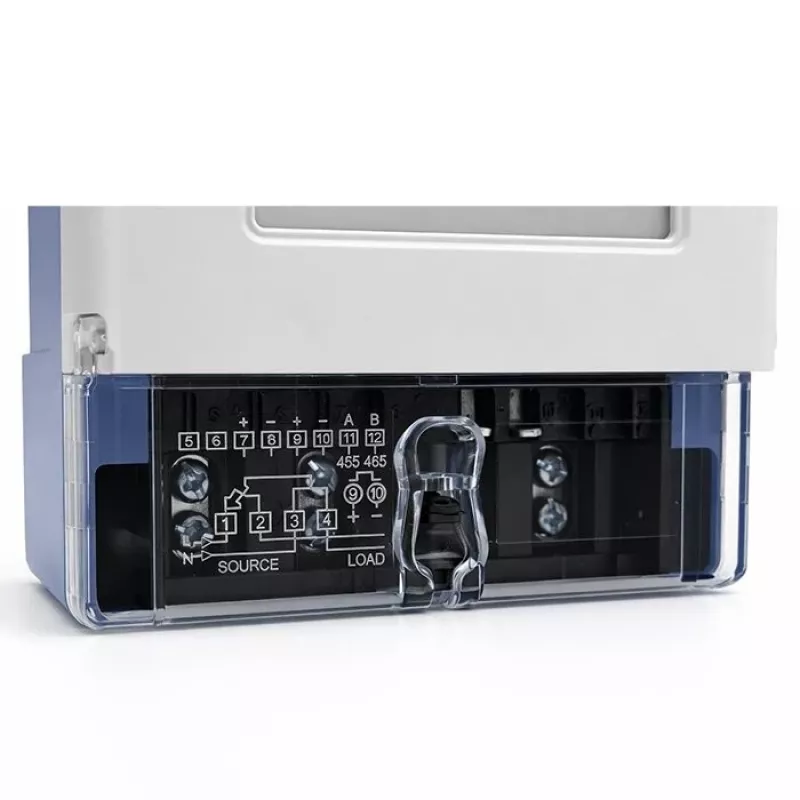

Compact 1 DIN module design fits standard TH35mm DIN rails. The clear LCD display with backlight shows energy consumption in kWh. An LED indicator pulses at 1600 imp/kWh for visual consumption feedback. Transparent terminal cover ensures safe wiring. Complies with IEC 62053-21 and DIN EN50022 standards.

Suitable for

• Home energy monitoring
• Industrial submetering
• Commercial energy management

Key specifications

• Meter type: Single-phase electronic energy meter
• Measurement: Active energy (kWh)
• Display: LCD with backlight
• Nominal voltage: 230V AC
• Nominal current: 5A
• Maximum current: 60A
• Frequency: 50/60 Hz
• Accuracy class: 1
• Mounting: DIN rail (TH35mm)
• Module width: 1 DIN (18mm)
• Pulse output: S0 (1200 imp/kWh)
• Pulse output voltage: 12~27V DC
• Pulse output current: max 27mA
• Operating temperature: -20°C to +55°C
• Protection rating: IP20
• Start current: 0.02A
• Power consumption: <0.8W
• Standards: IEC 62053-21

Recommendations

For accurate energy monitoring and cost optimization, this meter provides reliable performance. Not MID-certified. Ensure installation by a qualified electrician.
