Rack príslušenstvo Lanview RAS800WH biela 50 kg nosnosť 0,5HE

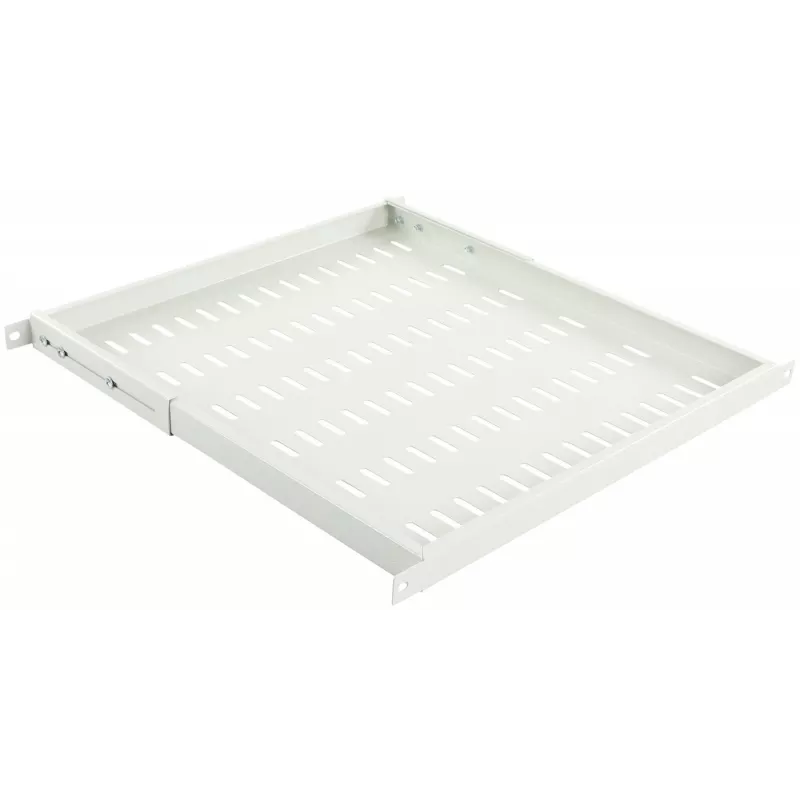

The Lanview RAS800WH is a compact adjustable shelf designed for 19" 1U server cabinets. It provides a flat support surface with ventilation holes and four connection points for secure mounting. Two depth-adjustable side brackets at the rear allow installation at different depths to suit varied cabinet interiors.

Advantages

This adjustable shelf is compatible with LOGON and similar cabinets, offers a maximum static load capacity of 50 kg and a slim 0.5U profile that saves rack space. Its ventilation holes help airflow around stored equipment, and the depth-adjustable brackets allow flexible placement within 19" racks.

Suitable for

• Supporting small network devices, power supplies or accessories in 1U/0.5U racks
• Temporary placement of tools or spare parts inside a 19" cabinet
• Organizing lightweight equipment in office or server room racks

Key specifications

• Model: RAS800WH
• Dimensions (mm): W 475 × D 435 × H 25
• Front panel width: 19" (483 mm nominal)
• Maximum static load: 50 kg
• Color: RAL 7035 (white/grey)
• Mounting: 4 connection points, 2 depth-adjustable rear side brackets

How to use

Mount the shelf inside a compatible 19" cabinet using the four connection points. Adjust the two rear side brackets to the required depth before tightening fasteners so the shelf sits level. Place equipment centrally and avoid concentrating the load at one edge; observe the 50 kg maximum static load.

Recommendations

Install in cabinets that accept 0.5U/1U accessories, distribute weight evenly across the shelf, and maintain airflow through the ventilation holes. Do not exceed the specified 50 kg static load and check fasteners periodically for secure fit.
