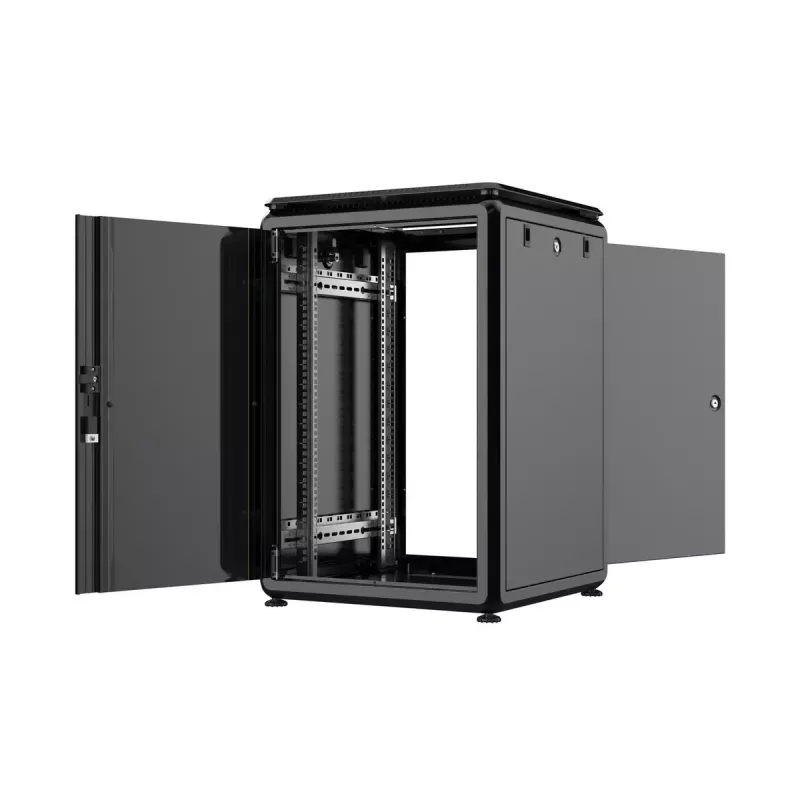

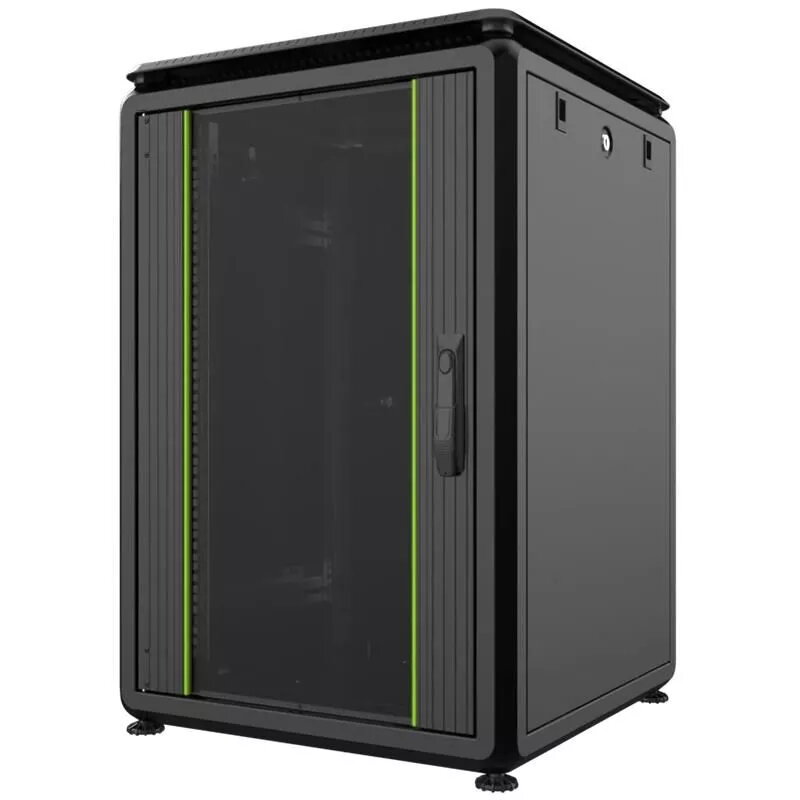

Rack skriňa Lanview RDL16U66BL 16U čierna 600 kg IP20

The Lanview RDL16U66BL is a free-standing 16U rack cabinet with external dimensions W:600 x D:600 x H:897 mm, a maximum load capacity of 600 kg and an IP20 rating for indoor installations. Designed for cabling and server equipment, this black cabinet features adjustable installation rails, a robust metal structure and a split front glass door with a locking handle. It ships in a flatpack option to reduce storage and transport volume and can be assembled and disassembled using simple tools.

Advantages

The cabinet provides a strong, stable enclosure with adjustable installation rails to suit varying depths of equipment. Cable management is simplified by an integrated provision for vertical cable manager modules, a wide bottom cable entry with a rubber-edged sliding entry module and side brackets with tie-up points to secure cable runs. The front uses full-size 4 mm tempered, anti-static, smoke-coloured glass in a decorative metal frame with a handle-lock mechanism; side and rear panels employ barrel locks and the rear door is easily removable to aid installation and maintenance. Flatpack packing lowers storage and transport costs.

Suitable for

• Server and network equipment installations up to 16U
• Office and server room cabling where IP20 indoor protection is sufficient
• Environments requiring organized cable routing and secured access

Key specifications

• Model: Lanview RDL16U66BL (MPN: RDL16U66BL, EAN: 5420016847133)
• Rack capacity: 16U
• External dimensions (W x D x H): 600 x 600 x 897 mm
• Maximum load capacity: 600 kg
• Weight: 24.91 kg
• IP rating: IP20 (indoor use)
• Colour: Black
• Front door: split tempered 4 mm smoke-coloured glass with handle-lock

How to use

Position the cabinet on a level surface in a suitable indoor location. Adjust the installation rails to the required depth for your equipment, mount rails and accessories, then install servers, switches and other 19" rack equipment from the front. Route cables through the wide bottom cable entry and the integrated provision for vertical cable management modules; use the rubber-edged sliding entry to protect cables and close it after routing. Lock the front and side panels when maintenance is complete to secure equipment.

Recommendations

Use the Lanview RDL16U66BL in indoor, climate-controlled environments consistent with IP20 protection. Distribute equipment weight evenly up to the 600 kg limit, secure cables to tie-up points to prevent strain, and use simple hand tools for assembly and disassembly. For installations requiring higher dust or water protection, select a cabinet with a higher IP rating.
