Racková skriňa Lanview RSL36U61BL 36U čierna 600kg IP20

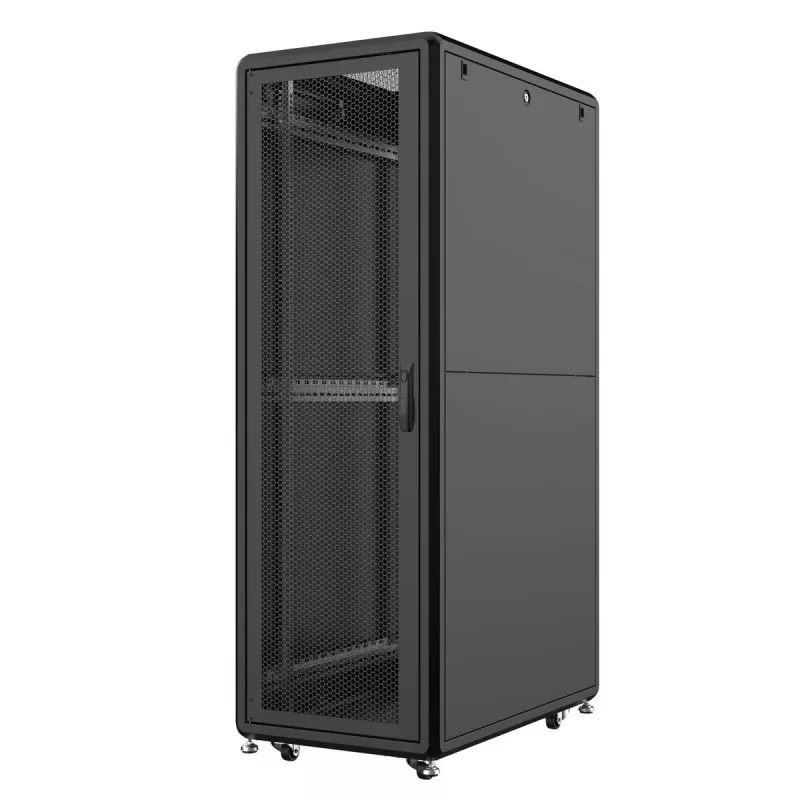

Lanview RSL36U61BL is a free-standing 36U rack cabinet in black, designed for indoor server and networking equipment storage. The cabinet measures approximately 600 x 1000 x 1786 mm and supports a maximum load of 600 kg. Constructed with a robust structure, it provides tool-easy assembly and removable doors and panels to simplify installation, relocation and maintenance. The cabinet includes top and bottom brushed cable entries, a raised roof for passive ventilation and compatibility with vertical cable management modules.

Advantages

The cabinet combines a strong, reinforced frame with easily detachable side panels and rear door for convenient access. Front doors feature lockable, full‑size tempered smoked glass panels with a handle-lock mechanism and horizontally split metal frames for flexible opening direction. Wide rubber-edged sliding cable entry at the bottom and top protects cables and offers dust-resistant sealing. The design supports vertical cable managers and includes multiple support points for increased structural strength.

Suitable for

• Server rooms and data closets
• Network equipment and patch panel installations
• Office IT cabinets and communications racks
• Situations requiring passive ventilation and dust protection

Key specifications

• Rack capacity: 36U
• Dimensions (W x D x H): 600 x 1000 x 1786 mm (approx.)
• Height: 1750 mm
• Depth: 1000 mm
• Width: 600 mm
• Maximum load capacity: 600 kg
• Weight: 85.5 kg
• IP rating: IP20 (indoor use)
• Front door: tempered 4 mm smoked glass, lockable
• Rear door: removable solid metal door with barrel lock
• Cable management: top and bottom brushed cable entries, rubber-edged sliding entry, vertical cable manager compatibility

How to use

Position the cabinet on a level surface and assemble panels and frame using simple hand tools following the included assembly guidance. Install equipment into standard 19" rack rails and route cables through the provided top or bottom brushed entries and the rubber-edged sliding entry to protect wiring and maintain dust resistance. Use the removable side panels and rear door for access during equipment installation, maintenance or relocation. Adjust door opening direction via the spring-loaded hinge system if required.

Recommendations

For reliable indoor operation, install the cabinet in a clean, ventilated environment, avoid exposure to water and heavy dust, and distribute equipment weight evenly across mounting rails. Use the integrated cable management features and secure doors and side panels with the barrel locks to maintain organized, accessible and secure rack installations.
