Racková skriňa Lanview RWMIP55W07U45B 7U čierna IP55 26kg

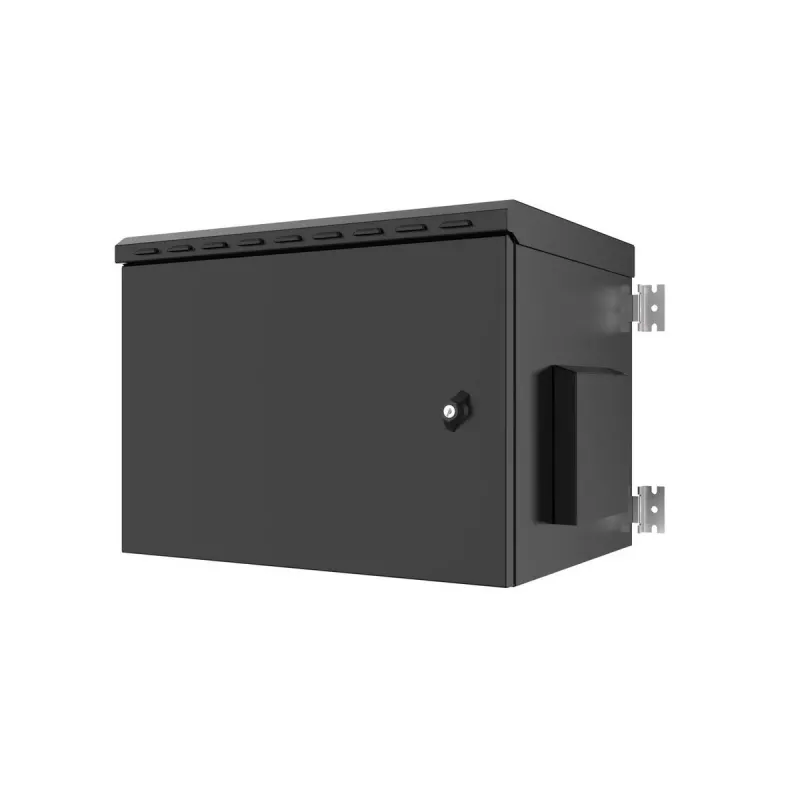

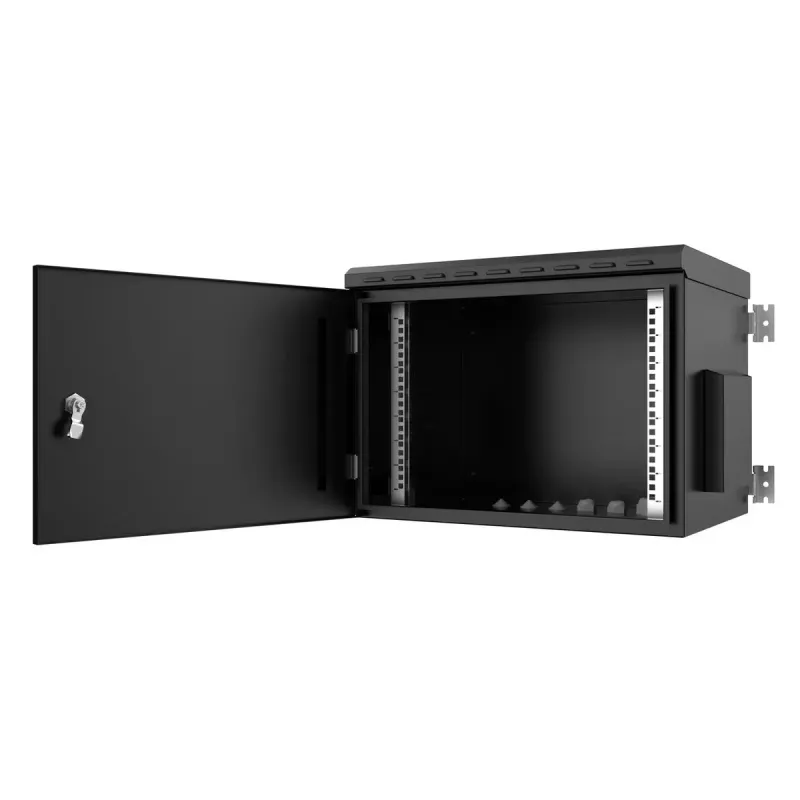

The Lanview RWMIP55W07U45B is a 7U, 19" rack cabinet with dimensions 600 x 450 x 410 mm and a weight of 26 kg. Designed for secure equipment storage, the IP55-rated cabinet protects against dust and water ingress and includes two device mounting rails for 19" devices. Its hinged top cover provides easy access to fan modules, and side-mounted 125×125 dust filters enable passive ventilation together with roof louvers that expel hot air. The cabinet base features multiple cable entry options and a fully detachable bottom closure.

Advantages

The cabinet offers IP55 protection for reliable operation in dusty or damp environments and supports standard 19" equipment with two mounting rails. Access to internal fan modules is simplified by a hinged top cover, while side dust filters and roof louvers provide passive ventilation without requiring additional openings. Multiple gland and plug options at the base allow dense cable entry, and the removable bottom panel facilitates installation and maintenance.

Suitable for

• Mounting 19" network switches, routers and patch panels
• Secure housing for small server or telecom equipment in industrial or semi-outdoor locations
• Environments requiring dust and splash protection (IP55)
• Installations needing organized cable entry and easy bottom access

Key specifications

• Brand: Lanview
• Model: RWMIP55W07U45B
• IP rating: IP55
• Rack capacity: 7U
• Compatible size: 19" devices
• Dimensions (W×D×H): 600 × 450 × 410 mm
• Height (front rail reference): 454 mm
• Weight: 26 kg
• Colour: Black
• Cable entries: 1 × PG48 IP gland, 2 × PG21 IP glands, 3 × 28 mm PVC blind plugs at base
• Ventilation: 125×125 dust filters (left and right) and roof louvers; hinged top cover for fan access

How to use

Place the Lanview 7U cabinet on a stable surface or secure it to a suitable floor mounting arrangement. Install 19" equipment on the two internal mounting rails and route cables through the provided gland entries or removable blind plugs at the base. Use the hinged top cover to access and service fan modules; clean or replace the 125×125 dust filters as needed to maintain passive ventilation. If required, remove the bottom closure for easier installation of cabling and accessories.

Recommendations

For best performance, install the cabinet in a ventilated location and periodically check the dust filters and roof louvers. Ensure cable glands are properly sealed to maintain the IP55 rating and avoid placing heavy equipment that exceeds the 7U capacity or local load limits.
