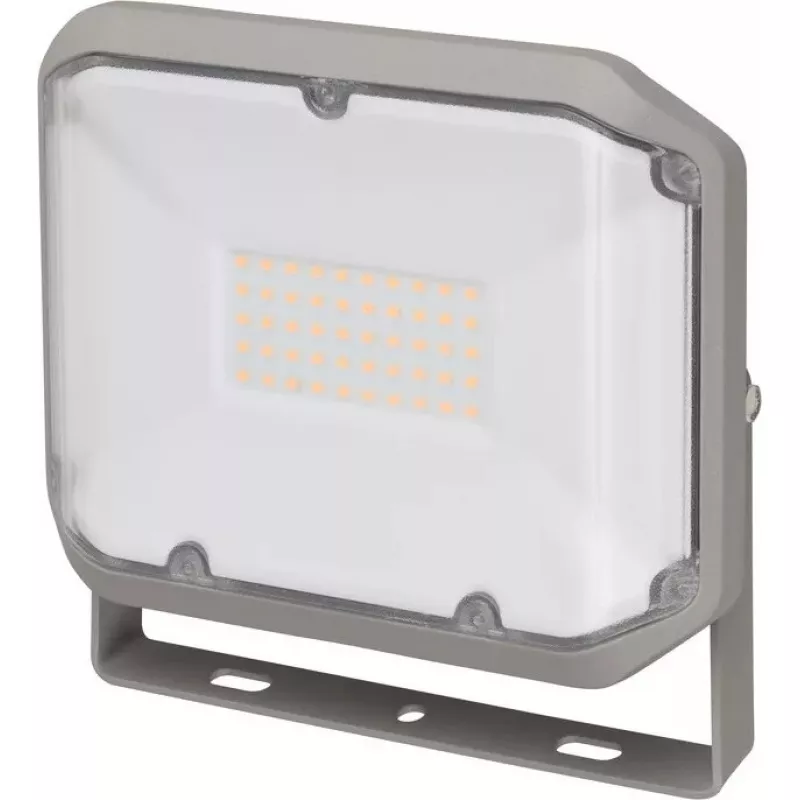

Reflektor Brennenstuhl 1178030900 sivá 30W LED IP44 kov

The Brennenstuhl 1178030900 Floodlight is a 30 W LED wall-mounted spotlight with a grey metal housing and IP44 protection. Designed for both indoor and outdoor use, it operates at 230 V / 50–60 Hz and contains 50 OSRAM SMD LEDs for long service life and uniform, wide-area illumination. Its flat, robust construction and compact size (52 mm width, 216 mm depth, 220 mm height) make it suitable for versatile placement.

Advantages

Energy-efficient 30 W LED performance combined with OSRAM SMD diodes ensures low power consumption and extended lifetime. IP44 classification provides protection against splashing water and ingress of solid objects, allowing safe outdoor use. The metal housing offers robustness while the slim design reduces visual bulk and simplifies wall mounting.

Suitable for

• Outdoor wall illumination of porches, driveways and building facades
• General exterior security and area lighting
• Indoor utility areas such as garages or workshops

Key specifications

• Brand: Brennenstuhl
• Model / MPN: 1178030900
• Power: 30 W
• LEDs: 50 OSRAM SMD
• Protection class: IP44
• Supply: 230 V, 50–60 Hz
• Colour: Grey
• Material: Metal housing
• Dimensions: 52 × 216 × 220 mm (W × D × H)
• Weight: 0.86 kg
• EAN: 4007123675746

How to use

Mount the floodlight on a suitable vertical surface using appropriate screws and plugs for the substrate. Connect to a 230 V mains supply following local electrical regulations; if unsure, have installation performed by a qualified electrician. Adjust the angle of the fixture as required to achieve the desired illumination pattern. Ensure the unit is securely fastened and the connection is protected from direct water exposure despite the IP44 rating.

Recommendations

For long-term performance, avoid covering the fixture and clean the housing periodically to remove dirt. Use the floodlight for general area lighting rather than focused task lighting; for permanent outdoor installations check mounting points and seals annually.
