Riser PCIe x8 DeLOCK 89104

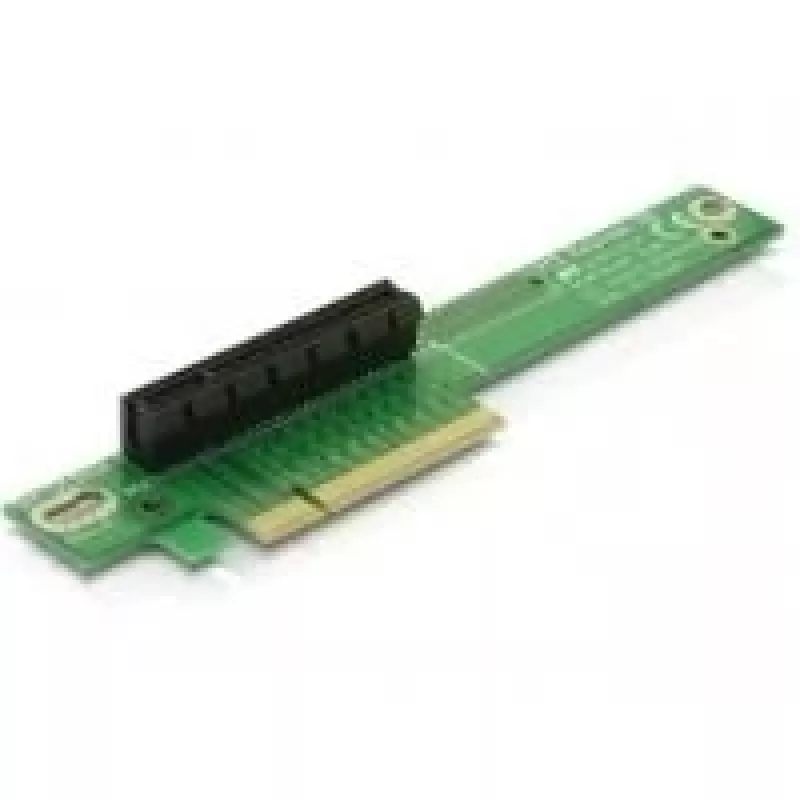

This riser card allows connection of a PCI Express x8 card to a motherboard PCI Express slot at a 90° angle, enabling horizontal installation in space-constrained systems such as 1U server cases. It provides a PCIe host interface and a PCIe output interface suitable for internal PC use and supports installation in 19-inch 1U racks.

Advantages

The DeLOCK Riser PCIe x8 89104 offers a compact solution for mounting PCIe x8 cards where vertical installation is impossible. Its low mounting height minimizes interference with other components while maintaining a direct PCIe x8 connection for high-speed data transfer. The left insertion design and dimensions are matched to standard 1U, 19-inch enclosures.

Suitable for

Key specifications

How to use

Install the riser card inside the PC chassis by aligning the PCIe host connector with the motherboard PCIe slot and securing the card according to your chassis mounting points. Ensure the card is oriented for left insertion and that the mounting height (24 mm) and complete height (32 mm) clear other components. This adapter is intended for internal use only; connect the PCIe x8 card to the riser output and verify secure seating before powering the system.

Recommendations

Use this riser in compatible 1U, 19-inch cases and verify that connected PCIe x8 cards do not exceed the available clearance. Handle the card with anti-static precautions and ensure the motherboard BIOS and operating system support the installed PCIe device.
