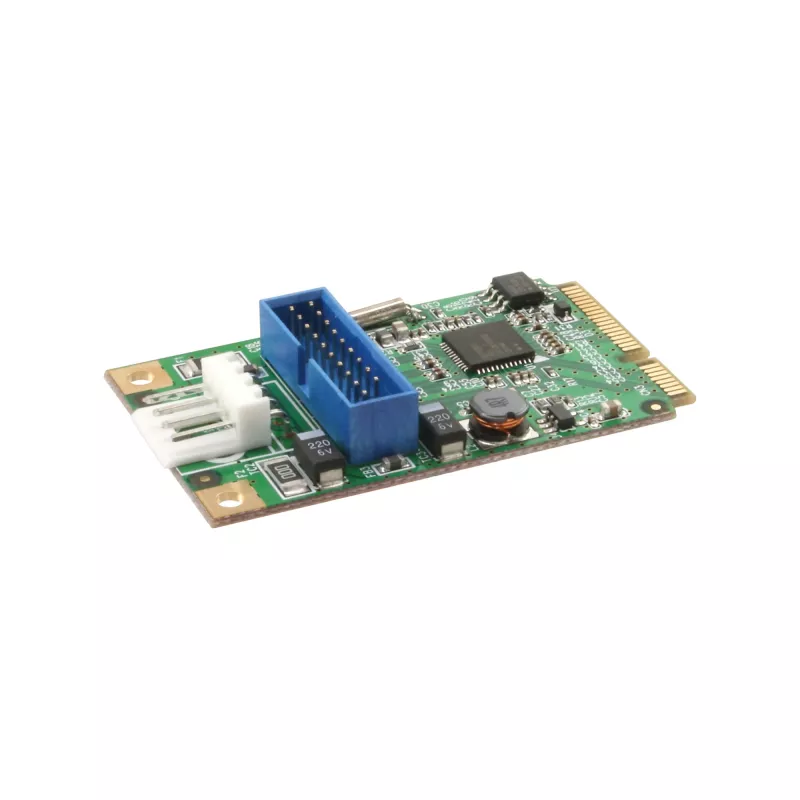

InLine Mini-PCIe karta 2x USB 3.0

This Mini-PCIe card provides two USB 3.2 Gen 1 ports (SuperSpeed USB) for systems with a Mini PCI Express slot. Compliant with USB 3.0 specification revision 1.0 and PCI Express Gen 2, the card supports full-duplex data transfer at up to 5 Gbps and is backward compatible with USB 2.0 devices (High-, Full- and Low-Speed). It is intended for embedded or compact systems that need higher-volume, higher-speed wired connectivity to external storage, optical drives, cameras and other USB peripherals.

Advantages

The card delivers two SuperSpeed USB 3.2 Gen 1 ports providing up to 5000 Mbit/s aggregate transfer per port, offering a significant speed increase over USB 2.0. Its Mini PCI Express host interface makes it suitable for small form-factor and embedded systems. Backward compatibility with USB 2.0 devices ensures support for a wide range of peripherals without additional adapters.

Suitable for

• Adding high-speed USB ports to embedded or small-form-factor systems
• Connecting external hard drives and SSDs for faster file transfer
• Attaching optical drives and HD video cameras
• Expanding USB connectivity in industrial or specialized equipment

Key specifications

• Brand: InLine
• Model: Mini-PCIe Card 2x USB 3.0 (MPN: 66900, EAN: 4043718192922)
• Host interface: Mini PCI Express (Mini PCIe)
• Output: 2 × USB 3.2 Gen 1 (SuperSpeed USB, 5 Gbps)
• Backward compatibility: USB 2.0 High-Speed (480 Mbps), Full-Speed (12 Mbps), Low-Speed (1.5 Mbps)
• Internal: Yes

How to use

Install the card into an available Mini PCI Express slot on a compatible motherboard or embedded system, following the device and system manufacturer's instructions for handling and grounding. After physical installation, power on the system and install any required drivers supplied by the system or available from the hardware vendor. Connect USB devices to the two external ports to begin using the added USB 3.2 Gen 1 connectivity.

Recommendations

Do not use drivers-download websites that are unrelated to the manufacturer; the original product documentation warns that a site named 'Drivers-Download' is being misused for phishing and should be avoided. Obtain drivers only from trusted sources such as the system manufacturer, InLine support, or verified vendor pages.
