Rittal AX 1016.000 kompaktná skriňa 800 x 1000 x 300 mm nerezová oceľ

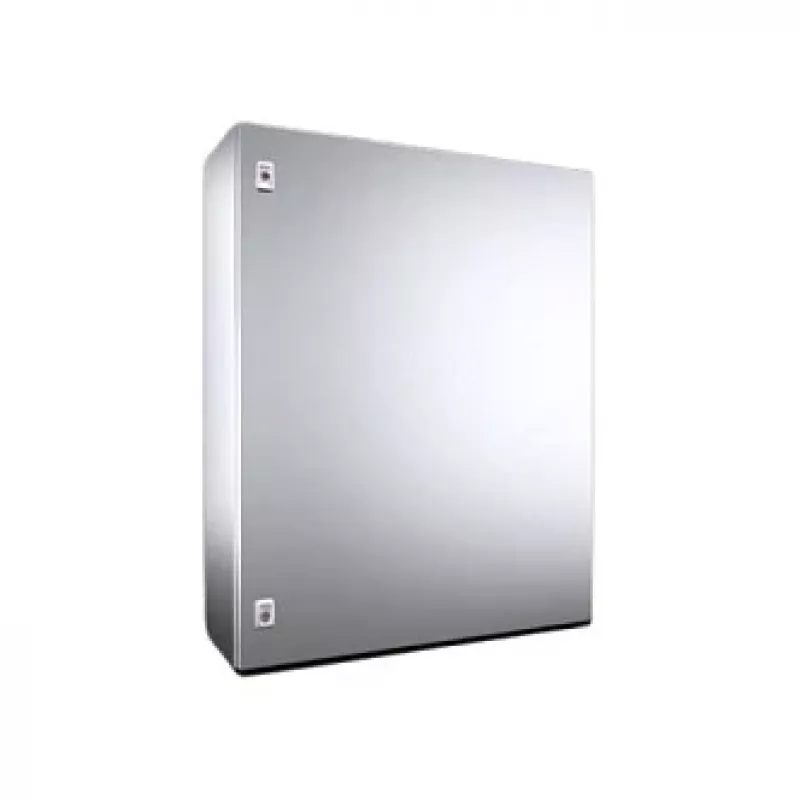

The Rittal AX 1016.000 is a high-quality compact enclosure designed for wall-mounted installation in demanding industrial environments. Manufactured from stainless steel 1.4301 (AISI 304) with a brushed finish (grain 400), this enclosure offers exceptional corrosion resistance and durability. With dimensions of 800 x 1000 x 300 mm (H x W x D), it provides ample space for housing electrical and electronic components. The enclosure features a single door with a 130° opening angle, hinged on the right (reversible), and a 3 mm double-bit lock (interchangeable) for secure access. It is rated IP66 (IEC 60529) and NEMA 4X (UL 508A), making it suitable for outdoor and washdown applications. The multi-piece gland plate at the bottom facilitates cable entry, and a galvanised steel mounting plate (2.5 mm thick, max load 100 kg) is included. Approvals include UL, cUL, TÜV, Germanischer Lloyd, EAC, and VDE.

Advantages

High corrosion resistance due to stainless steel construction; IP66/NEMA 4X protection for harsh environments; reversible door for flexible installation; interchangeable lock insert for custom security; included mounting plate simplifies component installation.

Suitable for

• Industrial automation and control cabinets
• Outdoor electrical installations
• Food and beverage industry (washdown areas)
• Marine and offshore applications
• Chemical and pharmaceutical plants

Key specifications

• Material: Stainless steel 1.4301 (AISI 304), brushed grain 400
• Protection: IP66, NEMA 4X
• Dimensions (H x W x D): 800 x 1000 x 300 mm
• Door: Single, hinged right (reversible), opening angle 130°
• Lock: 3 mm double-bit (interchangeable)
• Gland plate: Multi-piece, bottom

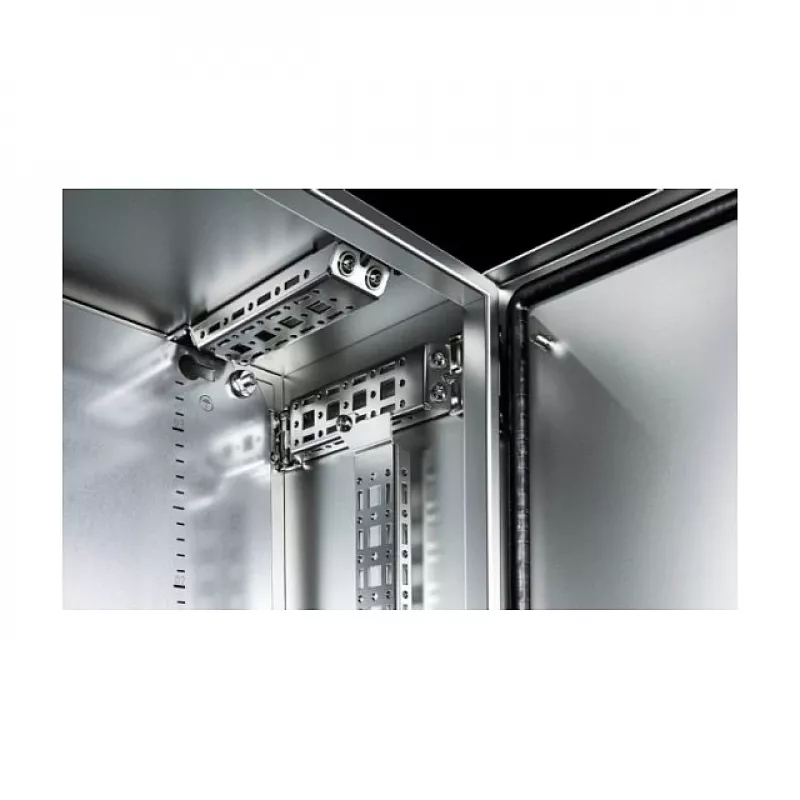

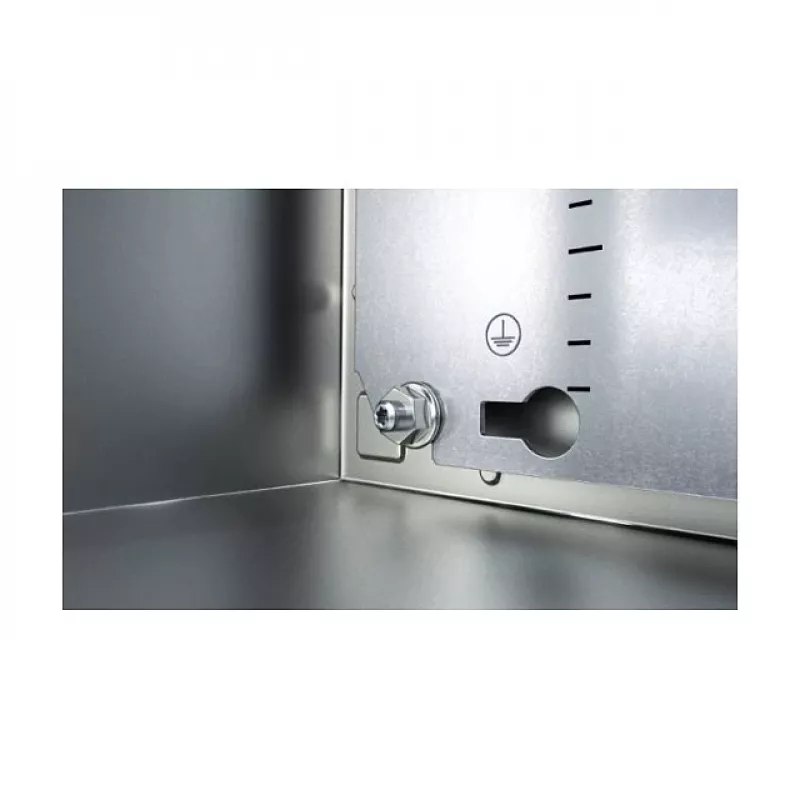

• Mounting plate: Galvanised steel, 2.5 mm, max load 100 kg
• Material thickness: Enclosure 1.25 mm, door 1.5 mm
• Operating temperature: -20°C to +60°C
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE

Recommendations

For wall mounting, order Rittal wall mounting brackets separately (not included). Ensure adequate ventilation if internal heat generation is high. This enclosure is ideal for applications requiring high hygiene and corrosion resistance.
