Rittal RiLine SV pripojovací kábel 35 mm² 800 mm PVC M8 káblové očká 9340.860

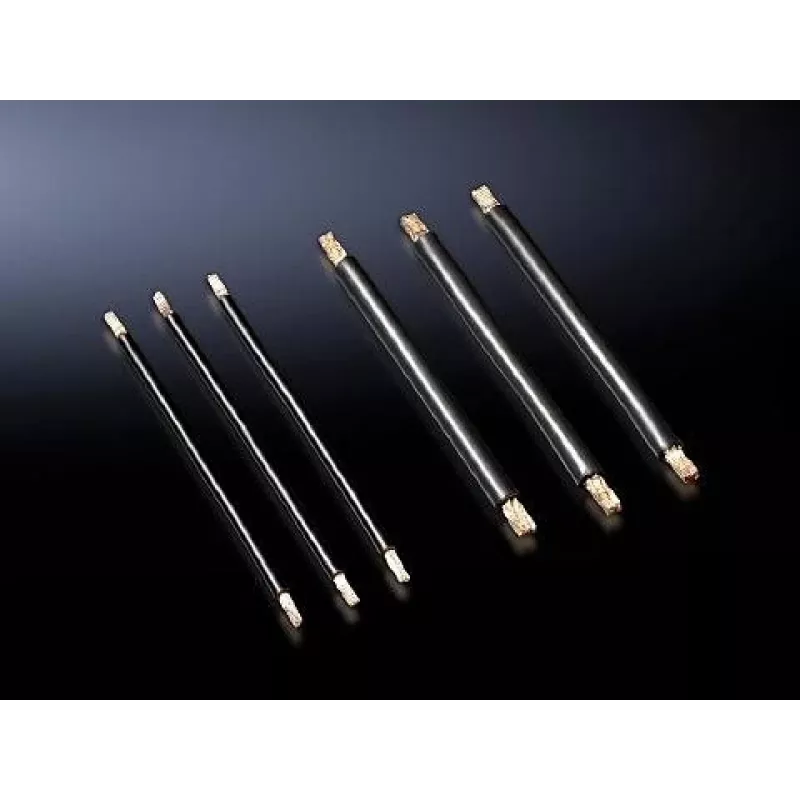

Connection cable for the RiLine SV busbar system, engineered for reliable power distribution in industrial control panels. This 800 mm cable with 35 mm² copper conductors and PVC insulation handles up to 125 A at 1000 V AC/DC, providing a robust link between busbar components and connected equipment. Pre-terminated with M8 ring lugs on both ends, it simplifies installation and ensures secure, low-resistance connections.

Advantages

The cable's high current capacity and voltage rating make it suitable for demanding power distribution tasks. Its flexible PVC insulation and stranded copper conductors allow easy routing within enclosures, while the pre-attached ring lugs eliminate the need for on-site crimping, reducing assembly time and potential errors. The black insulation offers good visibility and resistance to abrasion, and the cable complies with IEC 61439-1 and carries UL approval, ensuring safety and reliability.

Suitable for

• Connecting components to RiLine SV busbar systems in industrial control panels
• Power distribution in switchgear and motor control centers
• Applications requiring a flexible, high-current connection up to 125 A
• Use in environments with operating temperatures from -25 °C to +70 °C

Key specifications

• Product type: Connection cable
• System compatibility: RiLine SV busbar system
• Conductor cross-section: 35 mm²
• Cable length: 800 mm
• Rated operating voltage: 1000 V AC/DC
• Rated current: 125 A
• Insulation material: PVC (Polyvinyl Chloride)
• Conductor material: Copper
• Number of poles: 1
• Connection type: Ring cable lug M8 (both sides)
• Cable colour: Black
• Operating temperature range: -25 °C to +70 °C
• Protection category: IP00
• Standards compliance: IEC 61439-1
• Approvals: UL
• Packaging unit: 1 pc(s)

Recommendations

For optimal performance, ensure the cable is installed in a protected environment (IP00 rating) and that the M8 ring lugs are properly torqued according to manufacturer specifications. This cable is ideal for OEM panel builders and maintenance technicians seeking a reliable, pre-assembled solution for RiLine SV systems.
