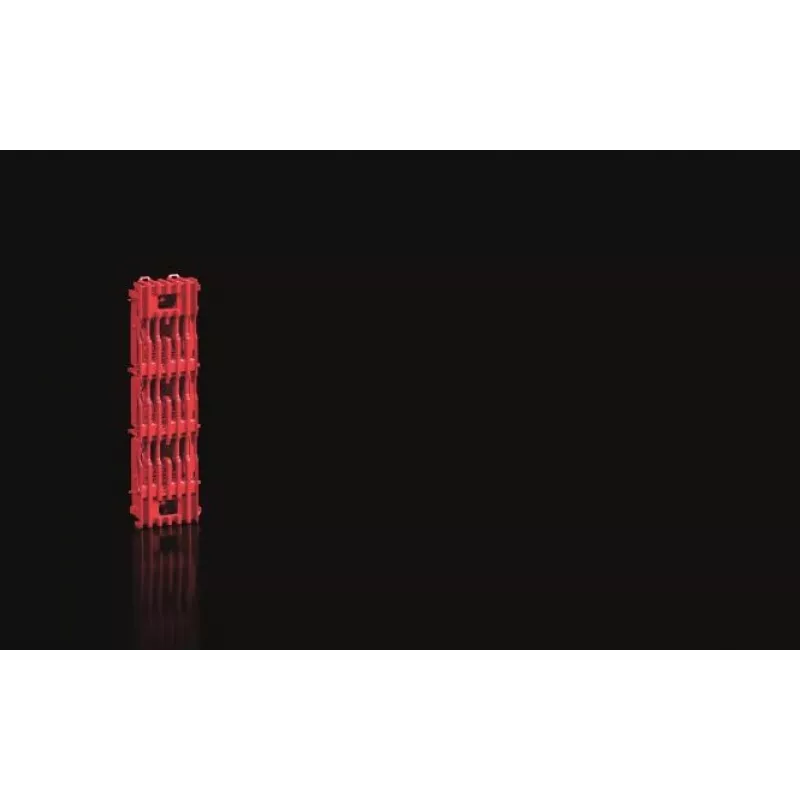

Rittal RiLineX základný modul RX L 54 mm 9360150

The Rittal RiLineX Base Module RX L is a core component of the RiLineX busbar system, providing a 54 mm wide base for direct mounting of devices. Its polyamide construction ensures durability and electrical insulation.

Advantages

Designed for 3-pole and 4-pole busbar systems up to 1600 A, this module offers flexibility in power distribution. The light grey (RAL 7035) housing blends seamlessly into standard enclosures, while the UL 94 V-0 flammability rating enhances safety.

Suitable for

• RiLineX busbar systems in industrial control panels
• Mounting of circuit breakers, fuse holders, and other modular devices
• Applications requiring IP20 protection in enclosed installations

Key specifications

• Nominal width: 54 mm
• Height: 160 mm, Depth: 110 mm
• Material: Polyamide (PA)
• Colour: RAL 7035 (Light Grey)
• Max. system voltage: 690 V AC
• Max. system current: up to 1600 A
• Operating temperature: -25 °C to +70 °C

Recommendations

For optimal performance, pair with Rittal RiLineX busbar supports and end caps. Ensure proper torque when mounting to maintain IP20 protection.
