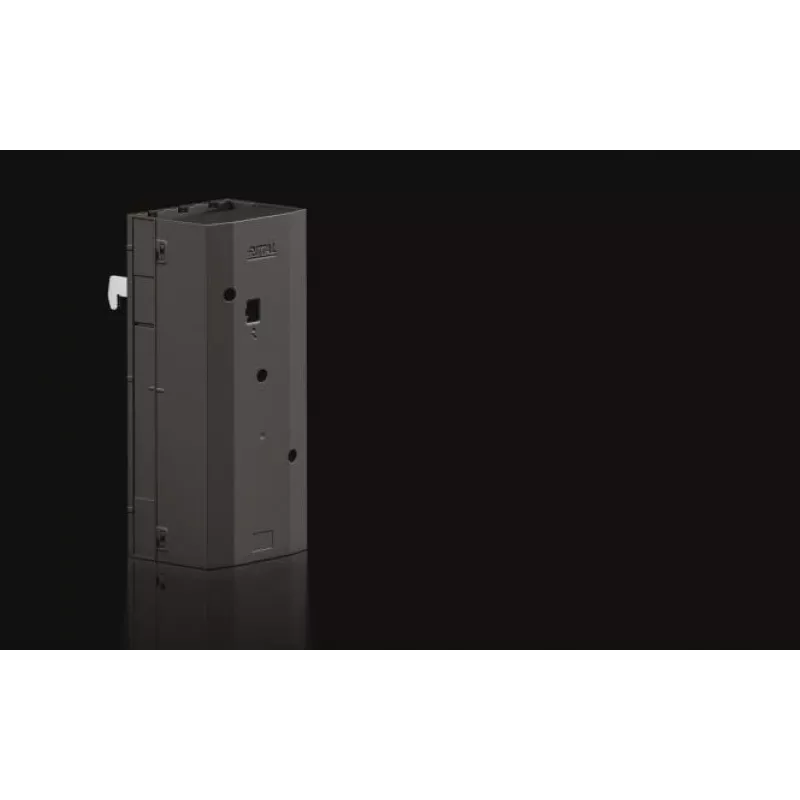

Rittal RiLine60 pripojovací adaptér RX 9360220, 3-pólový, 150 mm², 320 A, 690 V

For panel builders and electrical installers working with Rittal RiLine60 busbar systems, this connection adapter provides a secure screw connection point for round conductors up to 150 mm². It mounts directly onto the busbar and is rated for 320 A at 690 V AC, making it suitable for power distribution in industrial control cabinets and switchgear assemblies.

Key specifications

• 3-pole connection adapter for RiLine60 busbar systems
• Max. conductor cross-section: 150 mm² (solid or flexible with ferrule)
• Rated current: 320 A; rated operating voltage: 690 V AC
• Screw connection; IP20 protection; light grey (RAL 7035)
• Material: polyamide and copper; flammability UL 94 V-0

Why choose it

The adapter's high current rating and large conductor capacity make it a reliable choice for demanding power distribution tasks. Its polyamide housing provides insulation and mechanical stability, while the copper contacts ensure low resistance and efficient power transfer.

Ideal use cases

• Connecting large cross-section cables to RiLine60 busbars in industrial panels
• Power feed-in or tap-off points in switchgear and motor control centers
• Retrofitting or expanding existing RiLine60 installations

Good to know

The adapter is designed for use within an enclosure and offers IP20 protection, meaning it is intended for installation in a controlled environment. It is rated for operating temperatures from -20 °C to +70 °C.
