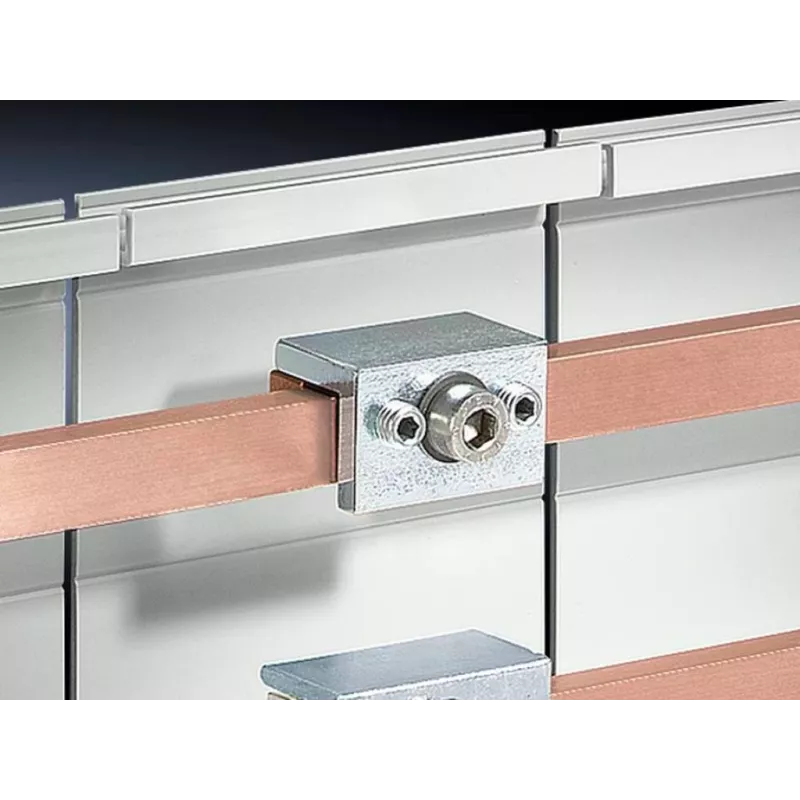

Rittal SV prúdnicový jednotlivý spoj 9350.075 (balenie 3 ks) pre ploché medené prúdnice, 1600 A, 1000 V, čierna

Rated for up to 1600 A and 1000 V AC/DC, this single connector from Rittal's SV busbar system delivers uncompromising power distribution in switchgear and control panels. The set includes three connectors, each engineered for flat copper busbars with thicknesses from 5 to 10 mm.

Overview

The Rittal SV busbar single connector (model 9350.075) provides a reliable screw connection for 1-pole busbar joining. Made from electrolytic copper (E-Cu) contacts and polyamide insulation, it ensures low resistance and high mechanical strength. The connector is designed for direct mounting onto busbars, simplifying assembly in power distribution applications.

What stands out

• High current capacity: up to 1600 A (system dependent)
• Wide voltage rating: 1000 V AC/DC
• Compatible with flat copper busbars 5–10 mm thick
• Robust E-Cu contacts for excellent conductivity
• Flame-retardant polyamide insulation in black
• Pack of 3 connectors for multiple joints
• Complies with IEC 61439 standards

Technical details

• Product type: Busbar connector
• Connector type: Single connector
• System compatibility: Rittal SV busbar system
• Busbar material compatibility: Flat copper busbars
• Contact material: E-Cu (electrolytic copper)
• Insulation material: Polyamide (PA)
• Rated current (max.): 1600 A
• Rated voltage (max.): 1000 V AC/DC
• Connection method: Screw connection
• Number of poles: 1-pole
• Busbar thickness compatibility: 5–10 mm
• Standards compliance: IEC 61439
• Color (insulation): Black
• Operating temperature range: -5 °C to +55 °C
• Mounting type: Direct connection to busbar
• Pack quantity: 3 pieces

Our verdict

For professionals who demand secure, high-current busbar connections, the Rittal SV single connector is a dependable choice. Its rugged construction and compliance with IEC 61439 make it suitable for demanding industrial environments.
