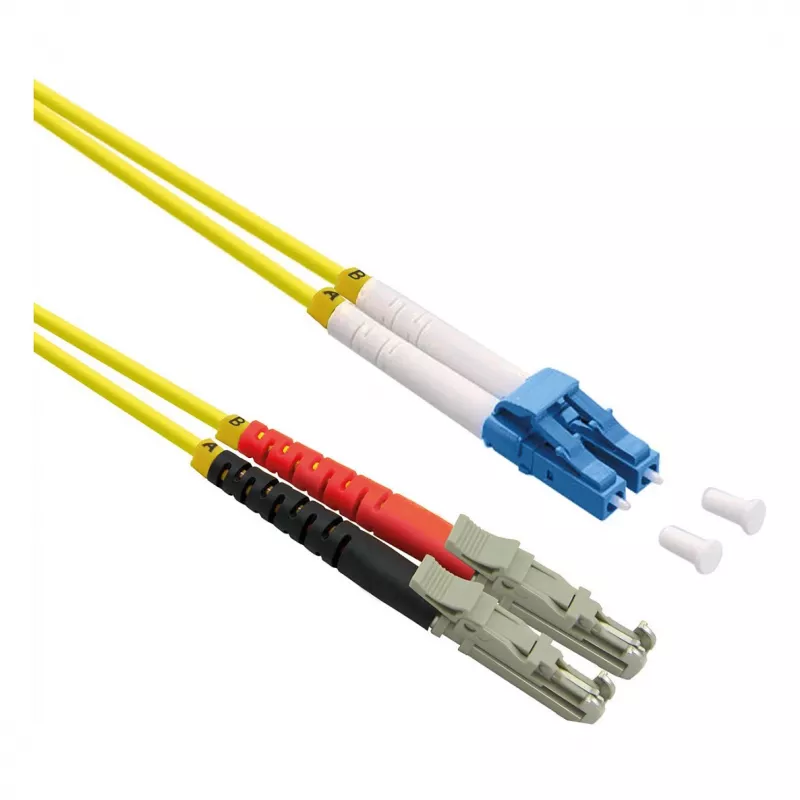

ROLINE optický patch kábel duplex 9/125µm OS2, LSH APC / LC UPC, LSOH, žltý, 2 m

The ROLINE LWL-Kabel duplex 9/125µm OS2 is a high-quality fiber optic patch cable designed for reliable singlemode transmission. With LSH (E2000) APC to LC UPC connectors, this cable ensures low insertion loss and high return loss, making it ideal for demanding network environments. The LSOH (Low Smoke Zero Halogen) jacket provides safety in case of fire, and the yellow color indicates singlemode fiber.

Advantages

This cable offers excellent signal integrity with insertion loss < 0.3 dB and return loss > 60 dB (LSH APC) and > 50 dB (LC UPC). The duplex construction allows bidirectional communication, and the 2-meter length is perfect for patch panel to equipment connections. LSOH material reduces toxic smoke and halogen emissions, enhancing safety in confined spaces.

Suitable for

• High-speed data networks (10G, 40G, 100G)
• FTTx (Fiber to the x) deployments
• Storage Area Networks (SAN)
• Local Area Networks (LAN) and data centers

Key specifications

• Fiber Mode: Singlemode OS2
• Core/Cladding: 9/125 µm
• Connector A: LSH (E2000) APC
• Connector B: LC UPC
• Cable Length: 2 m
• Jacket Material: LSOH
• Cable Color: Yellow
• Insertion Loss: < 0.3 dB
• Return Loss: > 60 dB (A), > 50 dB (B)
• Attenuation: ≤ 0.35 dB/km @ 1310nm, ≤ 0.25 dB/km @ 1550nm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice closures. This cable is compatible with standard SFP/SFP+ transceivers.
