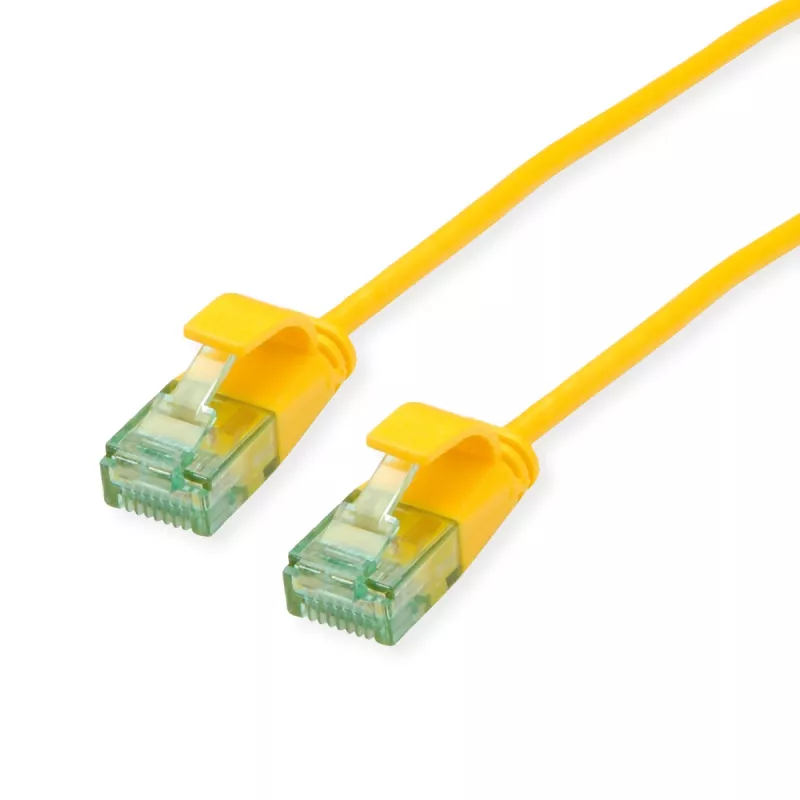

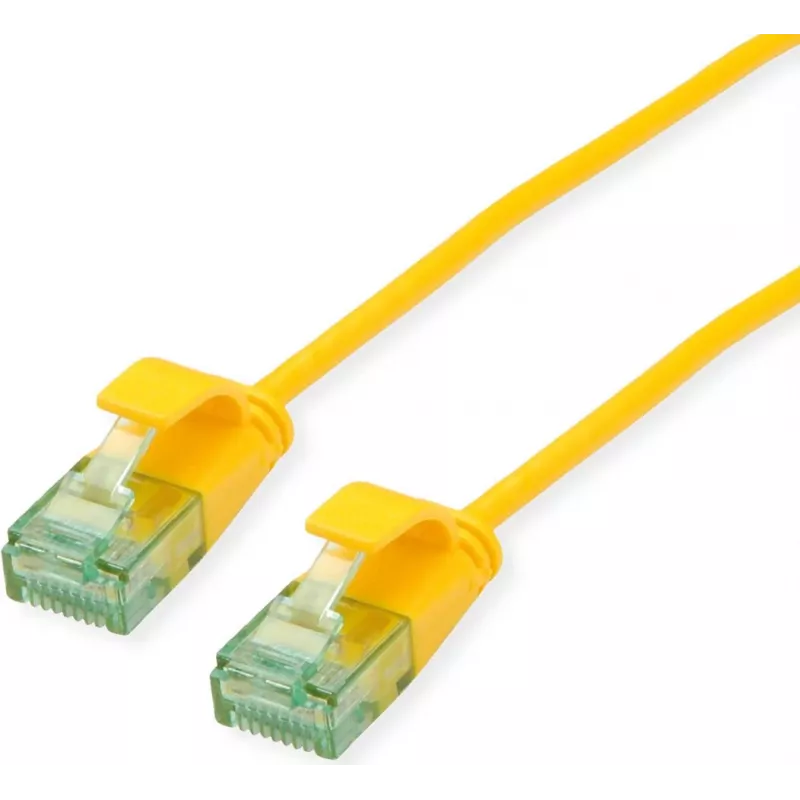

ROLINE RM UTP patch kábel Cat.6A/Class EA SLIM žltý 1m 21.45.3423

Supports 10 Gigabit Ethernet with a 500 MHz bandwidth, this slim Cat.6A UTP patch cable delivers high-speed connectivity in a space-saving design.

Overview

The ROLINE RM UTP Patch Cable Cat.6A/Class EA SLIM in yellow is a 1-meter unshielded twisted pair cable with RJ45 male connectors on both ends. Its slimline construction reduces clutter in high-density installations while maintaining full Cat.6A performance.

What stands out

• 10 Gigabit Ethernet support (10GBASE-T) for demanding network applications
• 500 MHz bandwidth for stable, high-frequency transmission
• Slim cable with an outer diameter of approximately 3.6 mm for easy routing and improved airflow
• Stranded copper conductors (28 AWG) for flexibility and durability
• Gold-plated contacts for reliable, corrosion-resistant connections
• Straight-through wiring (TIA/EIA-568B) for standard network equipment compatibility
• PoE support up to 4PPoE/PoE++ for powering devices over the same cable

Technical details

• Cable type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: UTP (Unshielded Twisted Pair)
• Length: 1.0 m
• Colour: Yellow
• Connector type: RJ45 Male (both ends)
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor material: Copper
• Conductor gauge: 28 AWG
• Cable construction: Stranded
• Jacket material: PVC
• Connector plating: Gold-plated contacts
• Wiring standard: TIA/EIA-568B (Straight-through)
• PoE support: PoE, PoE+, 4PPoE/PoE++
• Design feature: Slimline Cable
• Outer diameter: 3.6 mm
• Halogen-free: No
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A high-performance, space-saving patch cable ideal for modern networks requiring 10G speeds and PoE++ support, with a slim profile that simplifies cable management.
