Rozbočovač káblov Televes 234650

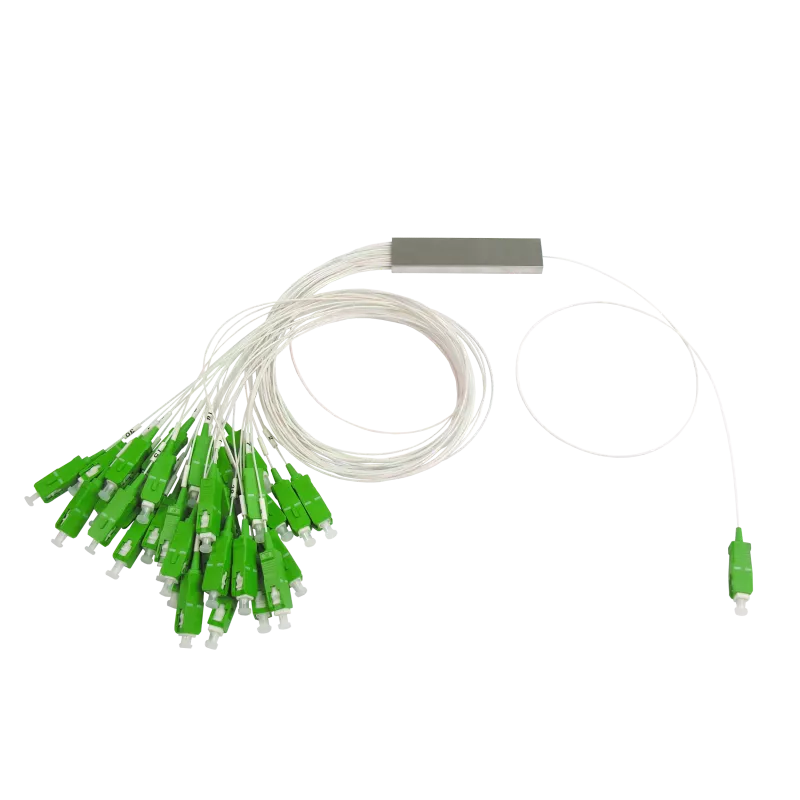

The Televes 234650 cable splitter is a 32-way PLC (planar lightwave circuit) splitter with male SC/APC connectors, designed for optical signal distribution across the 1260 nm to 1650 nm wavelength range. Its compact form factor and availability in green and white colors make it suitable for mounting inside distribution boxes or rack trays for residential and commercial fiber installations.

Advantages

The splitter provides uniform signal division across 32 outputs and uses SC/APC connectors for low back-reflection in passive optical networks. Its compact and robust construction supports reliable performance in varied installation environments and simplifies integration into standard mounting boxes or rack trays.

Suitable for

• FTTH and FTTx passive optical networks
• Optical distribution in apartment buildings and residential complexes
• Commercial and enterprise fiber distribution cabinets
• Splicing and patch panel installations in rack trays

Key specifications

• Type: 32-way PLC splitter
• Connectors: male SC/APC
• Wavelength range: 1260 nm–1650 nm
• Brand: Televes
• MPN: 234650
• EAN: 8424450184912

How to use

Mount the splitter inside a compatible distribution box or rack tray, secure the unit according to the enclosure manufacturer’s instructions, and connect the incoming fiber to the input SC/APC connector. Route and connect the output fibers to the subscribers’ or distribution ports using SC/APC connectors or appropriate pigtails. Ensure proper fiber management and strain relief to maintain signal integrity.

Recommendations

Handle fibers and SC/APC connectors with care; keep connectors capped when not in use, clean end-faces before mating, and follow standard fiber-optic installation practices to minimize insertion loss and back-reflection.
