Rozhranie karta DeLOCK 62725 interná M.2

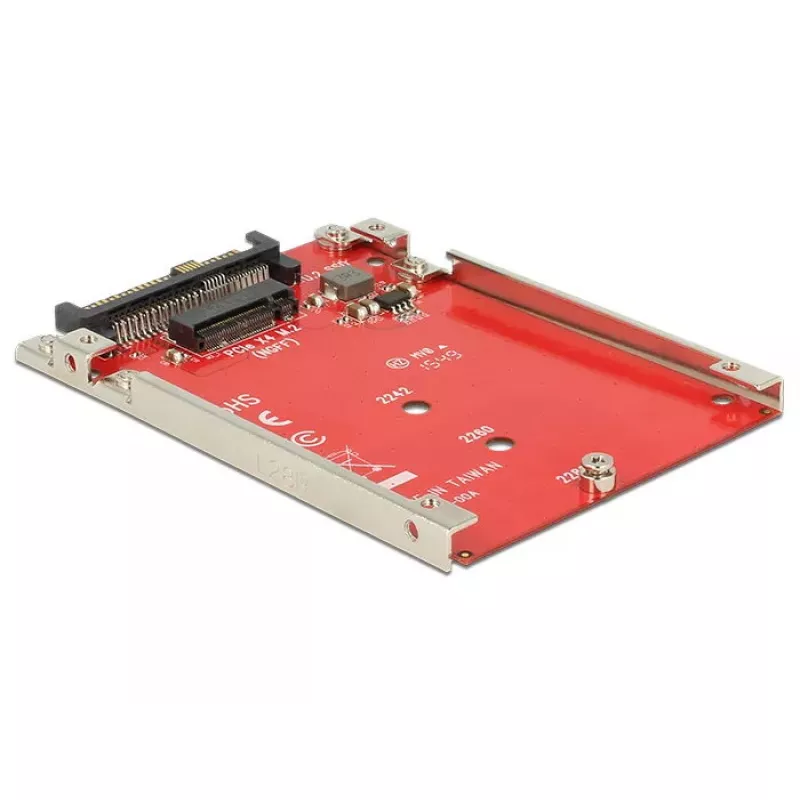

This DeLOCK 62725 internal interface card allows installation of an M.2 SSD in 2280, 2260 and 2242 form factors and connects via a U.2 68‑pin interface for internal system integration. The card uses a PCIe host interface and has a compact profile (70 mm × 100 mm × 7 mm) with typical power consumption around 16.5 W, making it suitable for upgrading desktop or server systems that support U.2 connections.

Advantages

The card supports multiple M.2 lengths (2280, 2260, 2242) and provides an internal U.2 68‑pin connection for direct integration into systems with U.2 headers. Its PCIe host interface ensures high-bandwidth access to M.2 SSDs, while the small physical dimensions allow installation in systems with limited space. Compatibility with various Windows editions is documented for straightforward driver support.

Suitable for

• Adding an M.2 SSD to a desktop or server with a U.2 internal connector
• Systems requiring support for 2280, 2260 or 2242 M.2 modules
• Upgrading storage performance using a PCIe-connected M.2 drive

Key specifications

• Brand: DELOCK
• Model / MPN: 62725
• Host interface: PCIe

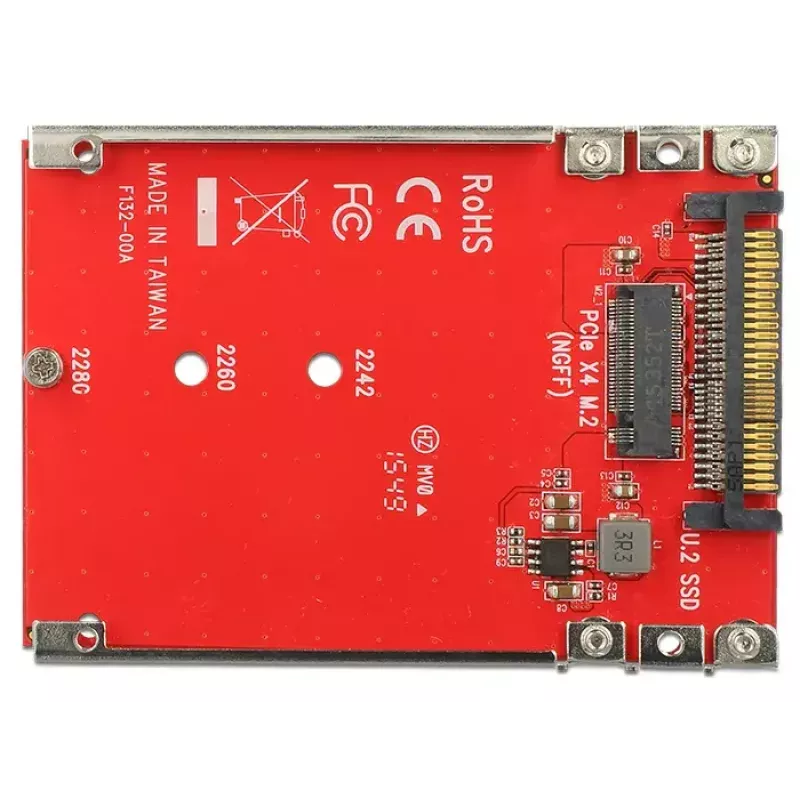

• Output interface: M.2 (supports 2280, 2260, 2242)
• Internal connection: U.2 68‑pin

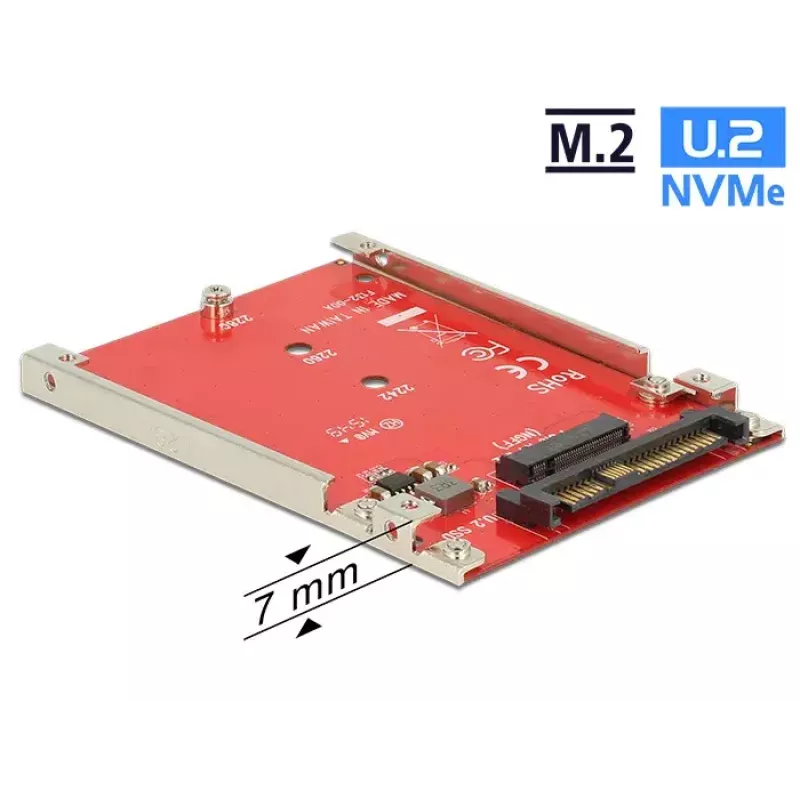

• Dimensions: 70 mm (W) × 100 mm (D) × 7 mm (H)
• Typical power consumption: 16.5 W

How to use

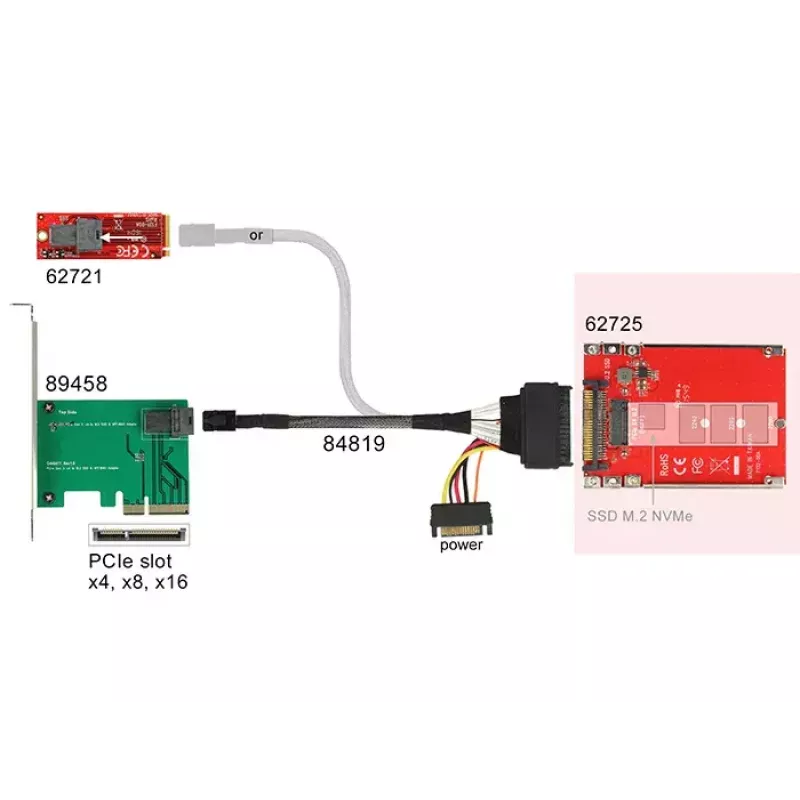

Install a compatible M.2 SSD (2280, 2260 or 2242) into the M.2 slot on the card and secure it according to the module length. Insert the card into the system and connect it to the internal U.2 68‑pin interface on the motherboard or backplane. Ensure the system BIOS/firmware recognises PCIe devices and, if required, install appropriate drivers for the operating system to access the M.2 SSD.

Recommendations

Confirm that your system has an available internal U.2 68‑pin connector and supports PCIe host cards before installation. Check M.2 module compatibility (length and interface) and follow electrostatic discharge precautions when handling the card and SSD.
