Rozhranie karta DeLOCK 95240

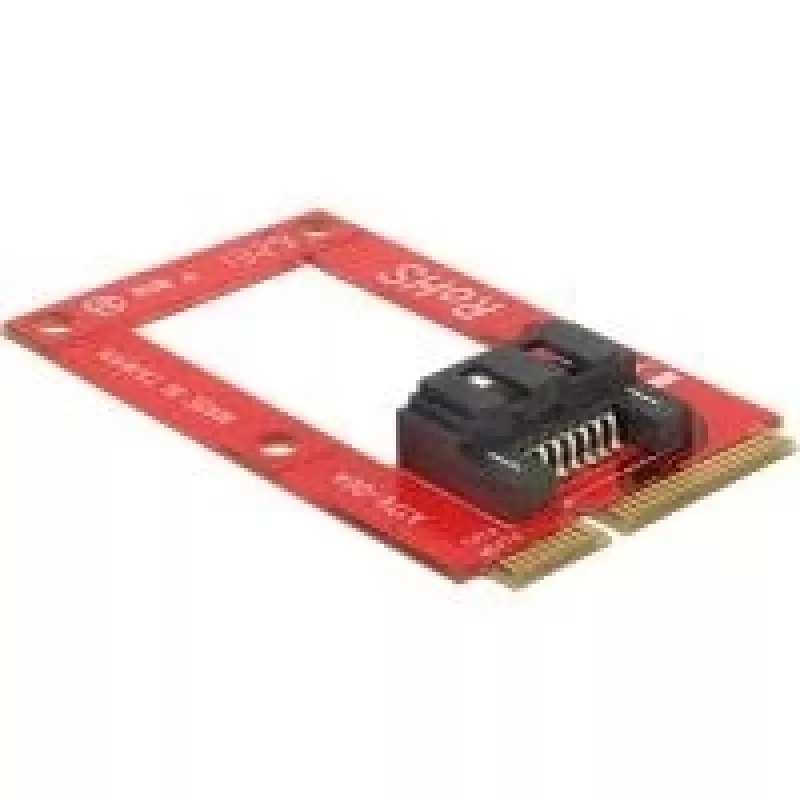

This module by DeLOCK converts an mSATA interface into a SATA 7‑pin interface, allowing connection of a standard SATA SSD or HDD. The card is intended for installation in a full‑size slot and features a cutaway in the centre of the PCB so the SATA connector can be accessed from either side.

Advantages

The DeLOCK 95240 provides a simple hardware conversion from mSATA to a standard SATA 7‑pin connector without requiring additional drivers. Its compact full‑size card format enables straightforward installation in compatible slots. The PCB cutaway increases accessibility to the SATA interface from both sides, which can simplify cable routing and drive installation.

Suitable for

Key specifications

How to use

Install the interface card into a compatible full‑size mSATA slot on the host device. Attach a standard SATA data cable to the 7‑pin SATA connector on the module and connect the other end to the SATA drive. If required, connect power to the SATA drive using the system's power supply. No additional software is normally required; the connected SATA drive should be recognised by the host system.

Recommendations

Ensure the host slot supports full‑size mSATA modules and that the system is powered off before installation. Verify SATA cable orientation and secure connections. Use compatible SATA drives and follow the drive manufacturer's guidelines for power and mounting.
