Rozhranie karta ROLINE 15.06.2196 PCIe 4.0 3,3 V 5 A

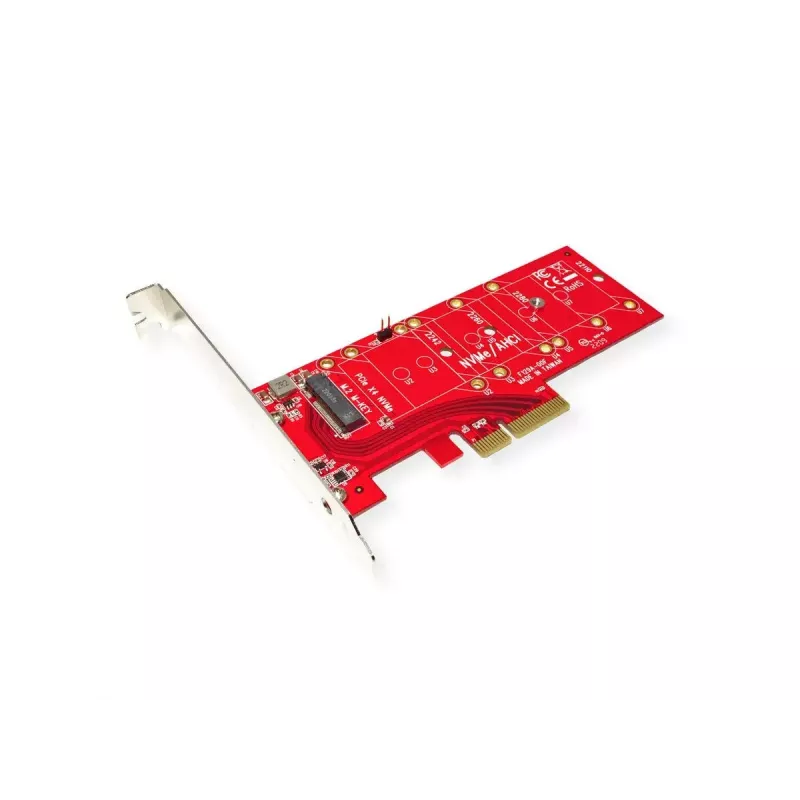

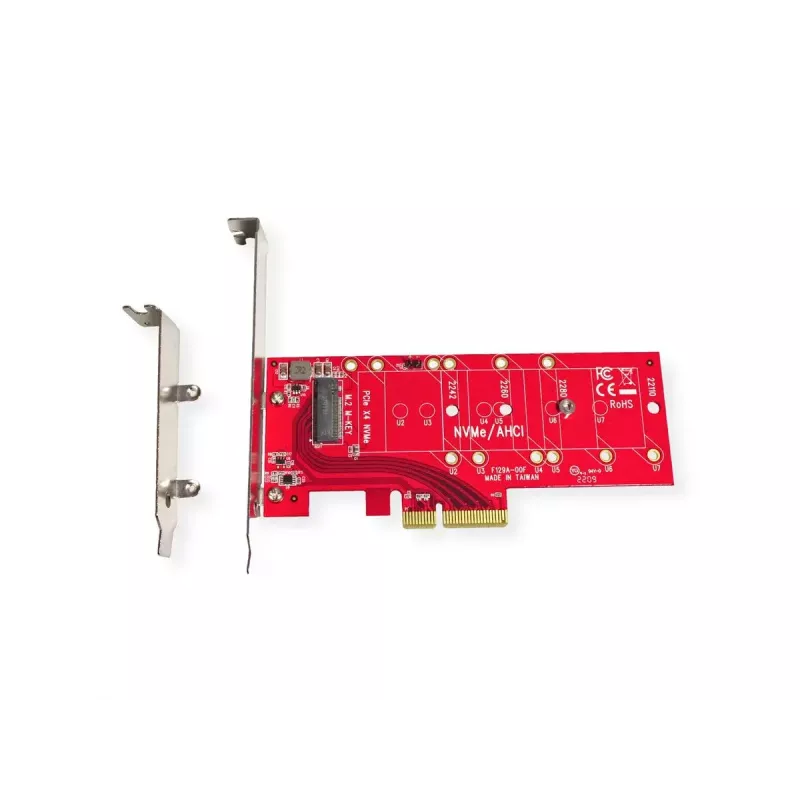

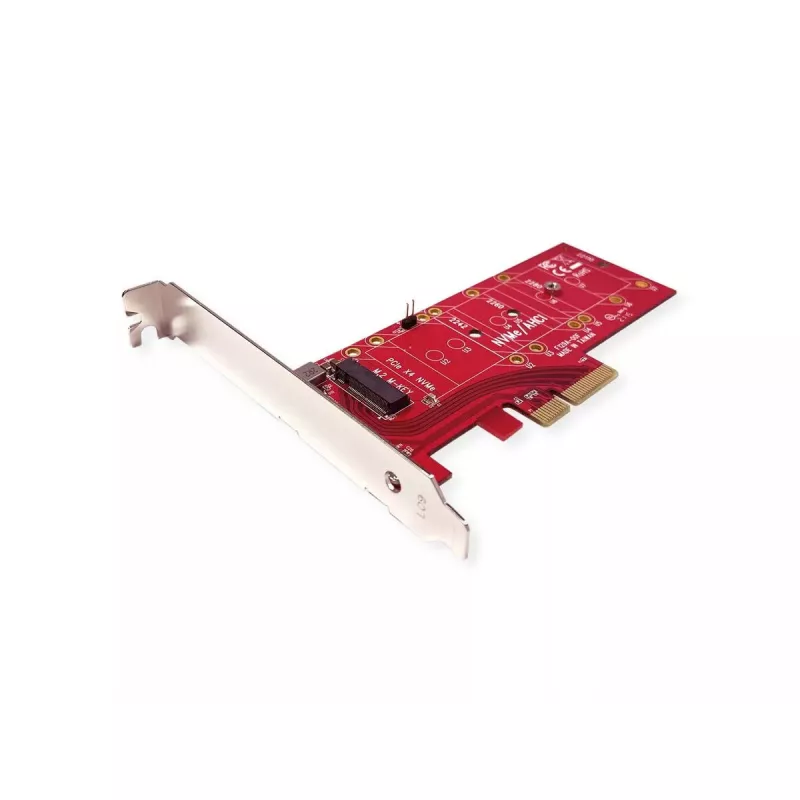

The ROLINE 15.06.2196 is an internal PCIe interface card that supports PCIe 4.0, providing higher data throughput and lower latency compared with SATA-based solutions. Designed for workstation and high-performance system upgrades, the card supplies an output of 3.3V at 5A and fits standard PC enclosures with dimensions of 160 mm × 210 mm × 50 mm.

Advantages

Support for the NVMe standard over PCI Express 4.0 (4 lanes) increases available bandwidth and reduces latency relative to traditional SATA SSD interfaces. The 3.3V/5A power output ensures stable power delivery for attached devices, while the card’s form factor is compatible with typical desktop cases for straightforward installation in workstations.

Suitable for

• Workstations requiring high-speed storage connectivity
• Systems being upgraded from SATA SSD to PCIe/NVMe solutions
• High-throughput data transfer and low-latency applications

Key specifications

• Interface: PCIe 4.0, 4 lanes (NVMe capable)
• Output voltage: 3.3 V
• Output current: 5 A
• Dimensions (W × D × H): 160 mm × 210 mm × 50 mm
• Brand: ROLINE
• MPN: 15.06.2196
• EAN: 7630049621114

How to use

Install the card into an available PCIe 4.0 x4 (or higher) slot on the motherboard, secure it in the chassis, and connect any required power or device cables. Ensure the system firmware and operating system drivers support PCIe 4.0 and NVMe devices if you are connecting NVMe storage. After installation, verify device recognition in the BIOS/UEFI and the operating system before formatting or using attached storage.

Recommendations

For optimal performance, pair the card with NVMe storage and a motherboard that provides PCIe 4.0 lanes. Use in a properly ventilated chassis and confirm compatibility with your system’s power delivery and slot layout.
