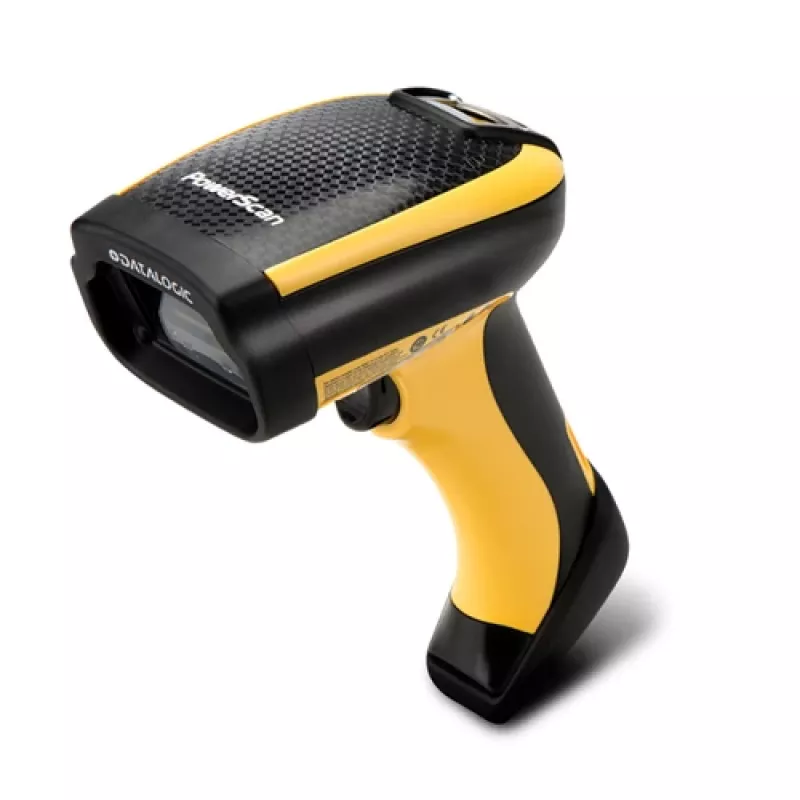

Ručný čítač čiarových kódov Datalogic PowerScan PM9100

The Datalogic PowerScan PM9100 is a rugged handheld 1D barcode reader offering cordless operation via Datalogic’s STAR Cordless System (433 MHz) and wired interfaces. It uses a linear imager with a green scanning line that provides laser-like definition together with the advantages of imaging technology. The device is available in three configurations: basic (no display/keypad), display with 4-key keypad, and display with full alphanumeric keypad. It is designed for industrial use with an IP65 rating, a 2150 mAh Li‑Ion battery, and a compact, lightweight housing (approximately 405 g).

Advantages

The PM9100 combines wireless freedom (up to 50 m range) and multi-interface wired connectivity (RS-232, Keyboard Wedge, USB) in a single rugged device. Datalogic’s 3 Green Lights (3GL) and patented Green Spot provide clear good-read feedback directly on the code and from multiple viewing angles. The green scanning line of the linear imager delivers precise aiming similar to a laser while retaining the durability and flexibility of an imager.

Suitable for

• Industrial warehouses and logistics operations requiring durable 1D barcode scanning
• Retail and point-of-sale where fast, reliable reads of linear barcodes are needed
• Manufacturing floors and inspection stations with dust or moisture exposure (IP65)

Key specifications

• Scanner type: 1D linear imager
• Connectivity: Wired (RS-232, Keyboard Wedge, USB) and Wireless (STAR Cordless System, 433 MHz)
• Battery: 2150 mAh Lithium‑Ion
• Range (wireless): up to 50 m
• Ingress protection: IP65
• Weight: 0.405 kg
• Supported 1D symbologies: U.P.C., EAN-13, EAN-2, EAN-5, Code 39, Code 93, Code 32, Code 128, Interleaved 2 of 5, Codabar, GS1 DataBar Omnidirectional, GS1 DataBar Expanded
• Colors: Yellow, Black

How to use

Power the PM9100 and connect it to the host system via the chosen wired interface or pair it with the STAR Cordless System base for wireless operation. Aim the green scanning line at the 1D barcode and press the trigger to scan; the Green Spot on the code and the 3GL indicators confirm a successful read. For models with a display and keypad, use the on-device menu for configuration and mode selection. Follow your host system’s instructions for driver or interface setup when installing via RS-232, USB or keyboard wedge.

Recommendations

Use the PM9100 in environments compatible with IP65 to maintain device longevity; avoid exposing connectors when the device is powered and regularly check battery charge level for uninterrupted cordless operation. Choose the keypad/display model if you require on-device configuration or frequent manual input.
