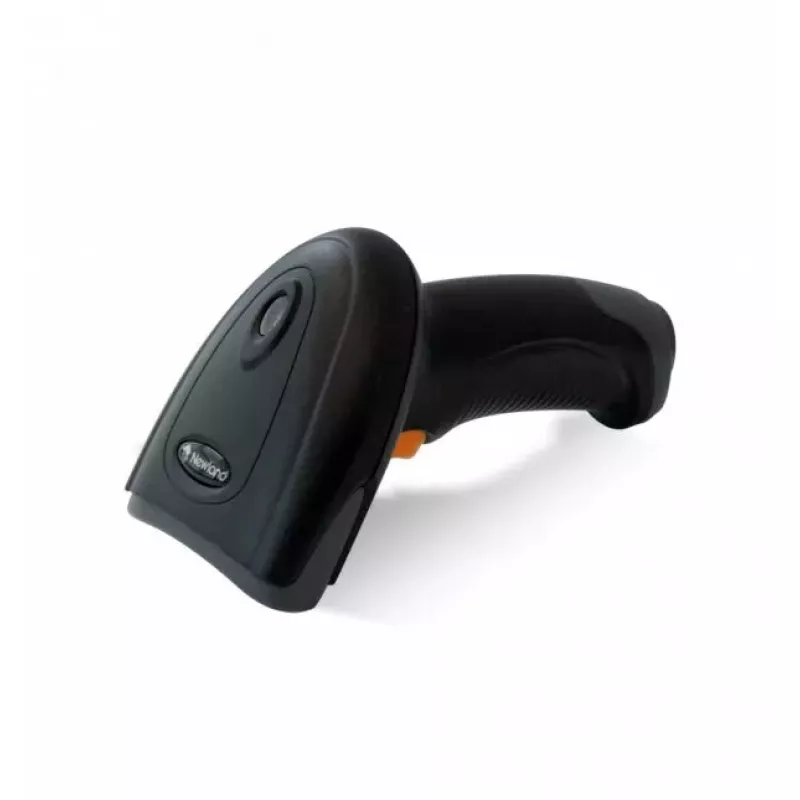

Ručný čítač čiarových kódov Newland HR11 Aringa

The Newland HR11 Aringa is a compact handheld 1D barcode reader designed for intensive everyday scanning. It combines a lightweight housing (120 g) with durable construction (1.5 m drop resistance, ABS/PC casing) and LED sensor technology to deliver consistent scanning performance for retail and related applications. The scanner connects via USB, supports a wide range of 1D linear barcodes and can be used handheld or with an optional foldable smart stand for hands-free operation.

Advantages

The HR11 Aringa offers an ergonomic, lightweight design that reduces user fatigue during prolonged use while maintaining robust durability. It provides reliable 1D barcode reading from paper and screens thanks to Newland’s NLDC decoding technology and a 2500-pixel linear imager, delivering fast read rates and accurate capture. The device is energy-efficient with low power consumption and delivers a cost-effective solution for point-of-sale and inventory tasks.

Suitable for

• Retail point-of-sale scanning
• O2O (Online-to-Offline) kiosks and ticket validation
• Pharmacies, cosmetics and drug stores
• Small grocery stores and tobacco kiosks
• Inventory and back-office barcode capture

Key specifications

• Scanner type: 1D linear imager (2500-pixel)
• Sensor type: LED
• Decoder: Newland NLDC (1D)
• Supported 1D codes: EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, GS1-128, ITF, ISBN/ISSN and others
• Working distance: up to 480 mm
• Read rate: up to 300 reads/s
• Connectivity: Wired USB
• Power input: 5 V, power consumption approx. 0.352 W
• Weight: 120 g
• Housing: ABS + PC, colour: black
• Drop resistance: 1.5 m

How to use

Connect the HR11 Aringa to a host device using the supplied USB cable; the scanner supports autosense for automatic reading when a barcode is presented. Hold the scanner comfortably in hand and align the imager with the barcode; press the trigger if required or present the barcode for automatic capture in hands-free mode. For reading barcodes displayed on mobile screens, position the device so the barcode is fully visible to the imager and move slowly if necessary to ensure a stable read.

Recommendations

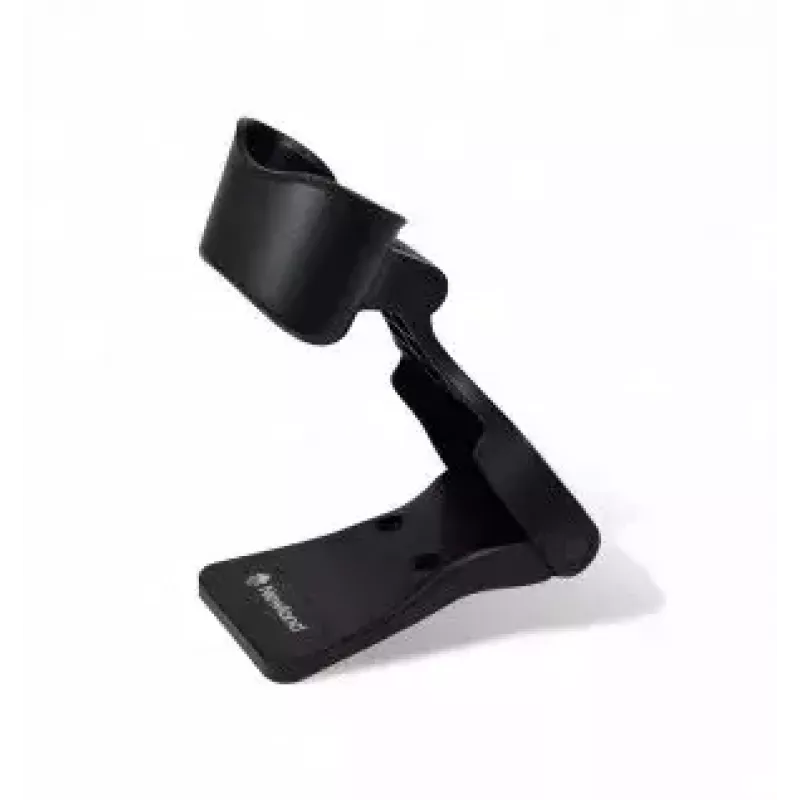

Use the optional foldable smart stand when performing frequent hands-free scanning to increase throughput and reduce operator movement. Keep the scanner’s window clean and avoid exposing the device to prolonged direct sunlight or liquids to maintain reliable performance.
