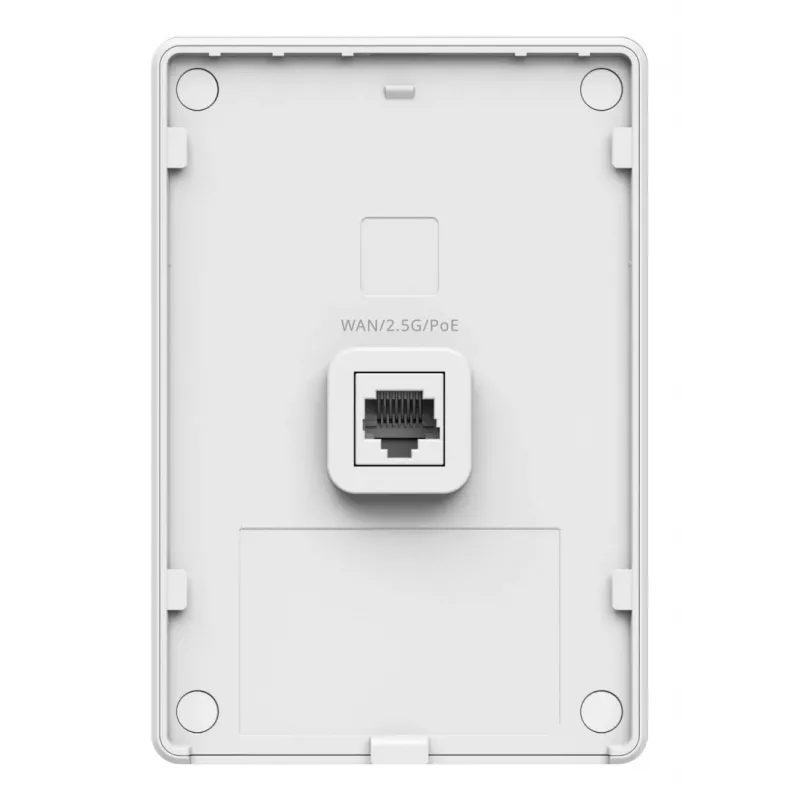

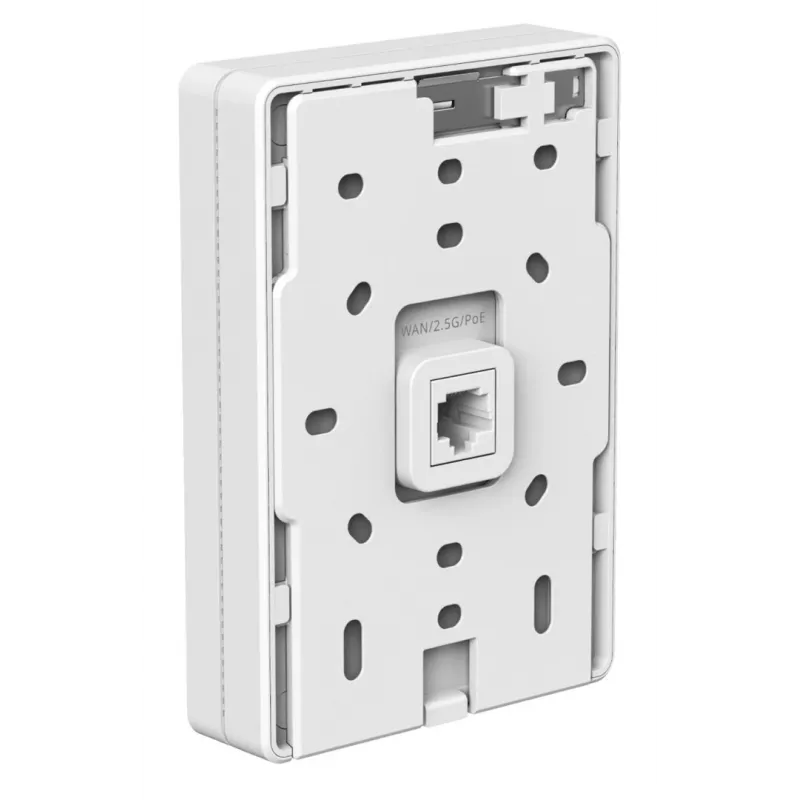

RUIJIE RG-RAP72-WALL Wi-Fi 7 Tri-Band Nástenný Access Point, 2.5GbE Uplink, PoE+ napájaný

The RUIJIE RG-RAP72-WALL is a high-performance Wi-Fi 7 (802.11be) wall-plate access point designed for seamless connectivity in hotels, dormitories, offices, and apartments. With tri-band operation and aggregate speeds up to 9221 Mbps, it delivers ultra-fast wireless performance for demanding environments. The integrated 2.5 Gigabit Ethernet uplink and three Gigabit downlink ports provide flexible wired connectivity, while PoE+ input simplifies installation. This access point supports advanced security protocols and is managed via the Reyee Cloud App or web GUI, making it an ideal solution for high-density deployments.

Advantages

Experience the next generation of Wi-Fi with Wi-Fi 7 technology, offering higher throughput, lower latency, and improved efficiency. The wall-plate form factor blends discreetly into standard 86-type gang boxes, saving space and reducing clutter. With support for up to 120+ concurrent clients, MU-MIMO, and OFDMA, the RG-RAP72-WALL ensures reliable performance even in crowded networks. PoE+ power eliminates the need for separate power adapters, and the integrated PoE output on one LAN port can power an additional device such as an IP phone or camera.

Suitable for

• Hotels and hospitality venues requiring high-speed guest Wi-Fi
• Dormitories and student housing with high user density
• Office environments needing reliable wireless coverage
• Apartments and multi-dwelling units (MDUs)

Key specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Aggregate Speed: 9221 Mbps (574 Mbps @ 2.4GHz, 2882 Mbps @ 5GHz, 5765 Mbps @ 6GHz)
• Frequency Bands: Tri-Band (2.4 GHz, 5 GHz, 6 GHz)
• MIMO: 2x2:2 (2.4GHz), 2x2:2 (5GHz), 4x4:4 (6GHz)
• Ethernet Uplink: 1x 2.5 Gigabit Ethernet
• Ethernet Downlink: 3x Gigabit Ethernet
• PoE Input: 802.3at PoE+
• PoE Output: 1x 802.3af PoE (LAN3)
• Antenna: Internal Omnidirectional
• Mounting: Wall-Plate (86-type gang box)
• Management: Reyee Cloud App, Web GUI
• Security: WPA3, WPA2, WPA
• Max Concurrent Clients: 120+
• Power Consumption: <20W

Recommendations

For optimal performance, pair the RG-RAP72-WALL with a Reyee switch supporting PoE+ and 2.5GbE uplink. Use the Reyee Cloud App for easy setup and centralized management. Ensure the mounting location is within a standard 86mm gang box for proper installation.
