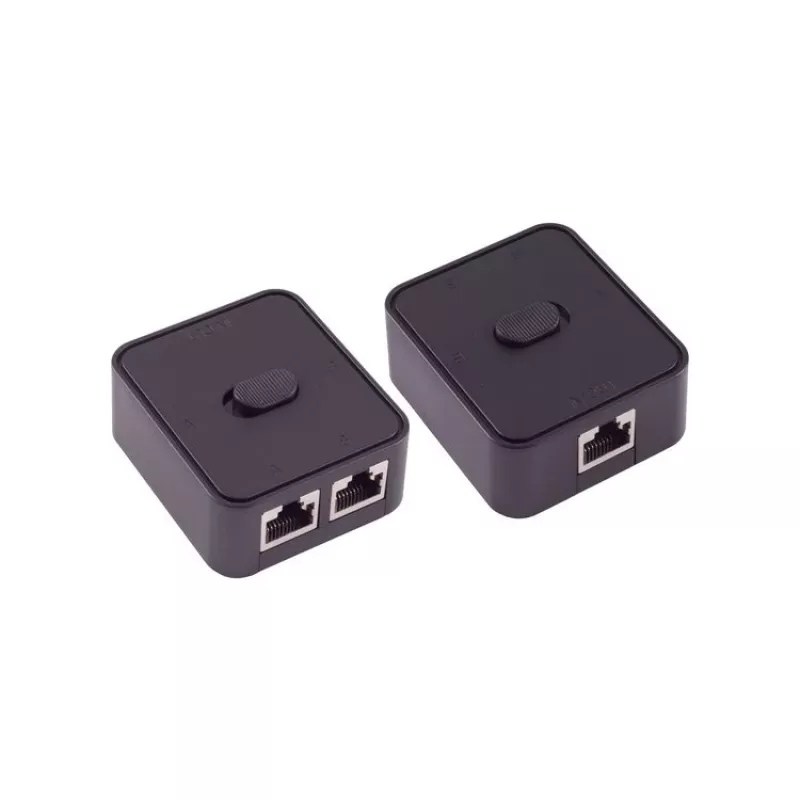

S CONN MAXIMUM CONNECTIVITY 08-01100 manuálny sieťový switch, 1G, obojsmerný

This manual network switch offers a simple, power-free way to share a single Gigabit Ethernet connection between two devices or switch between two networks. Unlike automatic switches, it uses a mechanical push button for direct physical control, making it ideal for secure or isolated network segments where you need to know exactly which device is connected.

Highlights

• Bidirectional 1-to-2 or 2-to-1 switching
• No external power required – passive operation
• Metal housing in black/grey
• Supports 10/100/1000 Mbps speeds
• Works with Cat5e, Cat6, and Cat7 cables

In daily use

Place the switch on your desk and connect the common port to your network or device. Use the push button to select which of the two other ports is active. The switch is completely passive, so there are no LEDs or software to configure – just press and go. It's perfect for test benches, secure environments, or any situation where you need manual control over network connections.

Full specifications

• Switch type: Manual network switch
• Port configuration: 1 common, 2 selectable (3 RJ45 ports total)
• Data transfer speed: 10/100/1000 Mbps (Gigabit Ethernet)
• Switching mechanism: Mechanical push button
• Power requirement: Passive (no external power supply)
• Housing material: Metal
• Colour: Black / Grey
• Network standards: IEEE 802.3, 802.3u, 802.3ab
• Supported cables: Cat5e, Cat6, Cat7
• Installation: Desktop

Final note

A straightforward, reliable manual switch for controlled network sharing – no power, no software, just a simple button.
