Sada skrutiek a hmoždiniek Fischer 567813 45 kusov zelená

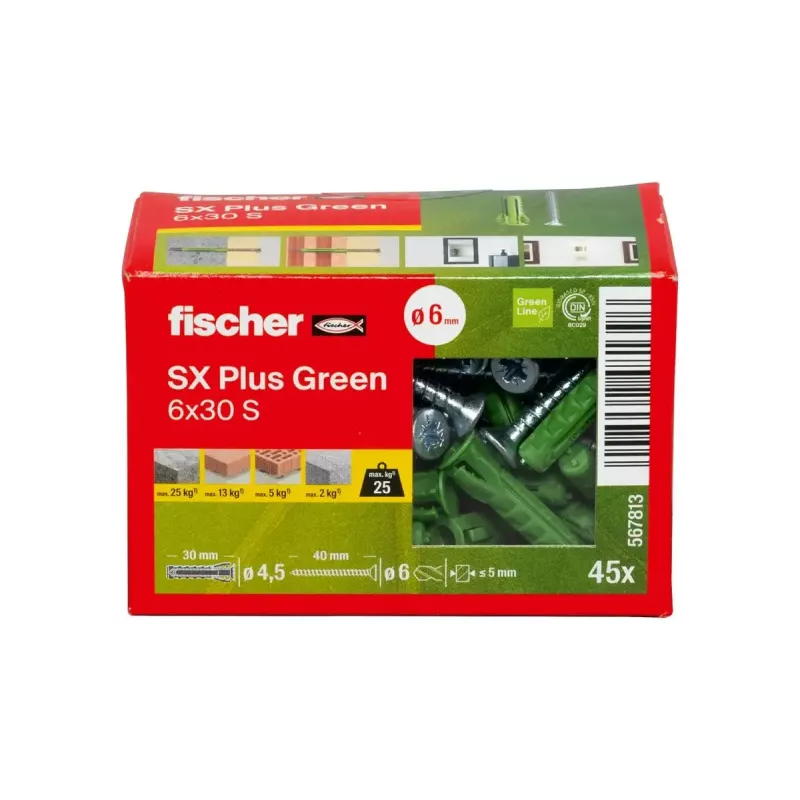

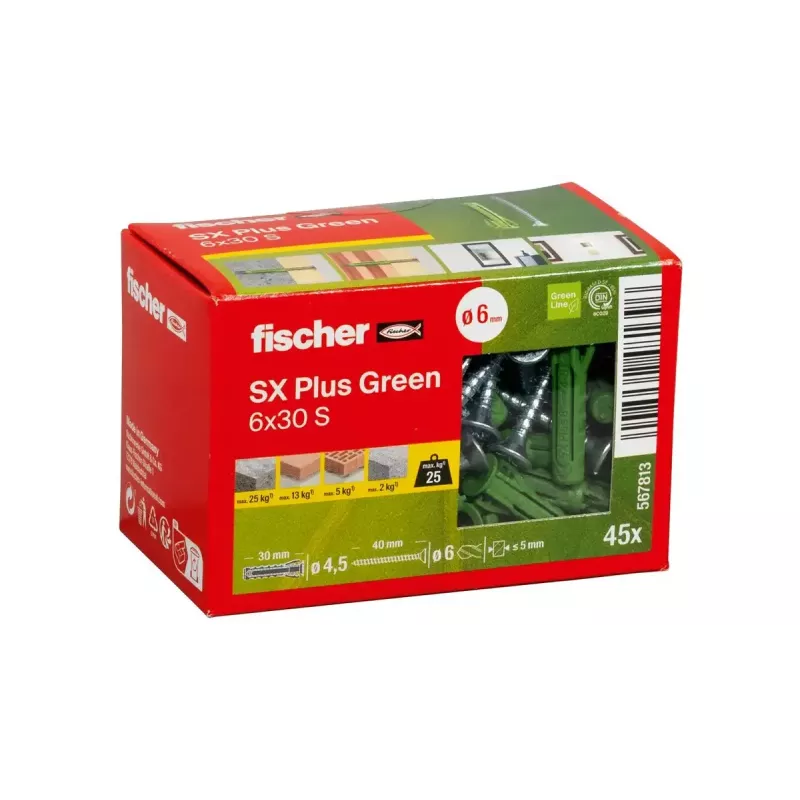

The Fischer 567813 Screw & Wall Plug Kit contains 45 green SX Plus expansion plugs made from at least 50% renewable raw materials. Designed for solid and perforated building materials, these 6 mm plugs offer four-way expansion for secure anchoring and come with matching screws. Drill hole diameter: 6 mm; minimum drill depth: 45 mm. The kit is suitable for applications in autoclaved aerated concrete, brick and masonry.

Advantages

The SX Plus Green is produced with a minimum of 50% renewable raw materials, reducing reliance on fossil raw materials. Its 4-way expansion provides optimum force transmission into the base material, delivering high holding values in solid and perforated substrates. Special fixing blades pre-fix the screw so the screw remains in place during positioning, enabling easier overhead and one-person installation. The expansion-free plug neck avoids surface expansion stresses during screw insertion, helping to protect tiles and plaster. The plug’s shaped body and pronounced edge allow easy placement in the drill hole with a few light hammer blows and prevent the plug from slipping deeper into the hole for safe installation.

Suitable for

• Autoclaved aerated concrete (AAC)
• Concrete and solid masonry
• Perforated bricks and standard brickwork
• Interior fittings, light fixtures and shelving installations

Key specifications

• Brand: FISCHER
• Model / MPN: 567813
• Contents: 45 pieces (plugs with matching screws)

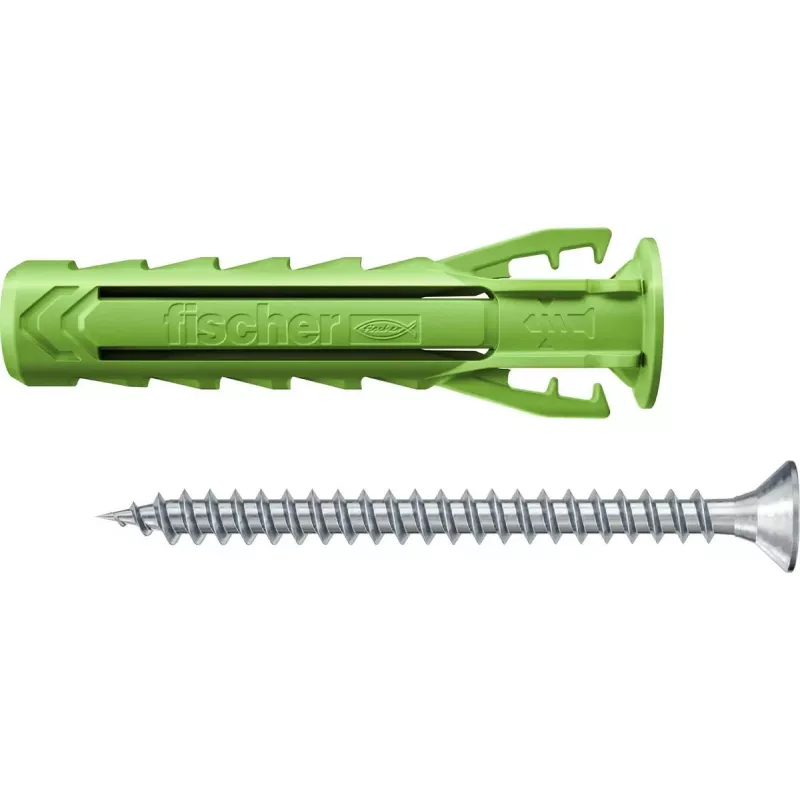

• Plug type: SX Plus Green expansion plug
• Material: ≥50% renewable raw materials
• Drill diameter: 6 mm
• Minimum drill depth: 45 mm
• Application: 4-way expansion, pre-fixation blades, rotation lock
• EAN: 4048962481396

How to use

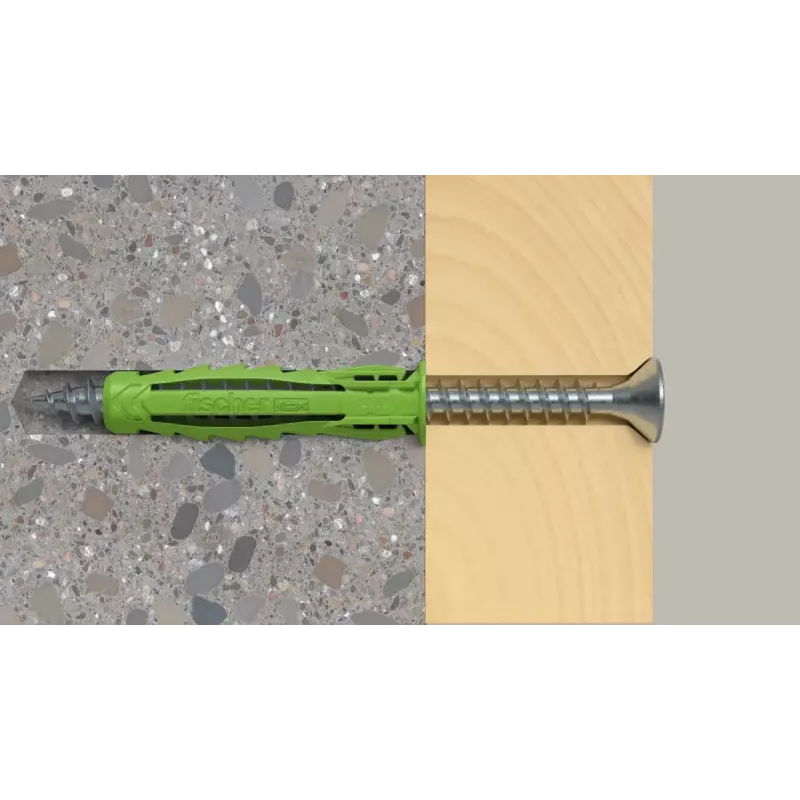

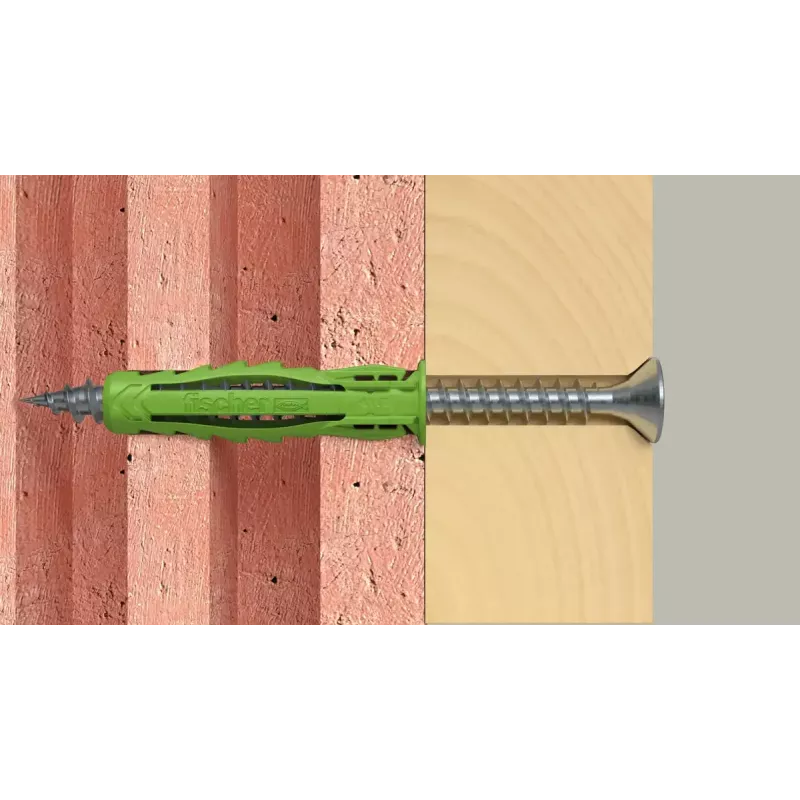

Drill a 6 mm hole to at least 45 mm depth into the base material. Clean the hole of dust. Insert the SX Plus Green plug either as pre-positioned or push-through installation; tap the plug into the hole with light hammer blows until the pronounced edge rests against the surface. Pre-fit the screw into the plug — the fixing blades will hold it in place. Drive the screw in; the plug expands in four directions and anchors securely. Do not use screws larger than those supplied or exceed the recommended drill diameter to avoid reduced performance.

Recommendations

Use the Fischer SX Plus Green in base materials listed above and observe the specified drill diameter and depth. For safety-critical or heavy-load fixings, consult fischer technical data or a structural engineer to determine suitable load values and spacing. Avoid using in highly brittle finishes without appropriate backing to prevent surface damage.
