Sennheiser EW-DX EM 2 DANTE (Q1-9) – digitálny dvojkanálový bezdrôtový prijímač 509356

With a dynamic range of 134 dB and latency under 1.9 ms, the Sennheiser EW-DX EM 2 DANTE (Q1-9) delivers pristine digital wireless audio for professional microphone systems. Operating in the Q1-9 frequency band (470.2 - 550 MHz) with an 88 MHz switching bandwidth, this dual-channel receiver ensures reliable, interference-free performance.

Overview

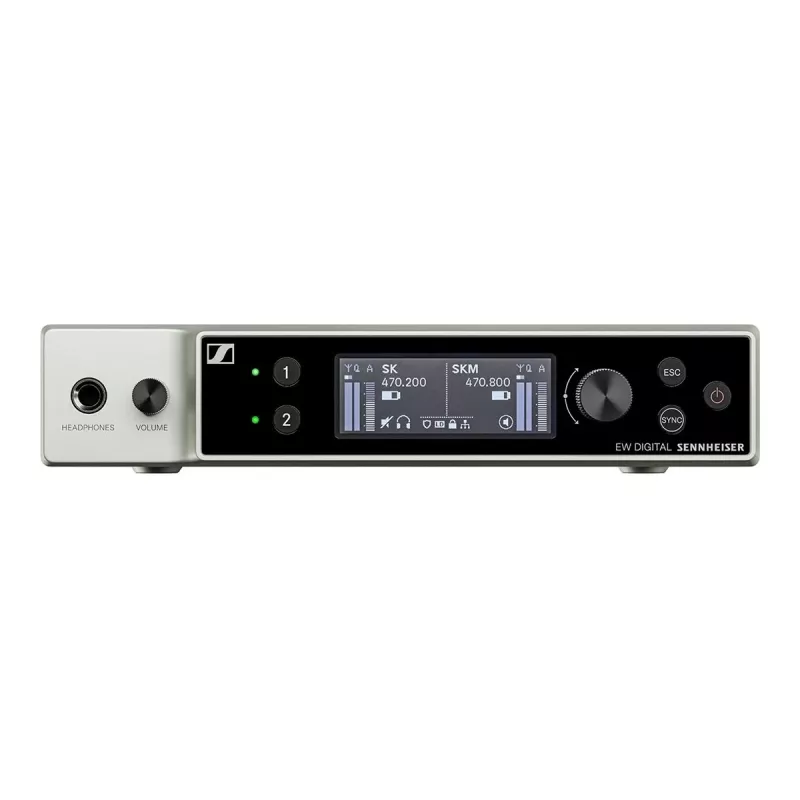

The EW-DX EM 2 DANTE is a half-rack 19" receiver with a metal housing and OLED display. It features two XLR balanced and two 6.3 mm jack unbalanced audio outputs, plus two RJ45 ports for Dante and control network connectivity. The receiver supports 24-bit/48 kHz sampling and AES 256 encryption for secure transmission.

What stands out

• Dual-channel digital wireless receiver for professional use
• Dante audio networking with two RJ45 ports
• Ultra-low latency: < 1.9 ms analog out, < 2.0 ms Dante out
• Wide dynamic range of 134 dB
• Frequency response: 20 Hz - 20 kHz (-3 dB)
• THD+N: < -60 dB at 1 kHz, -3 dBFS
• AES 256 encryption for secure audio
• OLED display for clear status monitoring
• External 12 V DC, 300 mA power supply

Technical details

• Frequency range: 470.2 - 550 MHz (Q1-9 band)
• Switching bandwidth: 88 MHz
• Antenna connectors: 2 x BNC (50 Ω)
• Audio outputs: 2 x XLR (balanced), 2 x 6.3 mm jack (unbalanced)
• Network: 2 x RJ45 (Dante, Control)
• Sampling rate: 24-bit / 48 kHz
• Housing: Metal, half-rack 19"

Our verdict

The Sennheiser EW-DX EM 2 DANTE (Q1-9) is a high-performance dual-channel receiver that combines exceptional audio quality, low latency, and Dante networking in a rugged half-rack design. Ideal for professional live sound, broadcast, and installed audio applications.
