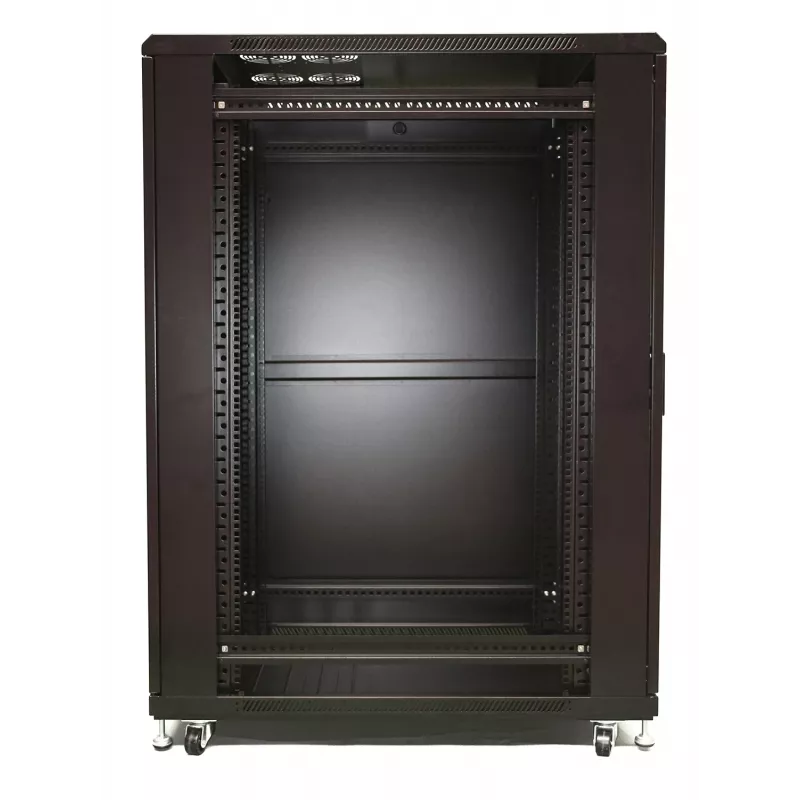

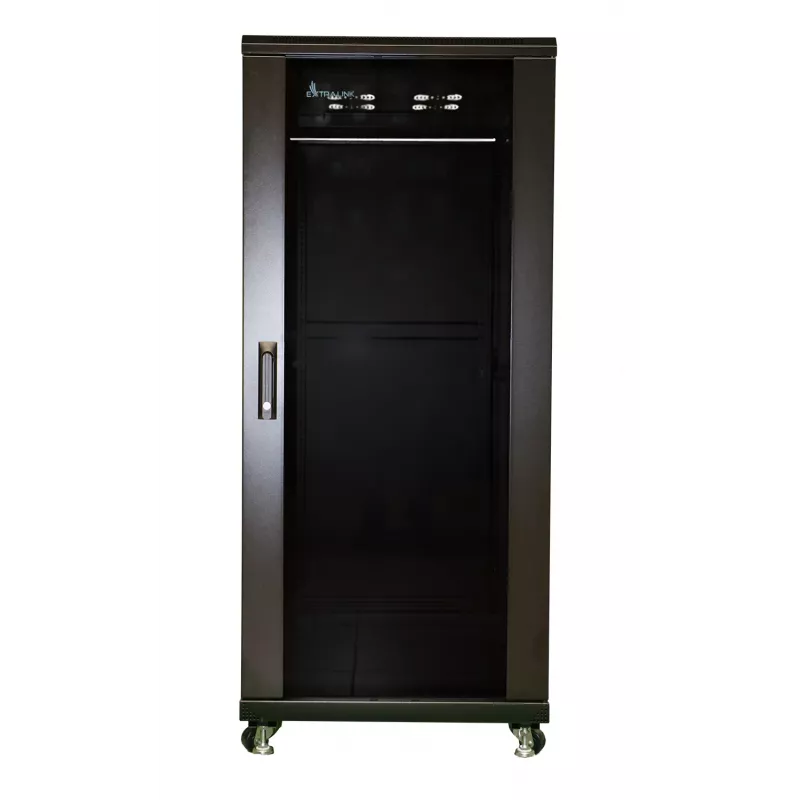

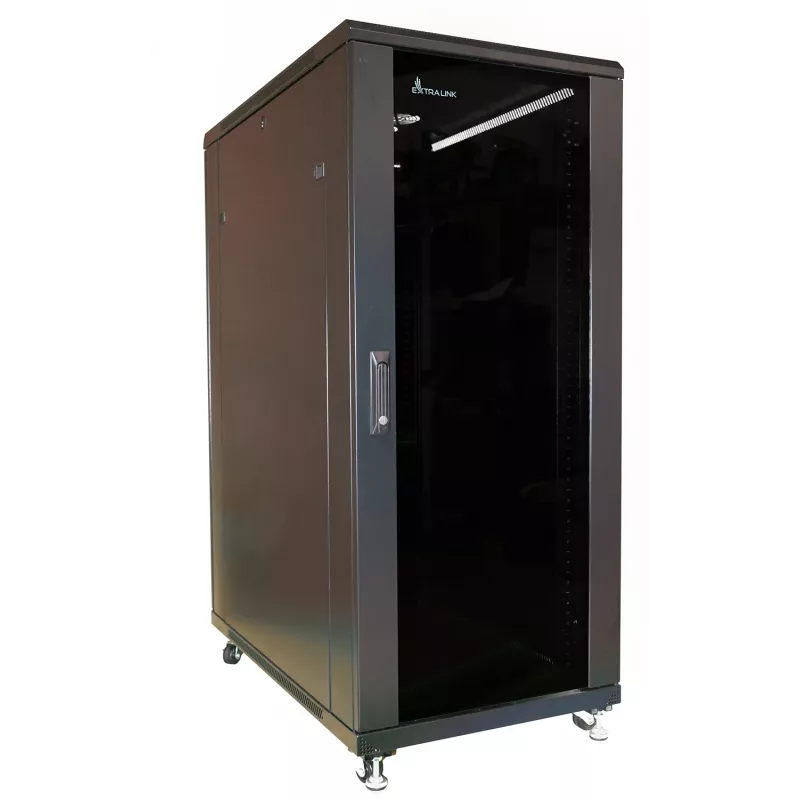

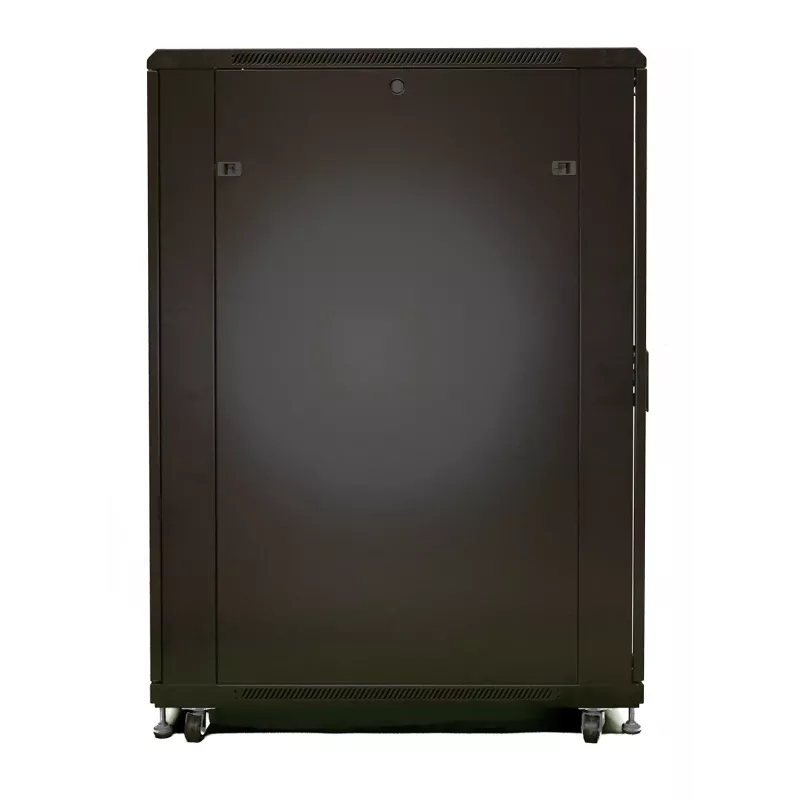

Samostatný rack Extralink racková skriňa 27U 800x800 čierna nosnosť 600 kg

The Extralink rack, a freestanding 27U 800x800 rackmount cabinet in black, is designed for offices, network server rooms and CCTV control rooms. Constructed with cold-rolled steel external walls and a tempered glass front door that can be opened left or right, it provides secure storage and clear visibility of mounted equipment. The cabinet total height is 1320 mm and it supports standard 19" devices with a maximum load capacity of 600 kg.

Advantages

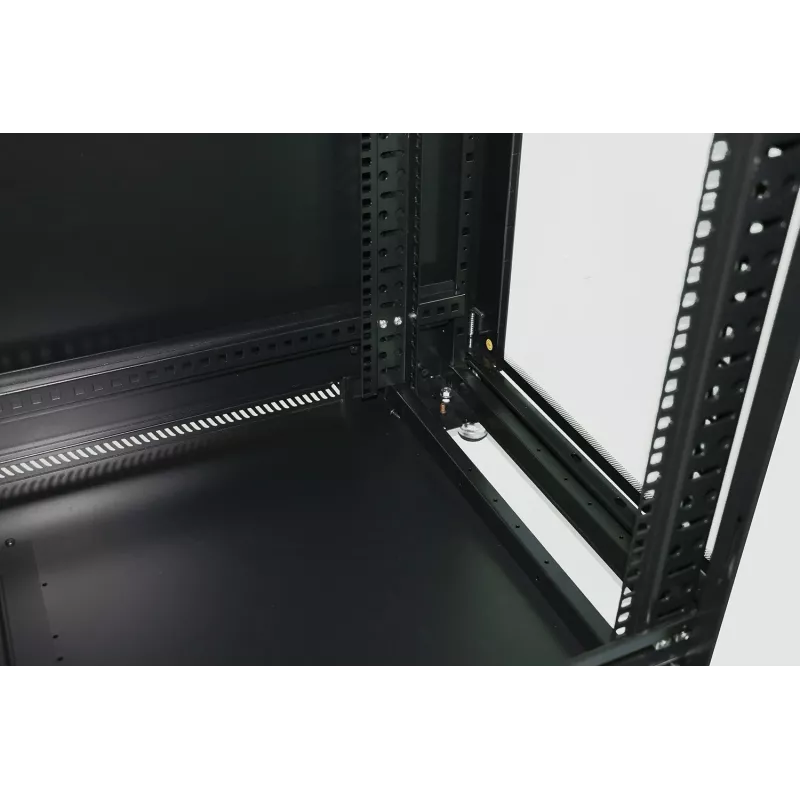

Vertical mounting rails are clearly marked up to 27U to simplify installation and device placement. Side panels feature snap fasteners for quick removal and access, while a keyed lock on the front door enhances physical security. The lower panel includes four cable entry points to organise and protect cables, and the ceiling has four fan mounting positions and an additional conduit for improved airflow and cable routing.

Suitable for

• Server and network equipment storage in small to medium server rooms
• CCTV and security system cabinets
• Office network closets and IT infrastructure cabinets

Key specifications

• Rack capacity: 27U
• Dimensions (H x W x D): 1320 mm x 800 mm x 800 mm
• Supported equipment width: 19"
• Colour: Black
• Maximum load capacity: 600 kg
• Front door: Tempered glass, reversible opening
• Side walls: Cold-rolled steel, removable via snap fasteners

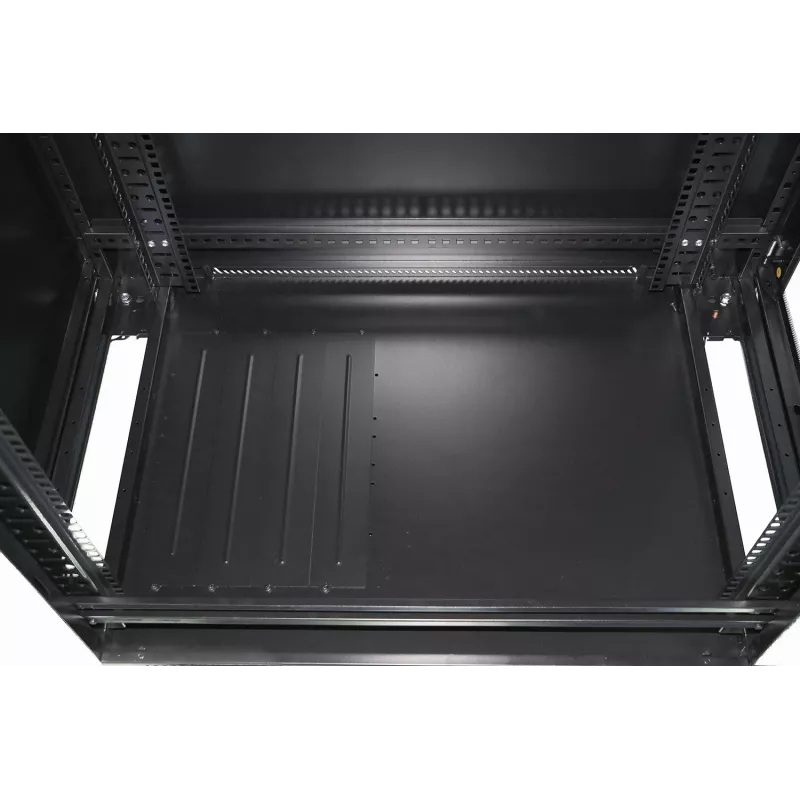

• Cable entries: 4 lower cable outlets; additional conduit in ceiling

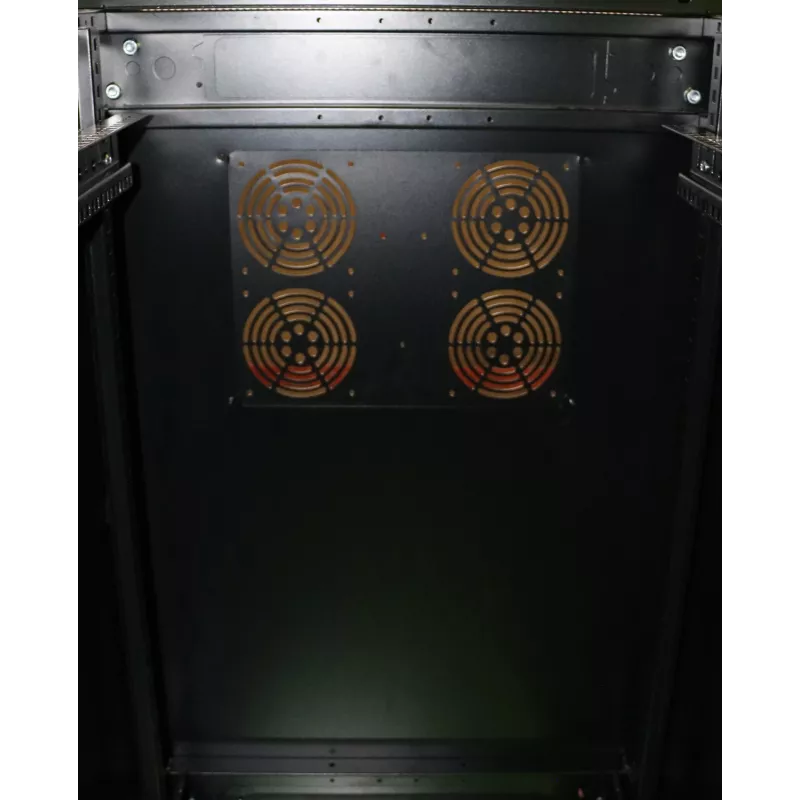

• Cooling: 4 ceiling fan mounting positions

How to use

Place the freestanding Extralink cabinet on a level surface and secure adjustable feet or castors according to the installation area. Open the tempered glass front door using the lock and mount 19" equipment on the clearly marked vertical rails, aligning devices to the desired U positions. Route cables through the lower cable outlets or the ceiling conduit to avoid strain and tangling. If required, install fans in the ceiling mounting positions to improve airflow and maintain device temperatures within operational limits.

Recommendations

For safe and long-term operation, distribute the load evenly across the vertical rails and keep heavier equipment in the lower U positions. Ensure proper cable management through the provided outlets and use the fan mounting positions when operating multiple heat-generating devices.
