Samostatný rack Triton Triton 19-palcový rack 42U/ 800x800 sklenené dvere

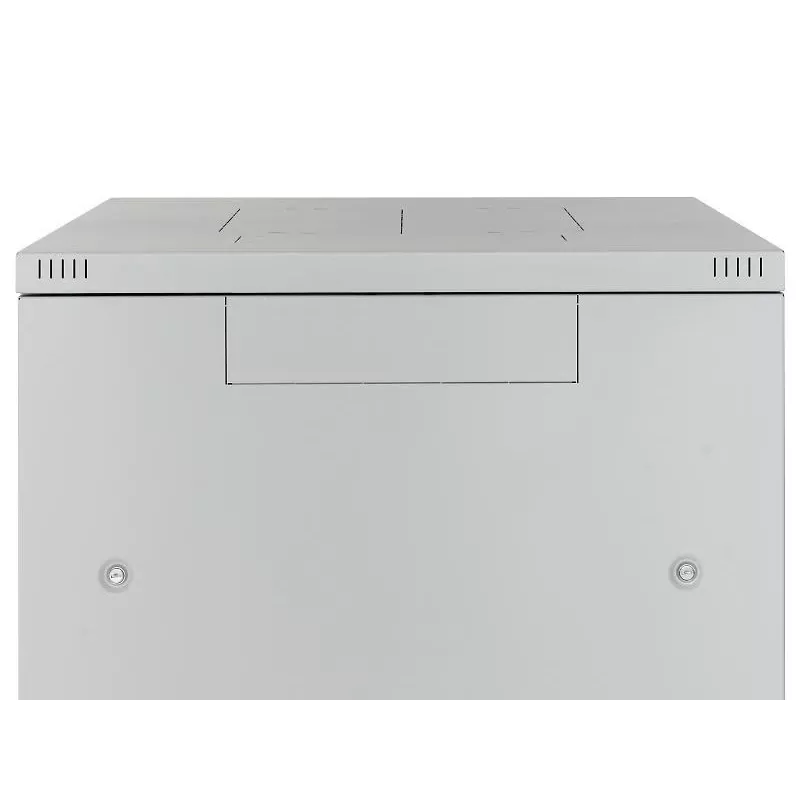

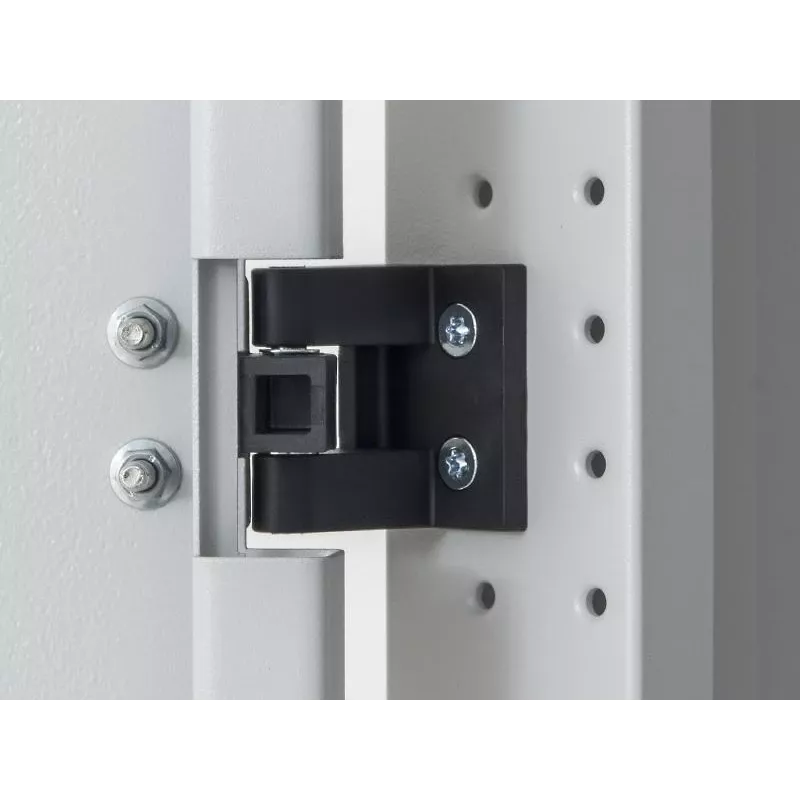

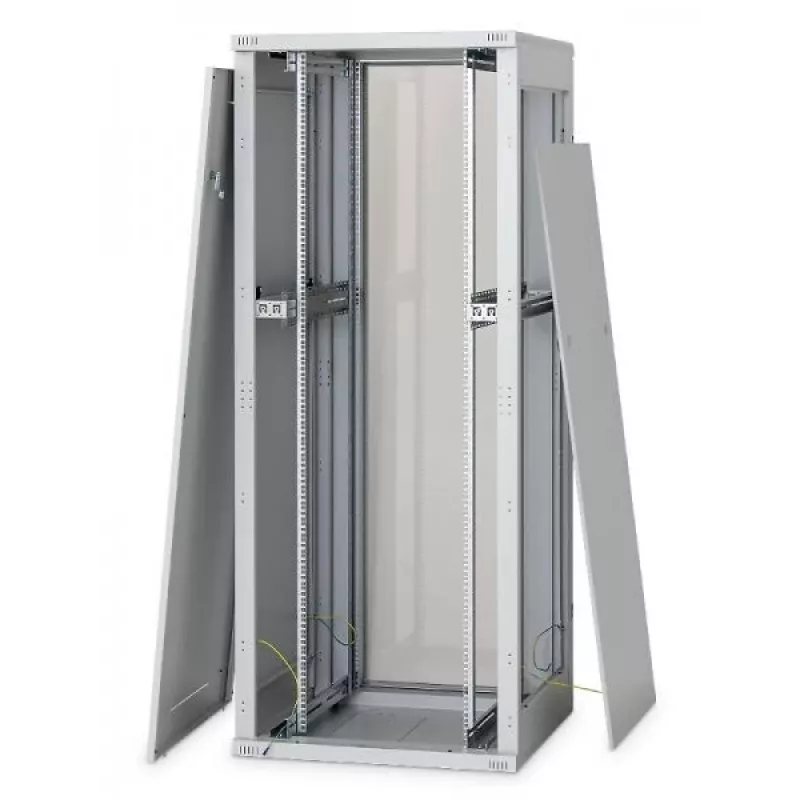

The Triton 19" Rack 42U/800x800 is a freestanding steel cabinet designed for data and telecommunication installations. Built for high-strength load-bearing performance, it features a lockable hinged front door with safety glass (4 mm) and removable side and rear panels. The cabinet includes multiple cable entry points, ventilation openings, an earthing system and basic mounting hardware — suitable for server rooms, telecom closets and other equipment installations.

Advantages

This 42U Triton freestanding rack offers robust construction with rigidly fixed sliding rails at 19" on the cabinet centre line and additional 21" or off-centre 19" mounting options prepared for 800 mm wide models. The design accommodates heavy loads with adjustable vertical 19" rails on each side, larger square cable entry openings (333 cm²), ventilated top and bottom sections, fan unit openings with a 3D top cover, brush strip protection at cable entries, adjustable leveling feet and key-secured removable panels for controlled access.

Suitable for

• Server rooms and data centres
• Telecommunications equipment and network switches
• Rack-mounted storage and backup systems
• IT closets and edge computing installations

Key specifications

• Mounting: 19" rails (centre); optional 21" and off-centre 19" positions on 800 mm width
• Height: 42U
• Footprint: 800 x 800 mm
• Door: Hinged glass door (safety hardened glass, 4 mm) — alternative solid or perforated options possible
• Weight capacity: Designed for heavy loads (see manufacturer data for exact limits)
• Product weight: 94.7 kg
• Colour: Grey
• Cable entry: Top, bottom and upper/lower rear sections; square opening area 333 cm²; breakout blanking panels
• Ventilation: Vented top/bottom, fan unit openings (top covered by 3D cover)

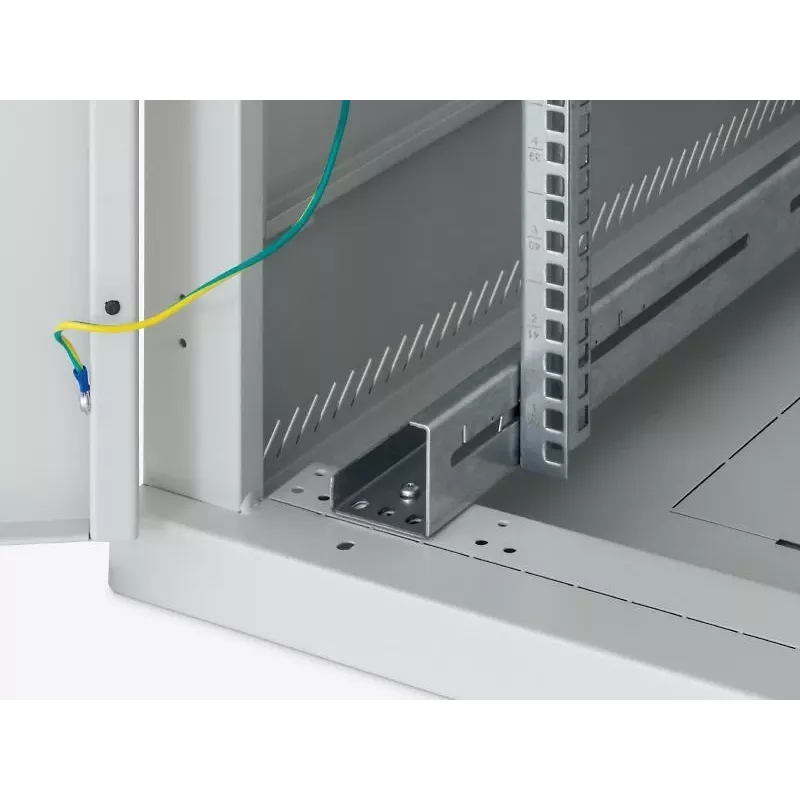

• Security: Lockable swing handle and key-operated side/rear locks; earthing system
• Accessories: Supplied with elementary mounting material and adjustable levelling feet

How to use

Place the cabinet on a level surface and adjust the levelling feet to stabilise the rack. Install equipment onto the 19" vertical rails; rails are infinitely adjustable front-to-back within the cabinet depth and on 800 mm models can be adjusted across the width. Route power and network cables through the prepared top, bottom or rear cable entry openings and secure them with the supplied blanking panels or brush strip where required. If active cooling is needed, install fan units in the provided top or base openings and use the 3D top cover as required. Ensure the cabinet is properly earthed before powering installed equipment.

Recommendations

For safe and optimal operation, distribute load evenly across the vertical rails, secure heavy devices at lower U-positions, maintain unobstructed airflow through vented sections and use the lockable panels to restrict physical access. Follow local wiring and grounding standards when connecting the earthing system.
