SATEL BE Wave WIRE 128 hybridný alarmový ústredňa

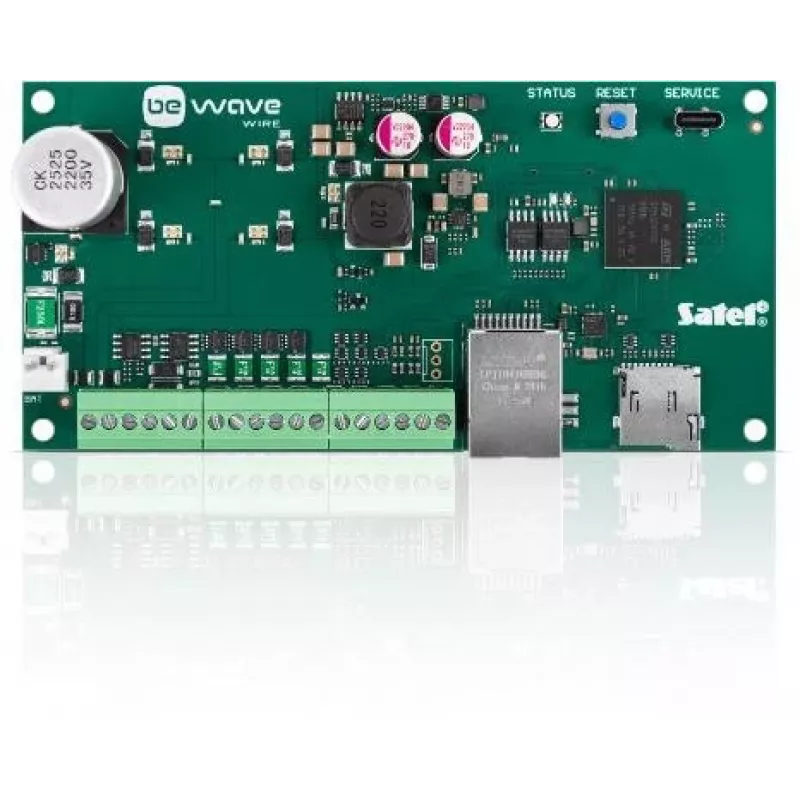

The SATEL BE Wave WIRE 128 is a hybrid alarm control panel that combines wired and wireless technology for comprehensive security management. Designed for medium to large installations, it supports up to 128 wired zones and 64 wireless devices via the integrated ABAX 2 module. With advanced features like 32 partitions, 240 users, and a large event log, this panel offers flexibility and reliability for professional security systems.

Advantages

Hybrid design allows seamless integration of wired and wireless devices. On-board 8 wired zones expandable to 128, plus 8 programmable outputs (4 high-current, 4 low-current). Built-in PSTN dialer with optional GSM/GPRS/Ethernet modules for remote communication. USB and RS-232 programming interfaces for easy configuration. Supports up to 8 keypads (LCD, Touch, Partition). EN 50131 Grade 2 compliance, configurable for Grade 3.

Suitable for

• Commercial buildings
• Residential estates
• Industrial facilities
• Multi-tenant properties

Key specifications

• System Type: Hybrid (Wired/Wireless)
• On-board Wired Zones: 8 (max 128)
• On-board Programmable Outputs: 8 (4 high-current, 4 low-current, max 128)
• Integrated Wireless Module: ABAX 2
• Max Wireless Devices: 64
• Max Users: 240 + 8 Administrators
• Partitions: 32
• Objects: 8
• Event Log Capacity: 22527 events
• Timers: 64
• Communication: Built-in PSTN dialer, optional GSM/GPRS/Ethernet modules
• Power Supply Input: 18V AC (requires 40VA transformer)
• Auxiliary Power Output: 2.5 A
• Programming Interface: USB, RS-232
• Keypads Supported: Up to 8 (LCD, Touch, Partition)
• Compliance: EN 50131 Grade 2 (configurable for Grade 3)

Recommendations

For optimal performance, use SATEL accessories and ensure proper installation by a certified technician. The panel requires a 18V AC 40VA transformer (not included).
