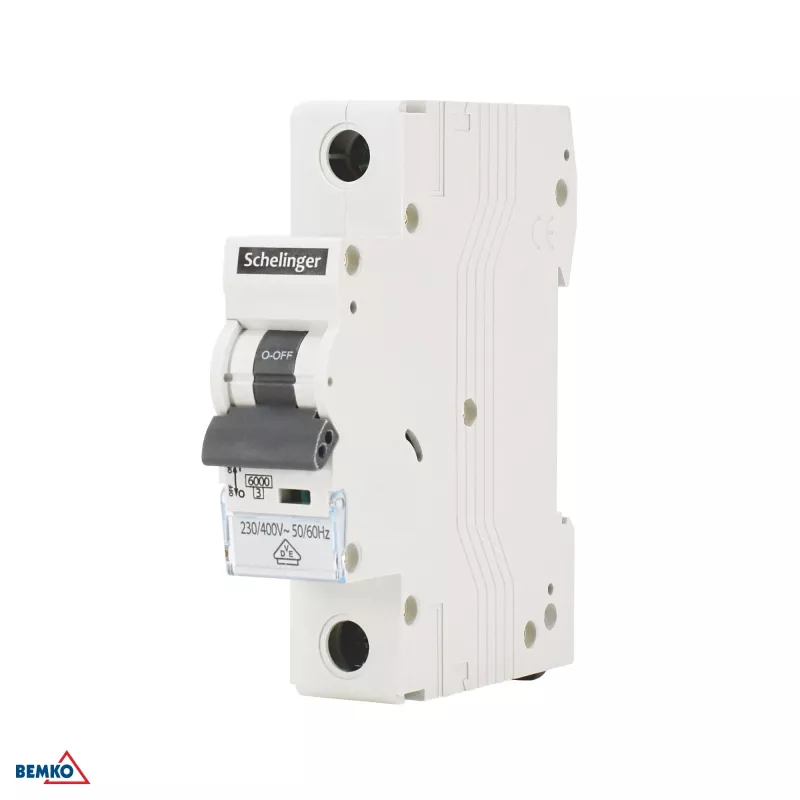

SCHELINGER A02-G8-1P-B40 istič 1P B40 6kA VDE

Electrical overloads and short circuits pose serious risks to residential and commercial wiring. The SCHELINGER A02-G8-1P-B40 Miniature Circuit Breaker (MCB) provides reliable protection for single-pole circuits rated up to 40 A. With a B-curve tripping characteristic and 6 kA breaking capacity, it quickly interrupts fault currents, safeguarding cables and connected equipment from damage. This VDE-certified breaker is engineered for DIN rail mounting and meets EN 60898-1 standards, ensuring consistent performance in distribution boards and consumer units.

Who is it for

This MCB is ideal for electricians, panel builders, and maintenance technicians who need a dependable overcurrent protection device for lighting and general-purpose circuits. It suits residential installations, small commercial panels, and industrial control cabinets where a 40 A single-pole breaker with B-curve tripping is specified. DIY enthusiasts with appropriate electrical knowledge will also find it straightforward to install in standard 35 mm DIN rail enclosures.

Main features

• Single-pole (1P) design for 230 V AC circuits
• Rated current 40 A with B-curve tripping for moderate inrush loads
• Short-circuit breaking capacity of 6 kA (Icn) for safe interruption
• VDE certification and compliance with EN 60898-1
• DIN rail mounting (35 mm) for quick installation
• Screw terminals accept conductors up to 25 mm²
• Mechanical endurance of 20,000 operations and electrical endurance of 10,000 cycles
• Operating temperature range from -25°C to +55°C

Specifications

• Brand: SCHELINGER
• Model: A02-G8-1P-B40
• MPN: A02-G8-1P-B40
• EAN: 5900280970718
• Product type: Miniature Circuit Breaker (MCB)
• Number of poles: 1P
• Rated current (In): 40 A
• Tripping curve: B
• Short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (Ue): 230 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail (35 mm)
• Standards: EN 60898-1, VDE
• Terminal type: Screw terminals
• Terminal capacity: Up to 25 mm² (solid/stranded)
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Operating temperature range: -25°C to +55°C
• Protection degree (terminals): IP20
• Energy limiting class: 3
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated insulation voltage (Ui): 500 V

Tips

Always de-energize the circuit before installation or maintenance. Use a torque screwdriver to tighten terminals to the manufacturer's recommended torque to ensure reliable connections. This breaker is designed for use in pollution degree 2 environments and should be installed in an enclosure providing additional protection against dust and moisture. For circuits with high inrush currents (e.g., motors, transformers), consider a C or D curve breaker instead.
