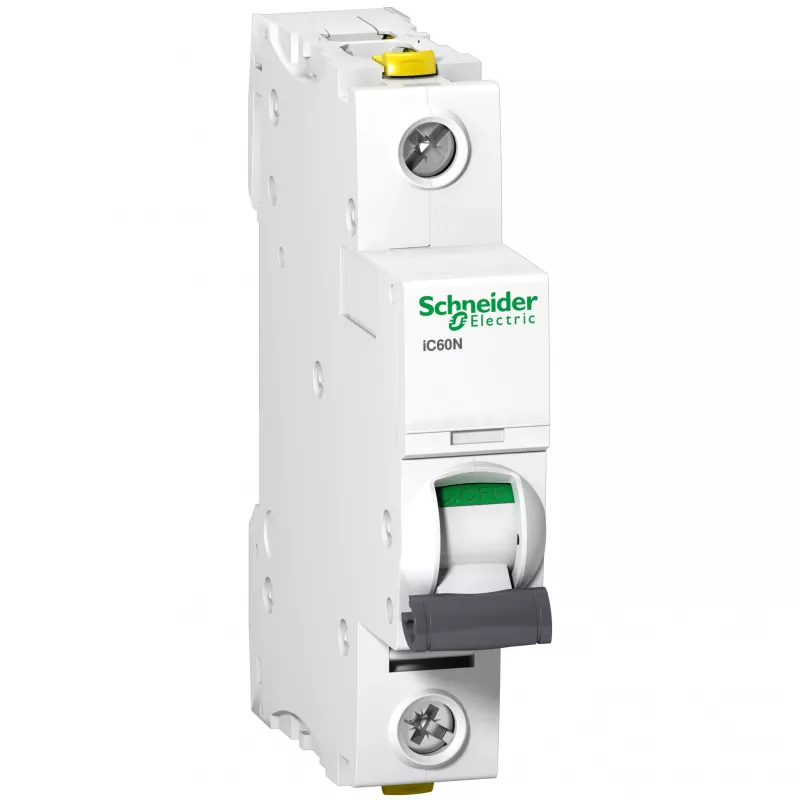

Schneider Electric A9F03110 Acti 9 iC60N istič 10A C-charakteristika 10kA 1P

The Schneider Electric A9F03110 is a high-performance miniature circuit breaker (MCB) from the Acti 9 iC60N series, designed for reliable protection of electrical circuits against overloads and short circuits. With a rated current of 10 A and a C tripping curve, it is ideal for general-purpose applications in residential, commercial, and industrial installations. This 1-pole breaker offers a breaking capacity of 10 kA at 230/400 V AC, ensuring robust performance under fault conditions.

Advantages

Compact design for DIN rail mounting, easy installation with tunnel-type terminals, and high electrical durability of 10,000 cycles. Complies with international standards IEC 60898-1 and IEC 60947-2, ensuring safety and reliability.

Suitable for

• Protection of lighting circuits, socket outlets, and small appliances
• Distribution boards in residential, commercial, and light industrial buildings
• Overcurrent and short-circuit protection in AC systems

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Series: Acti 9 iC60N
• Number of Poles: 1P
• Rated Current (In): 10 A
• Tripping Curve: C
• Breaking Capacity: 10 kA at 230/400 V AC (IEC 60898-1)
• Rated Voltage: 230/400 V AC
• Degree of Protection: IP20 (front face)
• Mounting: DIN Rail
• Terminal Capacity: 1-25 mm² (rigid), 1-16 mm² (flexible)
• Operating Temperature: -35 to 70 °C

Recommendations

For optimal performance, ensure proper sizing and installation by a qualified electrician. This MCB is suitable for use with Schneider Electric distribution boards and accessories.
