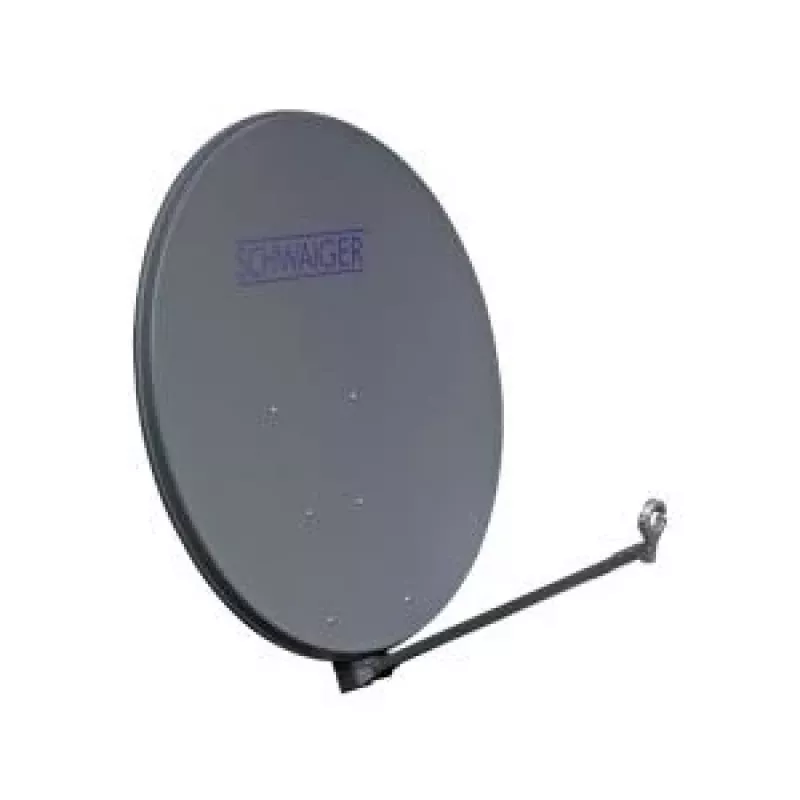

Schwaiger SPI1000.1 offset satelitná anténa 100 cm sivá

For reliable reception of Ku-band satellite signals, the Schwaiger SPI1000.1 offset satellite antenna offers a robust solution with a 100 cm aluminium reflector. Its grey powder-coated finish and galvanized steel back mount ensure durability against weather, while the 40 mm LNB holder and 32–76 mm mast clamp provide flexible installation options.

Who is it for

Home users and technicians seeking a high-gain antenna for single or multi-satellite reception in areas with moderate signal strength. Ideal for fixed installations on masts or walls where wind resistance up to 180 km/h is required.

Main features

• 100 cm offset reflector made of powder-coated aluminium for corrosion resistance and UV stability.
• Wide frequency range 10.7–12.75 GHz covers all common Ku-band satellites.
• High gain of approximately 40.0 dBi at 11.7 GHz ensures clear signal even in fringe areas.
• Galvanized steel back mount with mast clamp for diameters 32–76 mm.
• 40 mm LNB holder compatible with standard LNBs; linear polarization.
• Offset angle 26° and F/D ratio 0.6 for optimized signal focusing.

Specifications

• Reflector dimensions (W x H): 1000 x 1100 mm
• Product colour: Grey (RAL 7035)
• Material: Aluminium reflector, galvanized steel mount
• Frequency range: 10.7 - 12.75 GHz
• Gain: approx. 40.0 dB at 11.7 GHz
• Polarization: Linear
• Offset angle: 26°
• F/D ratio: 0.6
• LNB holder diameter: 40 mm
• Mast clamp diameter range: 32 - 76 mm
• Wind load resistance: up to 180 km/h
• Mounting type: Mast mount
• Corrosion protection: Powder-coated steel parts
• UV resistance: Yes

Tips

For best results, align the antenna precisely using a satellite finder and ensure the mast is perfectly vertical. The wide clamp range allows mounting on various pole sizes; use appropriate bolts and check tightness after strong winds.
