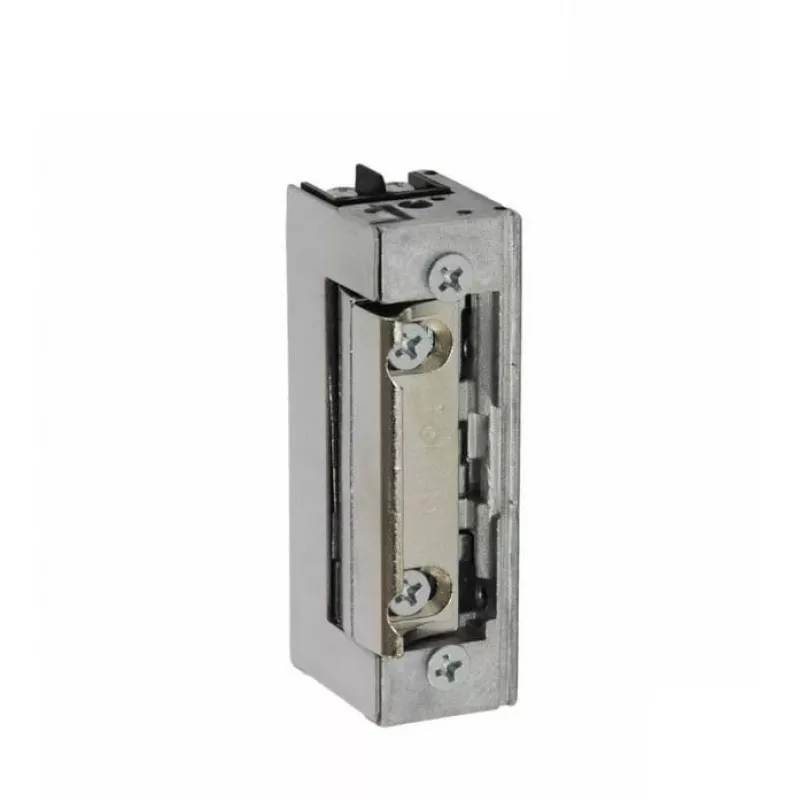

SCOT ES-S1224N symetrický elektrický otvárač s nízkou spotrebou

The SCOT ES-S1224N is a low-current symmetrical electric strike designed for standard (NC) operation. It is rated for heavy-duty use in public buildings and operates on 12-24V AC/DC with a holding force of 4000N.

Key features

• Symmetrical design
• Standard (NC) operation
• Usage category: Class 3 – heavy-duty conditions (public buildings)
• Power supply: 12-24V AC/DC
• Holding force: 4000N
• Max. preload on latch: 10N (DC) / 90N (AC)
• Current consumption: 12V AC: 250mA; 12V DC: 300mA; 24V AC: 510mA; 24V DC: 600mA
• Max. control signal duration: 12V DC: 100%; 12V AC: < 1min.; 24V AC/DC: <1min.
• Coil resistance: 40 Ω
• Power supply circuit protection: Transil
• Latch adjustment: 0-5 mm
• Operating temperature (ambient): -10°C ~ +60°C

Specifications

• Brand: SCOT
• MPN: ES-S1224N

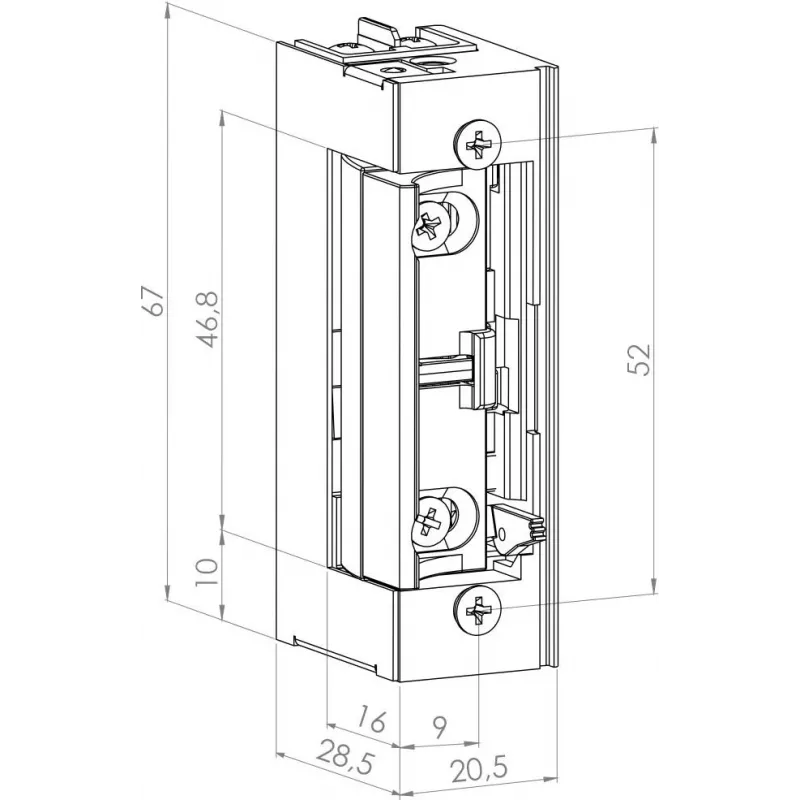

• Dimensions (H x W x D): 67 x 20.5 x 28.5 mm
